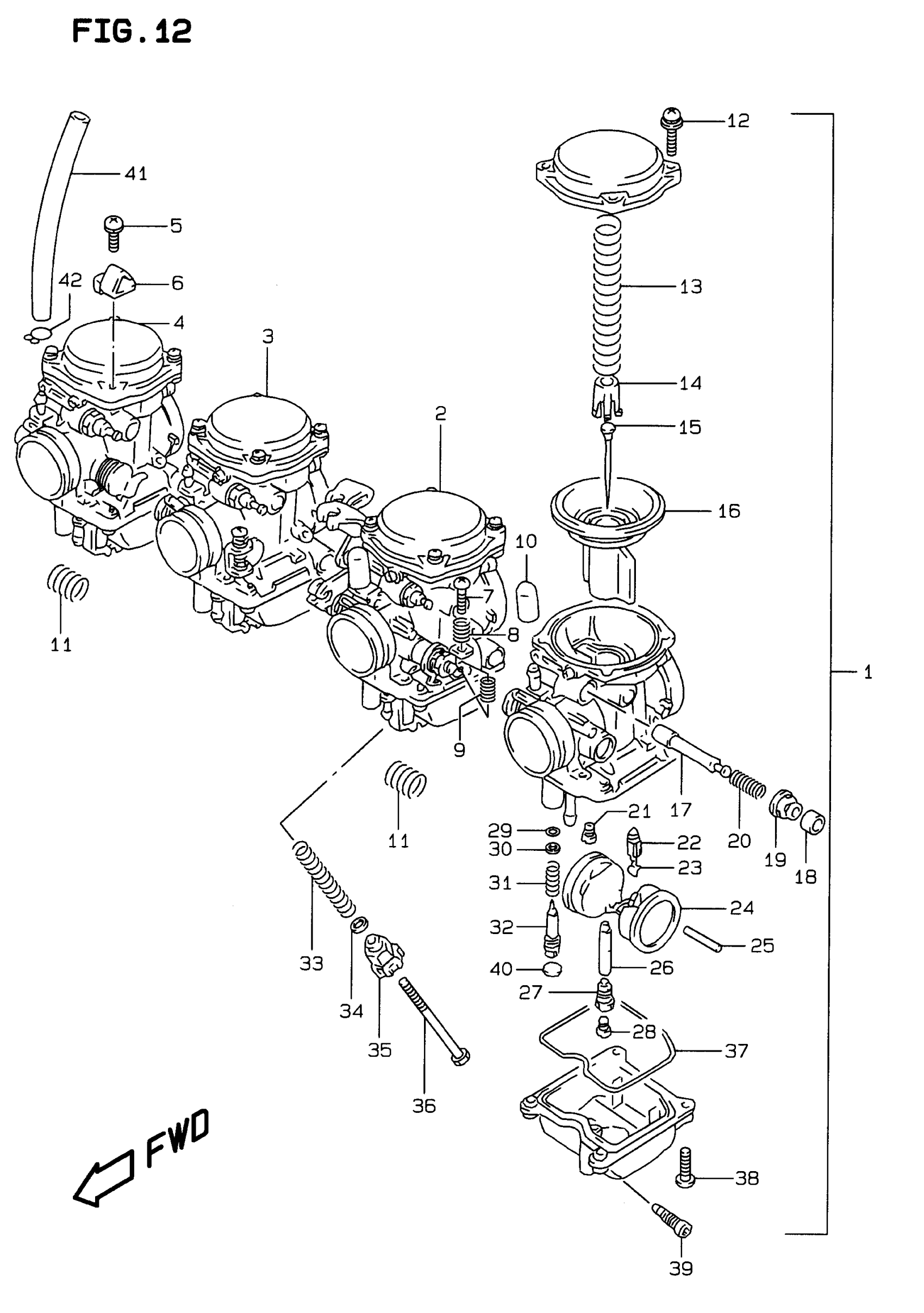

Suzuki GSF600S-BANDIT (1999) CARBURETOR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | E3 This part replaces 13201-26E10.

13201-26E11

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL T E28 This part replaces 13201-26E00.

13201-26E01

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL V/W/X E28 This part replaces 13201-26E10.

13201-26E11

Unavailable

1

NO DESCRIPTION AVAILABLE | E33 This part replaces 13201-26E50.

13201-26E51

Unavailable

2

NO DESCRIPTION AVAILABLE | E3 This part replaces 13202-26E10.

13202-26E11

Unavailable

2

CARBURETOR ASSY, ML | MODEL T E28

13202-26E00

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL V/W/X E28 This part replaces 13202-26E10.

13202-26E11

Unavailable

2

NO DESCRIPTION AVAILABLE | E33 This part replaces 13202-26E50.

13202-26E51

Unavailable

3

NO DESCRIPTION AVAILABLE | E3 This part replaces 13203-26E10.

13203-26E11

Unavailable

3

CARBURETOR ASSY | MODEL T E28 This part replaces 13203-26E00.

13203-26E01

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL V/W/X E28 This part replaces 13203-26E10.

13203-26E11

Unavailable

3

NO DESCRIPTION AVAILABLE | E33 This part replaces 13203-26E50.

13203-26E51

Unavailable

4

NO DESCRIPTION AVAILABLE | E3 This part replaces 13204-26E10.

13204-26E11

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL T E28 This part replaces 13204-26E00.

13204-26E01

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL V/W/X E28 This part replaces 13204-26E10.

13204-26E11

Unavailable

4

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 5 - 42 This part replaces 13204-26E50.

13204-26E51

Unavailable

5

SCREW

13602-26E30

Unavailable

6

STAY, PLATE

13624-26E00

$17.58

7

SCREW

13267-26E10

Unavailable

8

SPRING

13271-26E10

Unavailable

9

SPRING

13268-26E10

$5.50

10

CAP This part replaces 13508-26E00.

13508-26E01

$5.17

11

SPRING

13271-26E20

Unavailable

12

SCREW | MODEL T/V This part replaces 13602-26E00.

02112-0416A

$1.49

12

SCREW | MODEL W/X This part replaces 02112-04163.

02112-0416A

$1.49

13

SPRING

13417-26E00

Unavailable

14

SEAT

13382-26E00

$15.35

15

JET NEEDLE | E3

13383-26E20

Unavailable

15

JET NEEDLE | MODEL T E28

13383-26E00

Unavailable

15

JET NEEDLE | MODEL V/W/X E28

13383-26E20

Unavailable

15

JET NEEDLE | E33

13383-26E30

Unavailable

16

PISTON This part replaces 13500-26E00.

13500-26E90

Unavailable

17

VALVE, STARTER

13411-26E00

Unavailable

18

CAP

13419-26E00

Unavailable

19

CAP

13418-26E00

Unavailable

20

SPRING

13417-26E10

Unavailable

21

JET, SLOW (35)

09492-35020

$17.02

22

VALVE ASSY, NEEDLE

13370-26E00

$21.10

23

CLIP

13375-26E00

$5.44

24

FLOAT ASSY

13250-26E00

$55.41

25

PIN, FLOAT

13254-26E00

$4.43

26

NEEDLE JET | E3,E33

09494-00869

$33.45

26

NEEDLE JET | MODEL T E28

09494-00863

Unavailable

26

NEEDLE JET | MODEL V/W/X E28

09494-00869

$33.45

27

HOLDER, NEEDLE JET

13331-26E00

$26.33

28

JET, MAIN (98) | #1,#4

09491-98008

Unavailable

28

JET, MAIN (100) | #2,#3

09491-20023

Unavailable

29

O RING

13295-26E00

$4.34

30

WASHER

13291-26E00

$2.93

31

SPRING

13268-26E00

$5.20

32

SCREW, ADJUST | E3 This part replaces 13279-26E10.

13279-03FA0

$11.38

32

SCREW, ADJUST (1 7/8) | MODEL T E28

13279-26E00

$11.83

32

SCREW, ADJUST | MODEL V/W/X E28E33 This part replaces 13279-26E10.

13279-03FA0

$11.38

33

SPRING

13271-26E00

Unavailable

34

WASHER

13427-26E00

$3.70

35

ADJUST HOLDER

13269-26E00

Unavailable

36

BOLT

13267-26E00

Unavailable

37

O RING

13258-26E00

$8.91

38

SCREW

13602-26E10

$4.62

39

DRAIN, PLUG

13247-26E00

$18.02

40

CAP | E3,E33MODEL V/W/X E28

13281-26E00

$5.52

41

.HOSE | L:600?250 This part replaces 09352-50903-600.

09352-50006-600

$7.48

42

CLIP

13671-26E00

Unavailable
