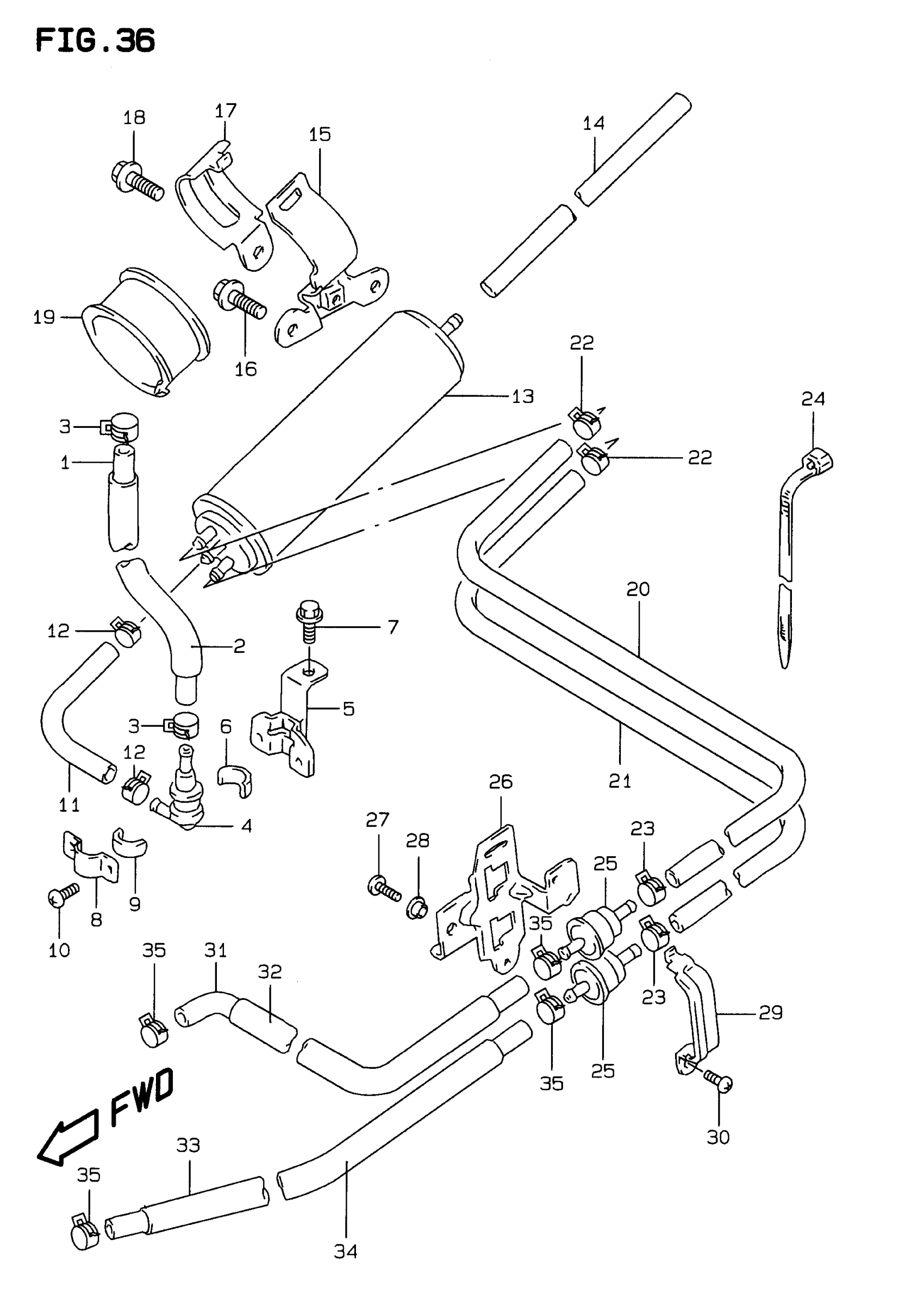

Suzuki GSF600S-BANDIT (1999) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, TANK & BREATHER VALVE | L:600?250,MODEL T This part replaces 09354-54115-600.

09355-54115-600

$14.59

1

HOSE, TANK & VALVE | L:600?250,MODEL V/W/X

09355-54116-600

$12.06

2

PROTECTOR | L:600?200

09351-14152-600

$10.62

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

BRACKET, BREATHER VALVE | Includes Item(s) 6

44890-26E00

Unavailable

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

8

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 9

44892-24A00

$4.52

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

11

HOSE, TANK & BREATHER VALVE | L:600?350,MODEL T This part replaces 09354-54115-600.

09355-54115-600

$14.59

11

HOSE, VALVE & CANISTER | L:600?360,MODEL V/W/X

09355-54116-600

$12.06

12

CLIP

09401-11413

$2.26

13

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

14

HOSE,6.5X11.5X6 | L:600?500,MODEL T This part replaces 09354-70123-600.

44421-12FR0

$12.33

14

HOSE,6.5X11.5X6 | L:600?500,MODEL V/W/X This part replaces 09355-70125-600.

44421-12FR0

$12.33

15

BRACKET, CANISTER

44881-26E00

Unavailable

16

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

17

HOLDER, CANISTER

44882-26E00

Unavailable

18

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

19

CUSHION CANISTER

44883-26E00

Unavailable

20

HOSE, PURGE NO.1 | L:600?370

09359-54111-600

$25.80

21

HOSE, PURGE NO.2 | L:600?400

09359-54111-600

$25.80

22

CLIP This part replaces 09401-11407.

09401-11415

$2.23

23

CLIP

09401-11413

$2.26

24

CLAMP

09407-14403

$2.26

24

CLAMP

09407-18402

$2.19

25

VALVE, PURGE

44250-48B00

Unavailable

26

BRACKET, PURGE VALVE

44885-26E00

Unavailable

27

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

28

WASHER This part replaces 09169-05021.

09169-05024

$2.06

29

HOLDER, PURGE VALVE

44884-31E00

Unavailable

30

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

31

HOSE, TANK & BREATHER VALVE | L:600?340,MODEL T This part replaces 09354-54115-600.

09355-54115-600

$14.59

31

HOSE, CARB NO.1 | L:600?340,MODEL V/W/X

09355-54115-600

$14.59

32

PROTECTOR, NO.1 | L:600?290

09351-14152-600

$10.62

33

HOSE, TANK & BREATHER VALVE | L:600?500,MODEL T This part replaces 09354-54115-600.

09355-54115-600

$14.59

33

HOSE, CARB NO.2 | L:600?500,MODEL V/W/X

09355-54115-600

$14.59

34

PROTECTOR NO.2 | L:600?450

09351-14152-600

$10.62

35

CLIP

09401-11413

$2.26
