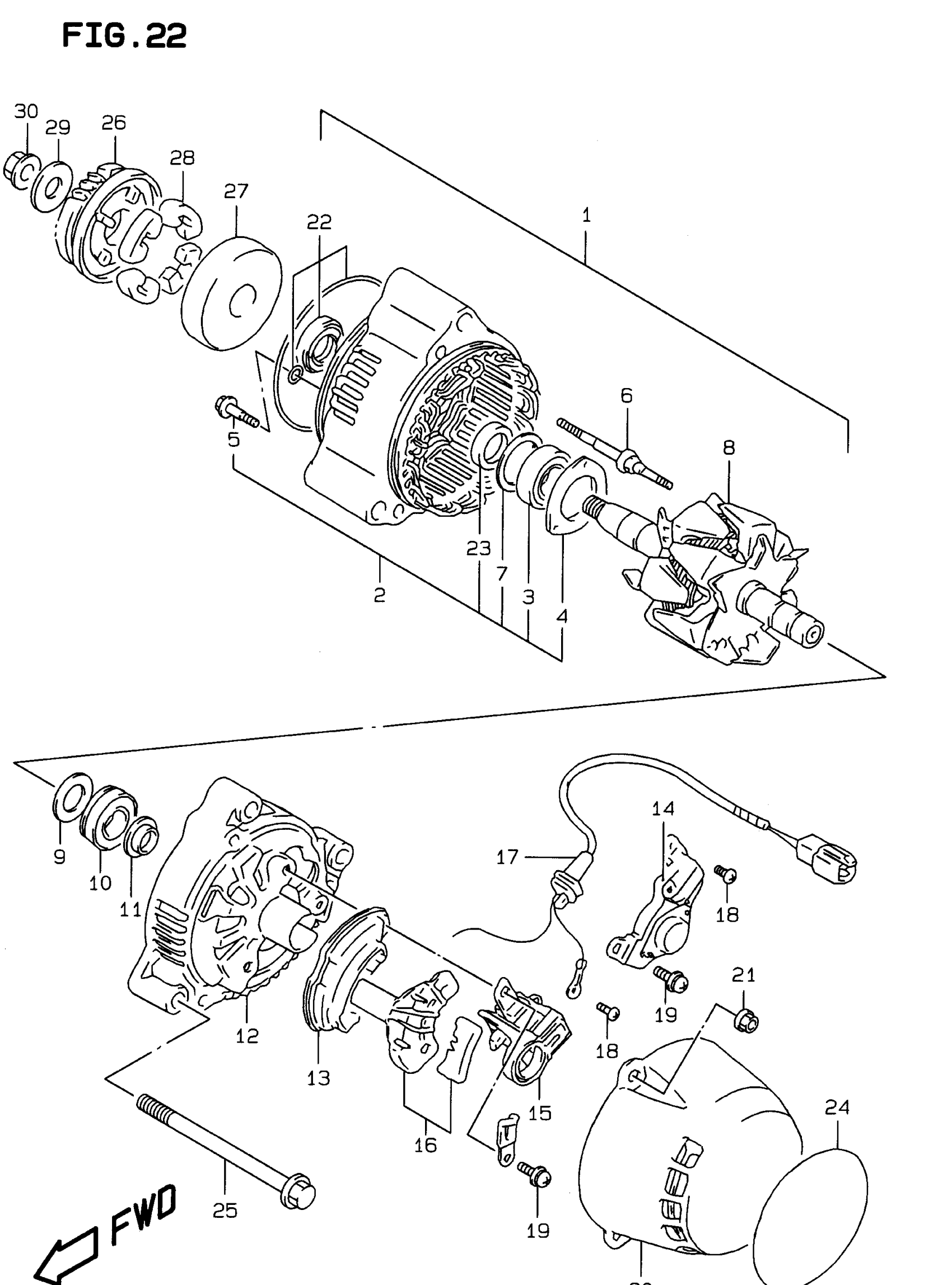

Suzuki GSF600S-BANDIT (1999) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | Includes Item(s) 2 - 24

31400-17C04

Unavailable

2

FRAME, DRIVE END

31580-48B00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

RETAINER

31585-48B00

Unavailable

5

SCREW, BEARING RETAINER

31586-48B00

Unavailable

6

STUD BOLT

31587-85250

Unavailable

7

COVER, BEARING

31613-48B00

Unavailable

8

ROTOR ASSY

31710-48B04

Unavailable

9

COVER (1)

31613-82610

Unavailable

10

BEARING

31612-48B00

$47.07

11

COVER (2)

31613-27A10

Unavailable

12

FRAME, END

31611-48B00

Unavailable

13

HOLDER, RECTIFIER

31621-27A00

Unavailable

14

REGULATOR

32500-27A00

Unavailable

15

HOLDER, BRUSH

31656-48B00

Unavailable

16

COVER, RECTIFIER

31687-17E00

$6.88

17

LEAD WIRE

31480-48B00

Unavailable

18

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

19

SCREW (5X17)

31688-27A00

Unavailable

20

COVER

31614-48B00

Unavailable

21

NUT This part replaces 08316-10053.

08316-1005A

$2.19

22

OIL SEAL SET

31780-27X50

$53.82

23

SPACER

31776-06B00

Unavailable

24

PLATE, ALTERNATOR ABSORBER This part replaces 31615-17C00.

31615-27E00

Unavailable

25

BOLT This part replaces 01550-08903.

01550-0890B

$5.37

26

GEAR, GENERATOR DRIVEN (NT:30) | MODEL T/V This part replaces 22730-19C01.

22730-19C02

Unavailable

26

GEAR, GENERATOR DRIVEN (NT:30) | MODEL W/X

22730-19C02

Unavailable

27

HOUSING DAMPER | MODEL T/V This part replaces 22733-27A04.

22733-27A05

Unavailable

27

HOUSING, DAMPER | MODEL W/X

22733-27A05

Unavailable

28

DAMPER

21231-06B00

$4.64

29

WASHER

08211-10283

$3.78

30

NUT This part replaces 08316-20103.

08316-2010B

$3.43
