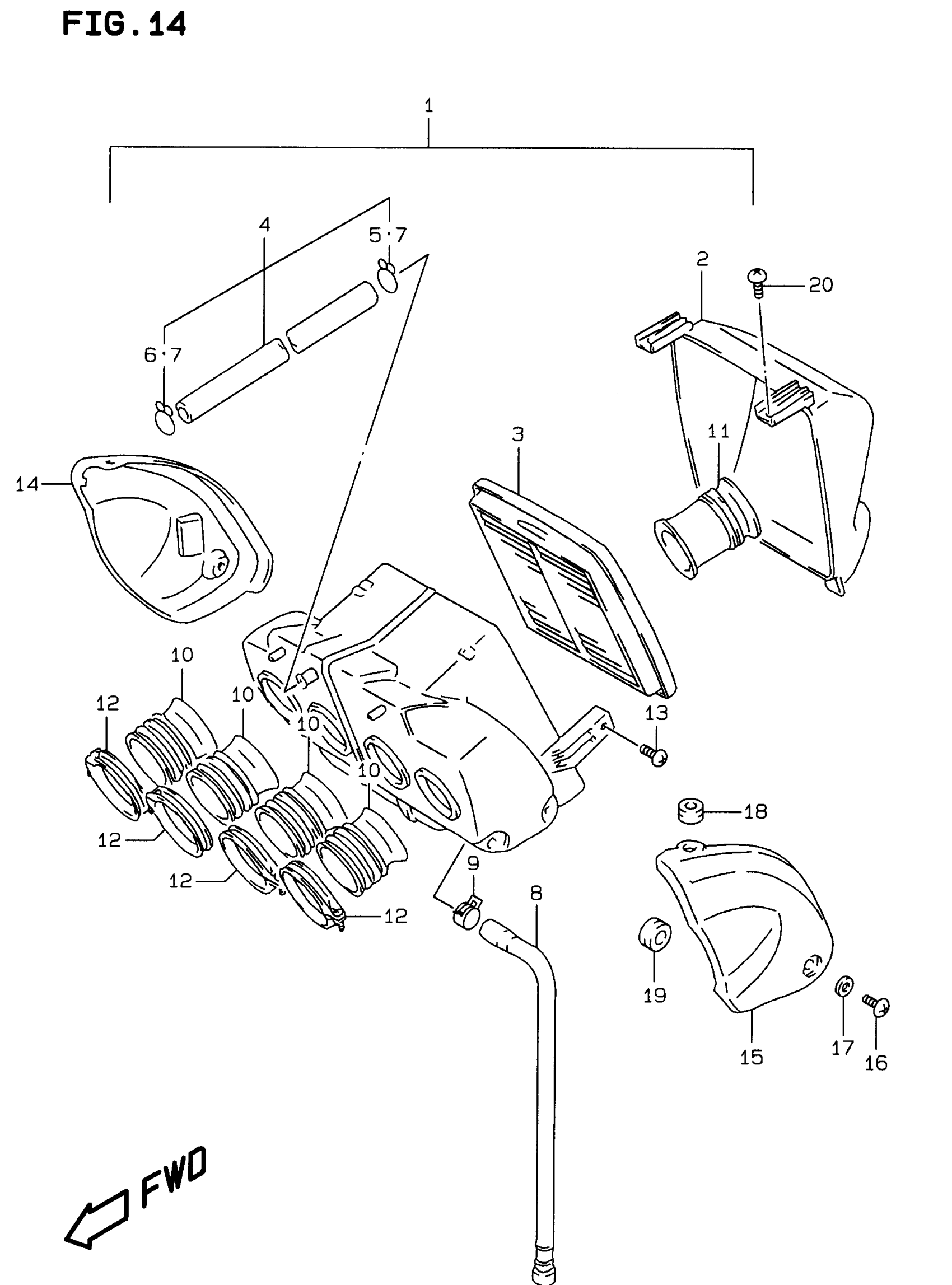

Suzuki GSF600S-BANDIT (1999) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-26E00

Unavailable

1

CLEANER ASSY, AIR | E33; Includes Item(s) 2 - 13

13700-26E10

Unavailable

2

CAP, AIR CLEANER

13740-17E02

$60.02

3

FILTER, AIR

13780-17E00

$50.38

4

TUBE,BREATHER This part replaces 13850-27E00.

13850-27E01

$20.12

4

TUBE, BREATHER | E33

13850-26E10

Unavailable

5

CLIP

09401-14301

$2.35

6

CLIP

09401-16401

$3.14

7

CLIP | E33

09401-14301

$2.35

8

TUBE,DRAIN This part replaces 13870-21458.

13870-21459

$23.68

9

CLAMP | MODEL T/V This part replaces 09401-13413.

09401-13417

$2.26

9

CLIP | MODEL W/X

09401-13417

$2.26

10

TUBE,OUTLET This part replaces 13881-26E00.

13881-26E01

$24.08

11

TUBE,INLET This part replaces 13891-17E00.

13891-17E01

$27.00

12

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

13

SCREW

02142-05127

$1.97

14

NO DESCRIPTION AVAILABLE | MODEL T/V This part replaces 13910-26E00.

13910-26E01

Unavailable

14

COVER COMP,AIR | MODEL W/X This part replaces 13910-27E00.

13910-27E01

Unavailable

15

COVER,AIR CLEAN | MODEL T/V This part replaces 13920-26E00.

13920-26E01

Unavailable

15

COVER COMP,AIR | MODEL W/X This part replaces 13920-27E00.

13920-27E01

Unavailable

16

SCREW, COVER (5X14)

09139-05025

$2.05

17

WASHER, COVER (5.3X15X1.2)

09169-05013

Unavailable

18

CUSHION | MODEL T/V This part replaces 09320-05006.

09320-06504

$4.96

18

GROMMET, COVER | MODEL W/X

09320-06504

$4.96

19

GROMMET, AIR CLEANER

09320-08018

$3.04

20

SCREW This part replaces 02142-06123.

02142-0612A

$1.49
