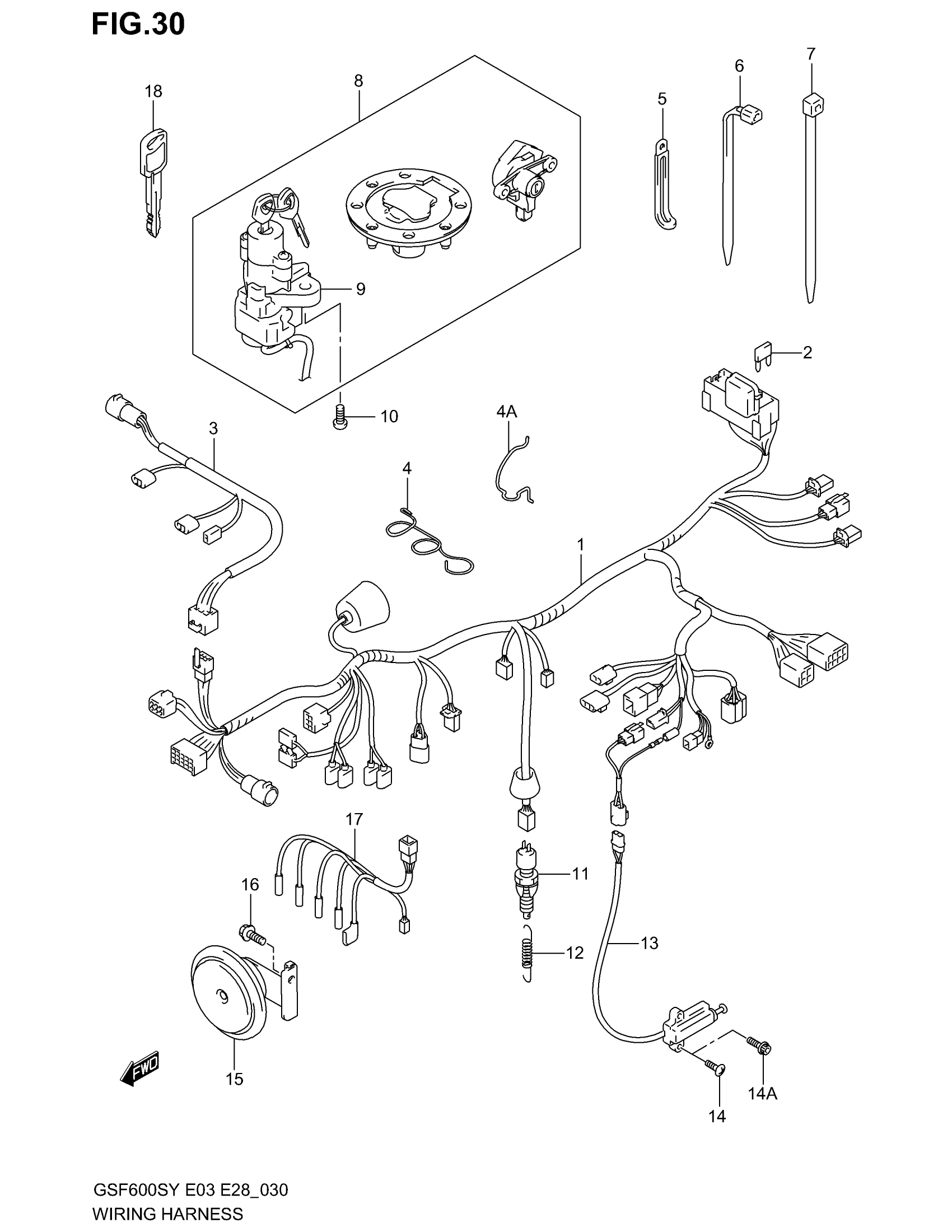

Suzuki GSF600S (2003) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL Y/K1

36610-31F60

Unavailable

1

HARNESS, WIRING | MODEL K2/K3; Includes Item(s) 2 - 2

36610-31FE0

Unavailable

2

FUSE (10A)

09481-10501

$2.06

2

FUSE (15A)

09481-15501

$2.02

3

HARNESS, WIRING NO.2

36620-31F50

Unavailable

4

GUIDE, WIRING HARNESS

36619-31F00

Unavailable

4A

GUIDE, WIRING HARNESS

36619-31F10

Unavailable

5

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

5

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

6

CLAMP (L:75)

09407-11402

$1.80

6

CLAMP (L:125)

09407-14403

$2.26

6

CLAMP (L:165)

09407-18402

$2.19

7

CLAMP (L:145)

09407-14407

$3.57

8

LOCK SET

37103-33890

$573.20

8

LOCK SET | E33; Includes Item(s) 9

37104-33810

Unavailable

9

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$201.45

10

SCREW

09139-08016

$3.37

11

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

12

SPRING, STOP LAMP

09443-06054

$3.85

13

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$57.00

14

SCREW | MODEL Y/K1 This part replaces 02142-06203.

02142-0620A

$1.49

14A

BOLT, FRONT | MODEL K2/K3 This part replaces 07120-06203.

07120-0620B

$3.04

15

HORN ASSY, LOW PITCHED

38500-31F00

Unavailable

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

17

WIRE, CARB HEATER | OPT

36856-21E00

Unavailable

18

KEY, BLANK | OPT

37146-33E00

$21.21
