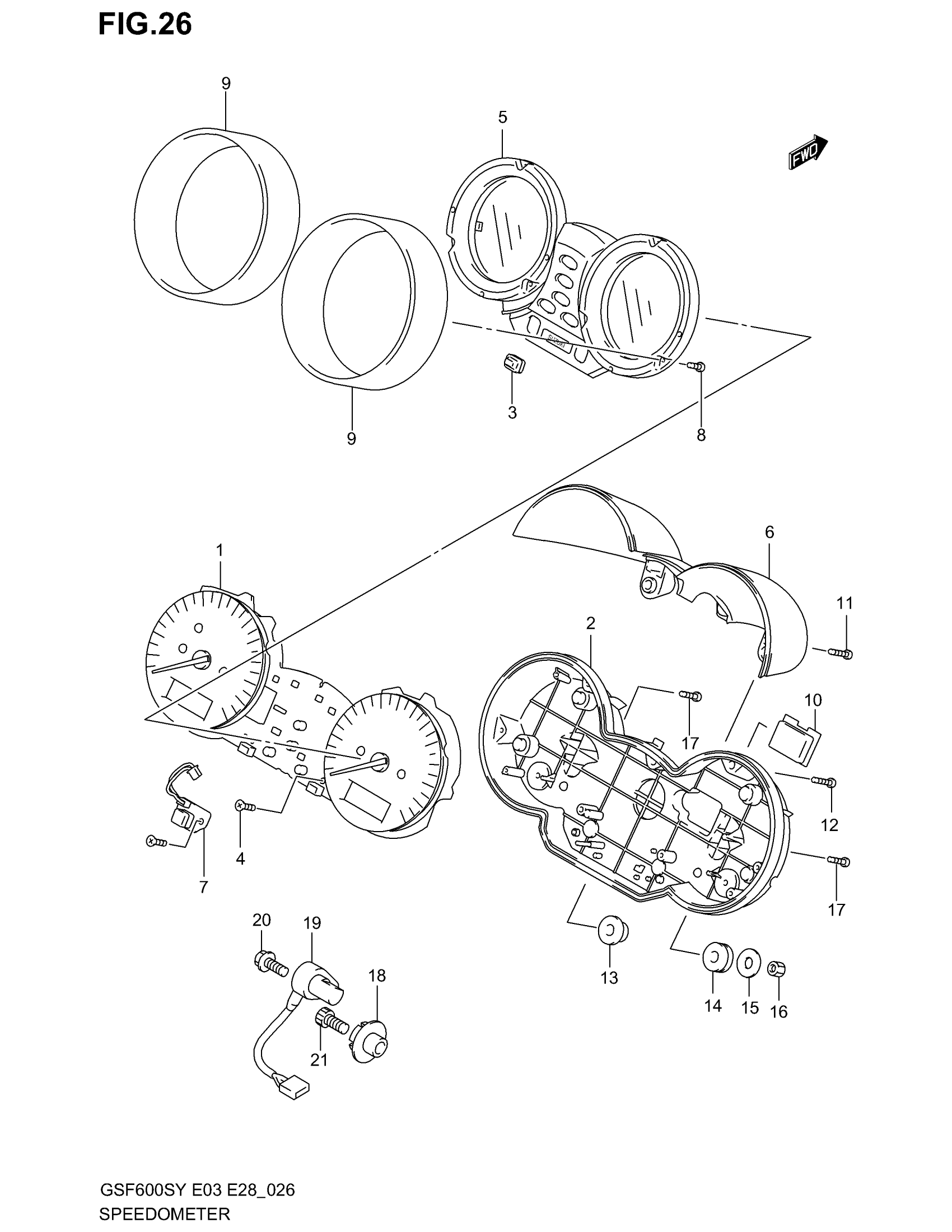

Suzuki GSF600S (2003) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL Y/K1

34120-31F20

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL K2/K3

34120-31FE0

Unavailable

1

SPEEDOMETER (KILO) | MODEL Y/K1 E28

34120-31F10

Unavailable

1

SPEEDOMETER (KILO) | MODEL K2/K3 E28

34120-31FD0

Unavailable

2

LOWER CASE ASSY | MODEL Y/K1

34111-31F10

$78.80

2

CASE ASSY,LOWER | MODEL K2/K3 This part replaces 34111-32F00.

34111-31F00

$78.80

3

RUBBER, SWITCH | MODEL Y/K1

34124-31F10

Unavailable

3

RUBBER, SWITCH | MODEL K2/K3

34124-32F00

$5.75

4

SCREW (4X14)

34149-17E10

$6.23

5

UPPER CASE ASSY | MODEL Y/K1

34150-31F30

Unavailable

5

UPPER CASE ASSY | MODEL K2/K3

34150-32F30

Unavailable

6

COVER

34152-31F30

Unavailable

7

SWITCH, PRINT CIRCUIT | MODEL Y/K1

34177-31F10

Unavailable

8

SCREW (2.3X8)

34183-31F10

$3.58

9

RING

34193-31F10

Unavailable

10

GROMMET

34198-19F20

Unavailable

11

SCREW, PAN HEAD (3X14)

34149-31F10

$4.10

12

SCREW (3X16)

09132-03008

$1.53

13

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

14

CUSHION, METER NO.1

34189-32B00

$5.78

15

WASHER, METER (5.5X16X1.20)

09160-05037

$1.49

16

NUT This part replaces 08310-00053.

08310-0005A

$1.84

17

SCREW (3X16)

34383-31F10

Unavailable

18

ROTOR,SPEED | MODEL Y %F.NO.JS1GN7AA Y2101109 This part replaces 34981-42E00.

34981-42E01

$17.42

18

ROTOR,SPEED | MODEL Y F.NO.JS1GN7AA Y2101110% This part replaces 34981-35F00.

34981-38G01

$17.92

18

ROTOR,SPEED | MODEL K1/K2/K3 This part replaces 34981-35F00.

34981-38G01

$17.92

19

SENSOR, SPEED | MODEL Y/K1 This part replaces 34990-33E10.

34990-35F00

$127.72

19

SENSOR, SPEED | MODEL K2/K3

34990-35F00

$127.72

20

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

21

BOLT | MODEL Y/K1 This part replaces 07130-08203.

07130-0820B

$3.49

21

BOLT | MODEL K2/K3 This part replaces 07130-08253.

07130-0825B

$3.37
