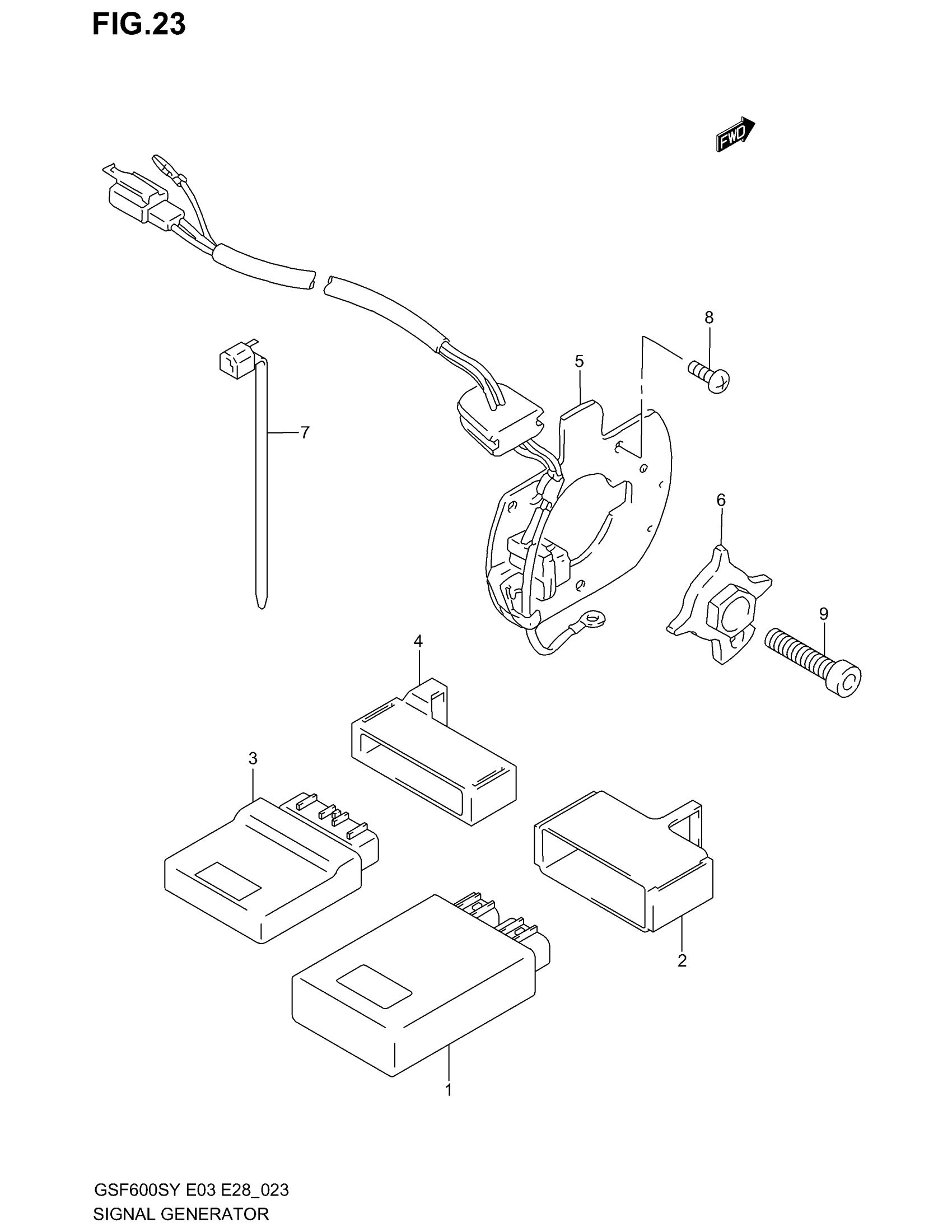

Suzuki GSF600S (2003) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER ASSY | MODEL Y/K1

32900-31F20

Unavailable

2

COVER, IGNITER | MODEL Y/K1

32980-40C01

$15.83

3

IGNITER ASSY | MODEL K2/K3

32900-31FB0

Unavailable

4

COVER, IGNITER | MODEL K2/K3

32980-41F00

Unavailable

5

STATOR,SIGNAL G This part replaces 33110-31F00.

33110-31F01

$323.92

6

ROTOR, SIGNAL GENERATOR

33120-19C20

$198.45

7

CLAMP, LEAD WIRE (L:125)

09407-14403

$2.26

8

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

9

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74
