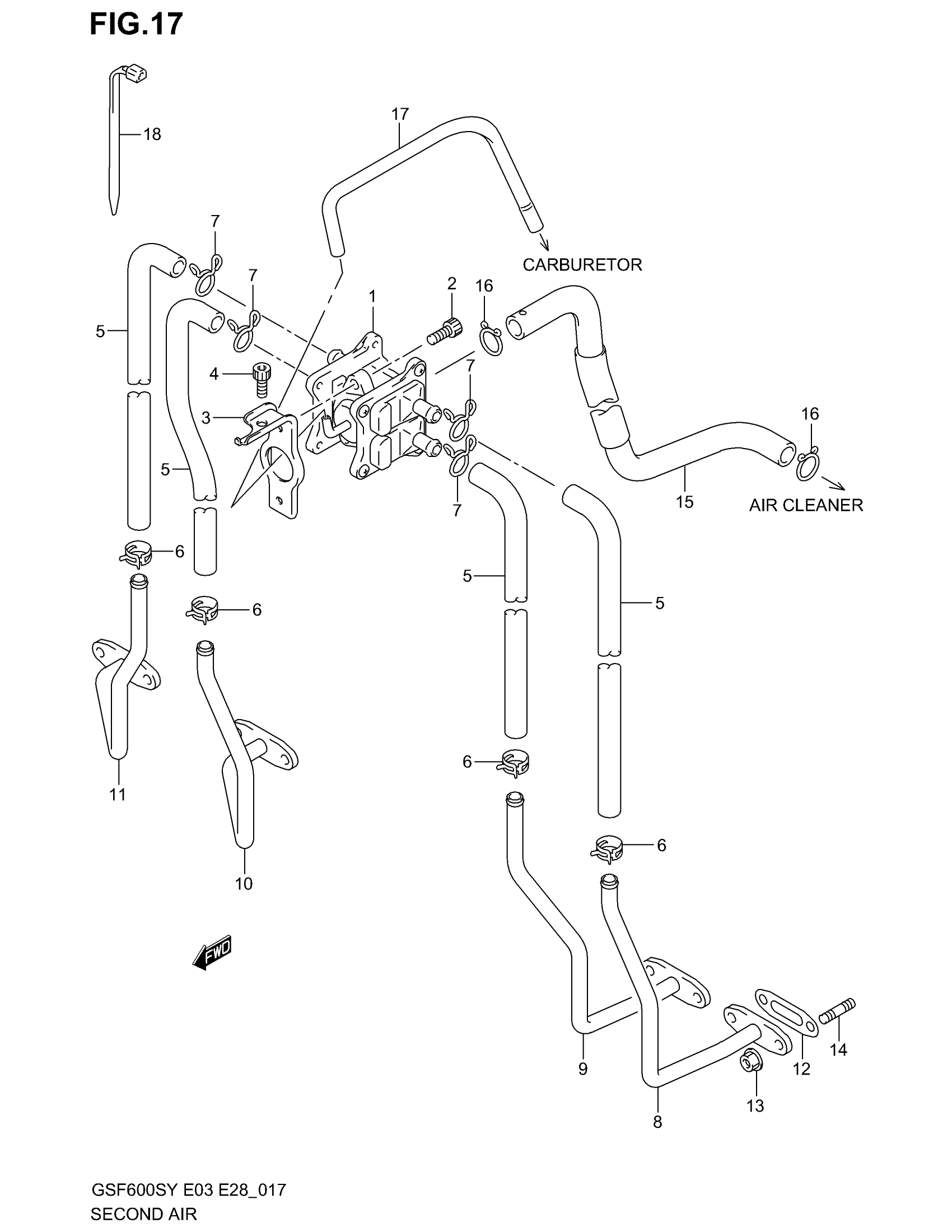

Suzuki GSF600S (2003) SECOND AIR Diagram

#

Description
Price

1

VALVE ASSY,2ND This part replaces 18450-33E12.

18450-33E13

$225.78

2

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

3

BRACKET, 2ND AIR

18610-31F00

Unavailable

4

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

5

HOSE, 2ND AIR VALVE

18461-31F00

Unavailable

6

CLIP, 2ND AIR HOSE PIPE

09401-13417

$2.26

7

CLIP

09401-13409

$2.12

8

PIPE, 2ND AIR NO.1

18410-31F00

Unavailable

9

PIPE, 2ND AIR NO.2

18420-31F00

Unavailable

10

PIPE, 2ND AIR NO.3

18430-31F00

Unavailable

11

PIPE, 2ND AIR NO.4

18440-31F00

Unavailable

12

GASKET

18441-17C11

$7.25

13

NUT This part replaces 08316-10063.

08316-1006B

$2.50

14

BOLT,STUD This part replaces 01421-06163.

01421-0616A

$1.91

15

HOSE, 2ND AIR CLEANER

18711-31F00

Unavailable

16

CLIP

09401-15101

$2.26

17

HOSE | L:600!280 This part replaces 09359-40701-600.

09359-40703-600

$9.60

18

CLAMP

09407-18402

$2.19
