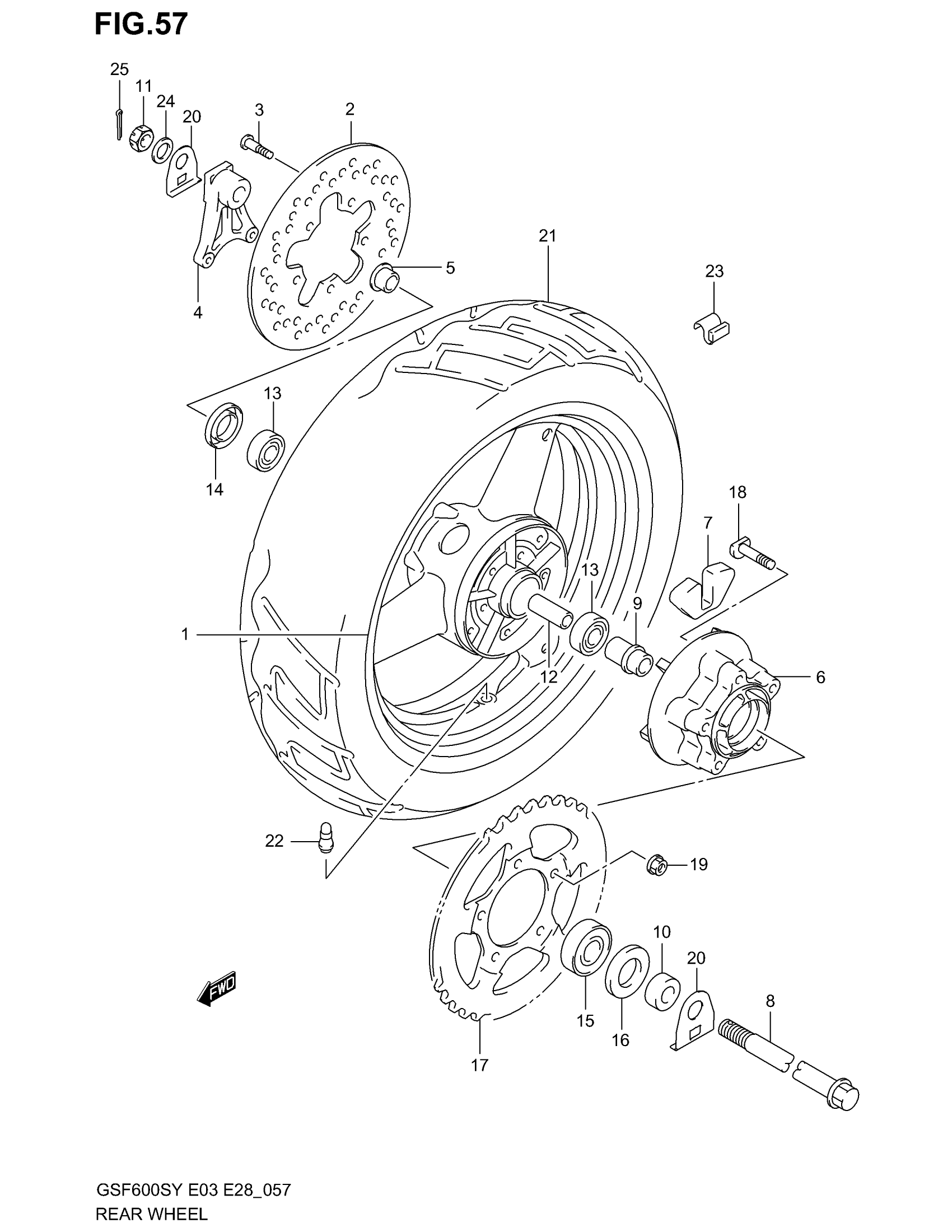

Suzuki GSF600S (2003) REAR WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Y/K1/K2 This part replaces 64111-08F10-35W.

64111-08F11-35W

Unavailable

1

WHEEL, REAR 17M/CXMT4.50 (BLACK) | MODEL K3 This part replaces 64111-08F10-019.

64111-08F11-019

Unavailable

2

DISC, REAR BRAKE

69211-21E00

$388.57

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

4

BRACKET, REAR CALIPER

69721-31F00

Unavailable

5

SPACER,RR AXLE,R

64741-22D00

$23.13

6

DRUM, SPROCKET MOUNTING

64611-33C00

Unavailable

7

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

8

AXLE, REAR

64711-21E10

Unavailable

9

RETAINER,RR HUB BEARING

64733-27A00

$26.93

10

SPACER, REAR AXLE LH

64751-26E00

$24.55

11

NUT

08314-40187

$5.64

12

SPACER (20.5X28X88)

09180-20062

$19.13

13

BEARING (20X47X14)

09262-20042

$23.28

14

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

15

BEARING (25X62X17)

09262-25073

$25.92

16

SEAL,OIL (35X62X8)

09285-35001

$10.19

17

SPROCKET, REAR (NT:47-530)

64511-20C11

$116.68

18

BOLT (10X47)

09119-10043

$4.26

19

NUT

08319-31107

$2.73

20

WASHER, CHAIN ADJUSTER

61445-26E00

$8.05

21

TIRE, REAR,160/60 ZR17(69W) (BRIDGESTONE)

65110-31F00

Unavailable

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

23

BALANCER, WHEEL (10G)

55411-00A00

$1.49

23

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$7.05

24

WASHER

09160-18030

$2.56

25

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
