Description

Price

1

EXHAUST This part replaces 14100-26E00.

14100-31F00

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BODY, MUFFLER

14310-31F00-H01

Unavailable

4

CONNECTOR, MUFFLER

14771-27E00

$42.03

5

BOLT (8X40) This part replaces 09118-08068.

09118-08145

$6.47

6

WASHER (8.5X33X1.5) This part replaces 09160-08140.

09160-08146

$2.60

7

SPACER, MUF SPRT,FR (L:24.2)

09180-08152

$5.83

8

SPACER, MUF SPRT,RR (L:28.5)

09180-08213

$8.50

9

CUSHION, MUF SPRT,FR

09320-12048

$5.11

10

CUSHION, MUF SPRT,RR

09320-12069

$13.53

11

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

12

BOLT, MUF SPRT,RR

09103-08358

$3.42

13

BOLT (8X25) This part replaces 09106-08104.

09106-08165

$4.03

14

NUT This part replaces 08361-25088.

08361-2508A

$1.97

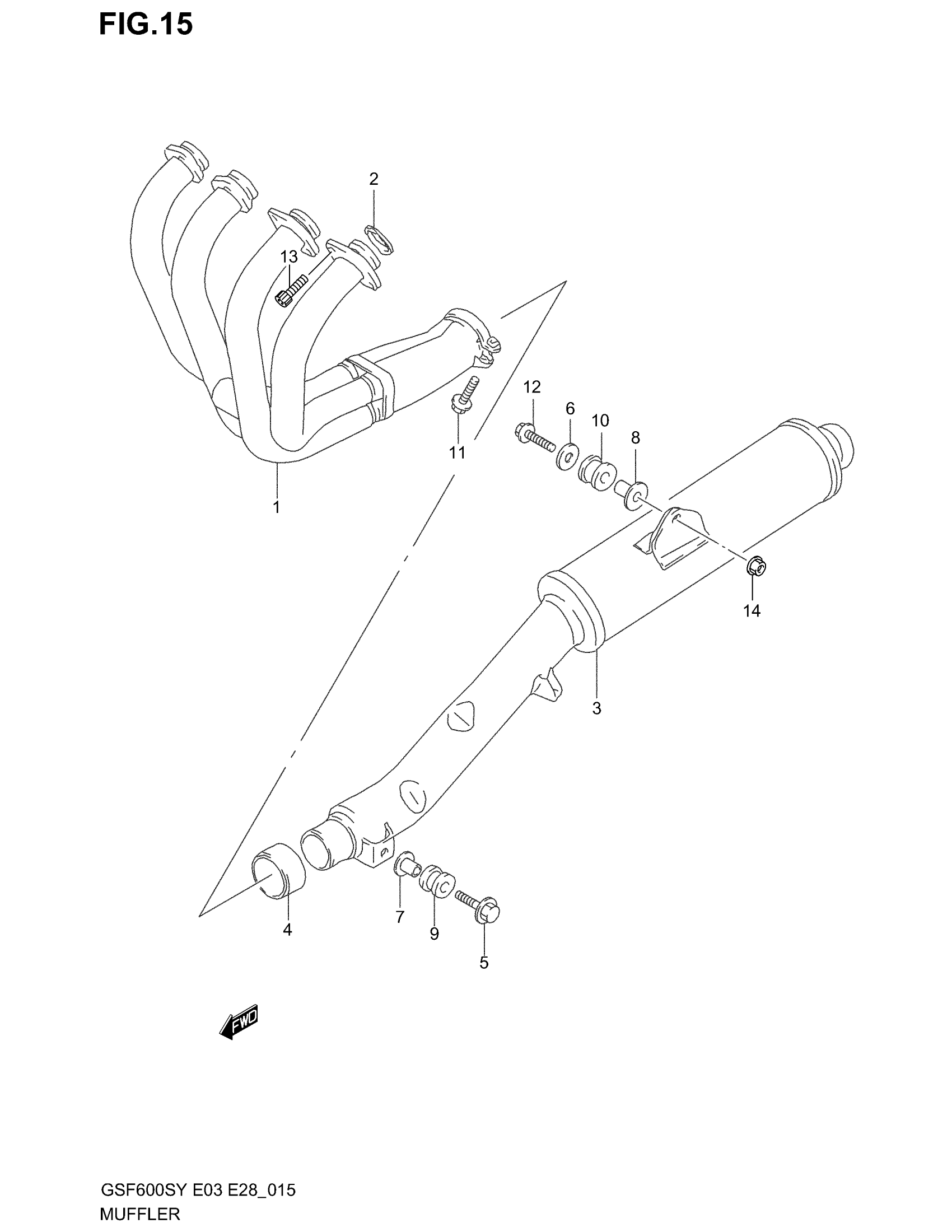

Suzuki GSF600S (2003) MUFFLER Diagram
