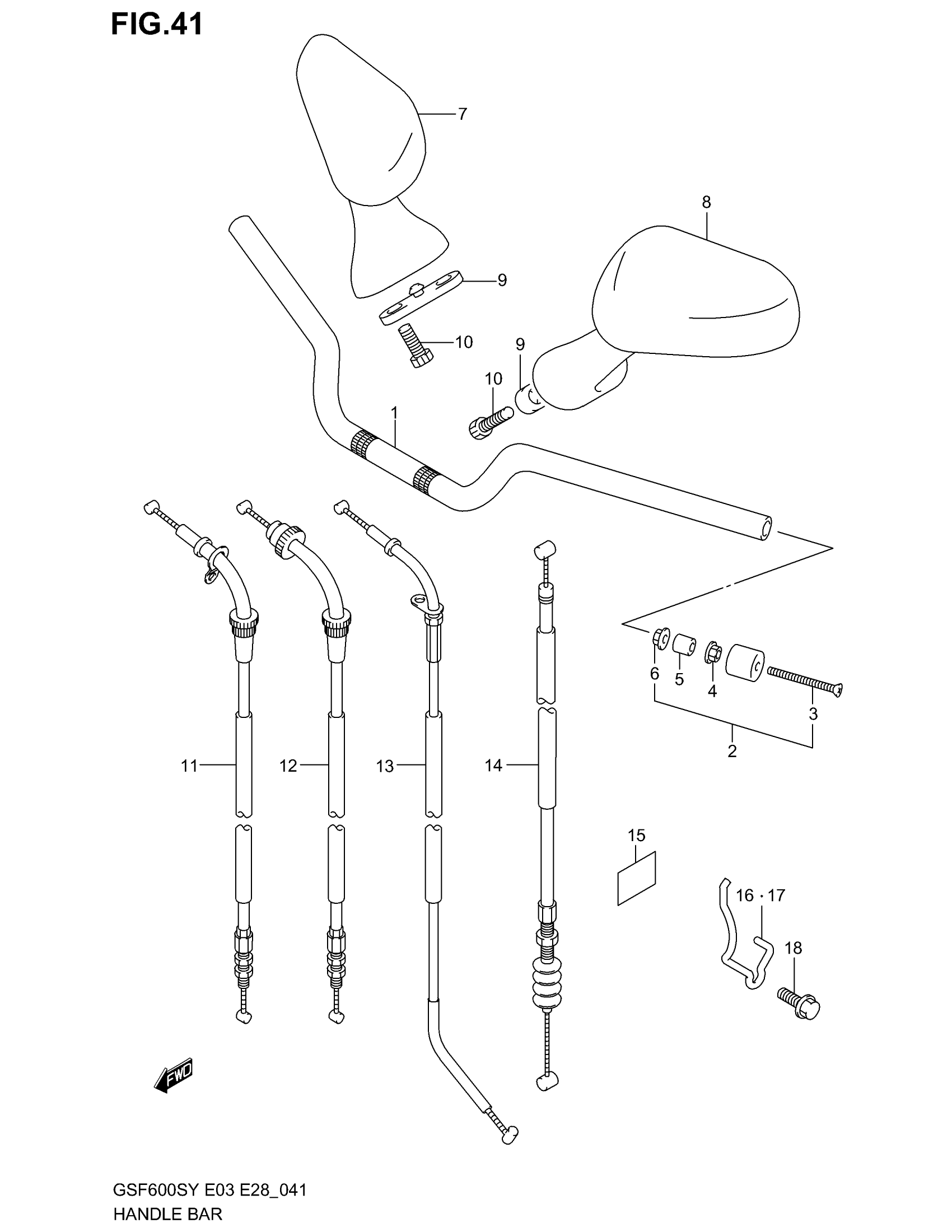

Suzuki GSF600S (2003) HANDLEBAR Diagram

HANDLEBAR | MODEL Y This part replaces 56111-31F00.

56111-31F01

$149.42

HANDLEBAR | MODEL K1/K2/K3

56111-31F01

$149.42

BALANCER SET,HA | Includes Item(s) 3 - 6 This part replaces 56200-31820.

56200-31821

$54.10

SCREW This part replaces 02122-06803.

02122-0680B

$3.72

NUT This part replaces 08316-10083.

08316-1008B

$2.66

EXPANDER

56272-44500

$4.42

NUT

09159-06024

$2.11

MIRROR ASSY, REAR VIEW RH

56500-31F00

$338.96

MIRROR ASSY,RR This part replaces 56600-31F00.

56600-31F01

$397.22

CUSHION, MIRROR

94576-31F00

$8.28

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

CABLE ASSY, THROTTLE,NO.1

58300-31F00

$32.32

CABLE ASSY, THROTTLE,NO.2

58300-31F10

$32.32

CABLE, STARTER

58410-31F00

$38.27

CABLE ASSY,CLUT This part replaces 58200-31F00.

58200-31F01

$26.48

PROTECTOR (30X40)

47261-48B00

Unavailable

GUIDE, WIRING HARNESS

36619-31F10

Unavailable

GUIDE, CABLE NO.2

58622-31F00

Unavailable

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
