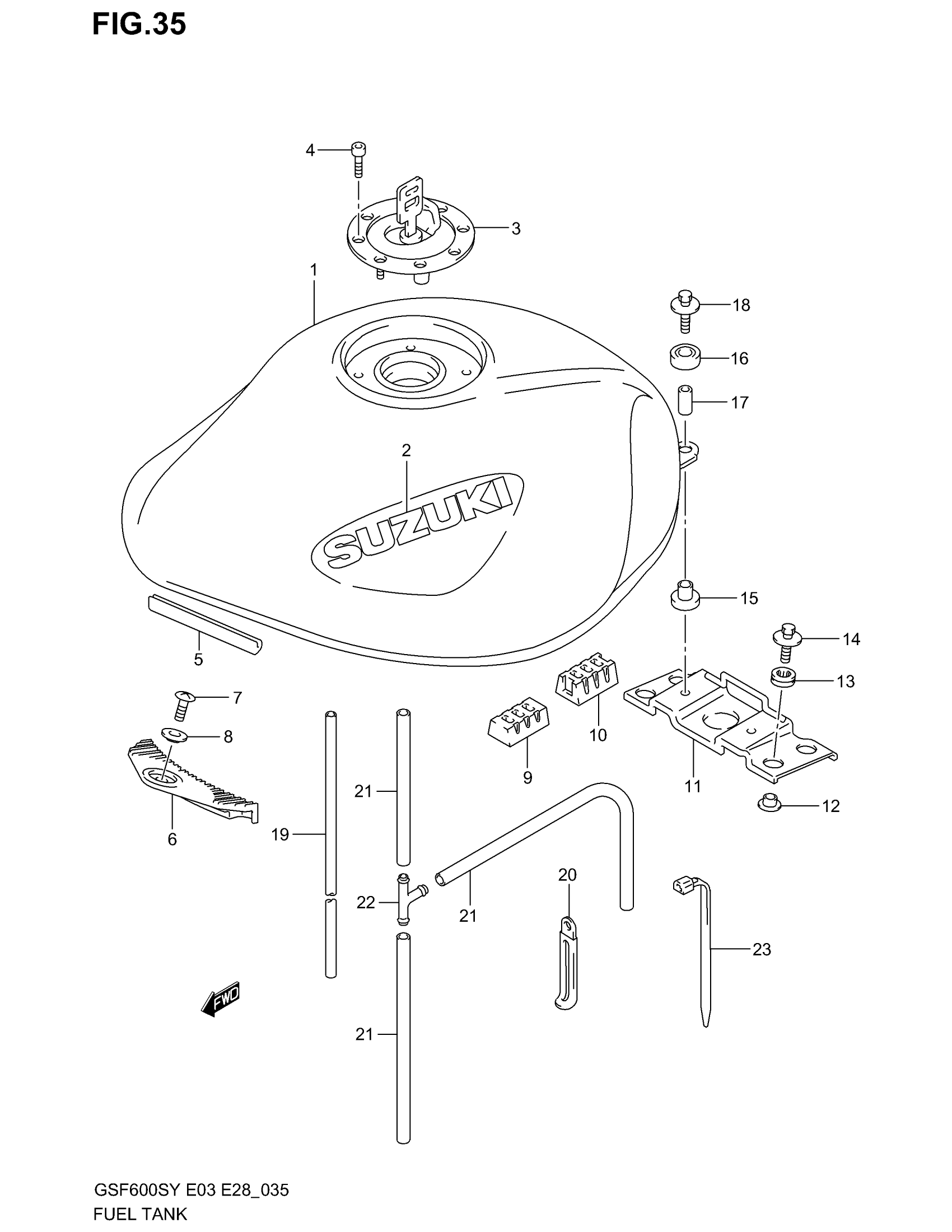

Suzuki GSF600S (2003) FUEL TANK (MODEL Y) Diagram

#

Description
Price

1

TANK ASSY, FUEL (RED) | E3,E28

44100-31F00-Y7M

Unavailable

1

TANK ASSY, FUEL (BLACK) | E3

44100-31F00-33J

Unavailable

1

TANK ASSY, FUEL (RED) | E33

44100-31F20-Y7M

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-31F20-33J

Unavailable

1

TANK ASSY, FUEL (BLUE) | E28; Includes Item(s) 2 - 2

44100-31F00-1LF

Unavailable

2

EMBLEM, FUEL TANK | E3,E33 FOR Y7M

68111-31F00-YJ7

Unavailable

2

EMBLEM, FUEL TANK | E3,E33 FOR 33J

68111-31F00-YJ8

Unavailable

2

EMBLEM,FUEL TAN | E28 FOR 1LF This part replaces 68111-31F00-YJ9.

68111-31F01-YJ9

Unavailable

3

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$254.92

3

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

$318.75

4

BOLT (L:20)

09106-05017

$2.83

5

MOLDING

68241-04X50-00B

$27.30

6

CUSHION, FUEL TANK FRONT

44511-27E00

$12.48

7

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

8

WASHER

09169-05012

$2.38

9

CUSHION, SIDE

45149-45330

$3.89

10

CUSHION, FUEL TANK SIDE

44541-31F00

$11.53

11

BRACKET, REAR This part replaces 44550-31F00.

44550-31F01

Unavailable

12

WASHER, LOWER

09169-06062

$2.50

13

CUSHION, BRACKET

09320-09009

$4.64

14

BOLT (6X25) This part replaces 09116-06146.

09116-06150

$2.59

15

CUSHION, LOWER

09320-10038

$2.61

16

CUSHION, UPPER

44512-42E00

$3.43

17

SPACER (6.5X9X18)

09180-06271

$2.35

18

BOLT (6X30)

09116-06172

$2.50

19

HOSE(7X11X2000) This part replaces 09352-70113-00B.

09352-70119-00B

$29.92

20

CLAMP

09404-10417

$2.72

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

22

.JOINT,3 WAY

09367-06002

$2.50

23

CLAMP

09407-14403

$2.26
