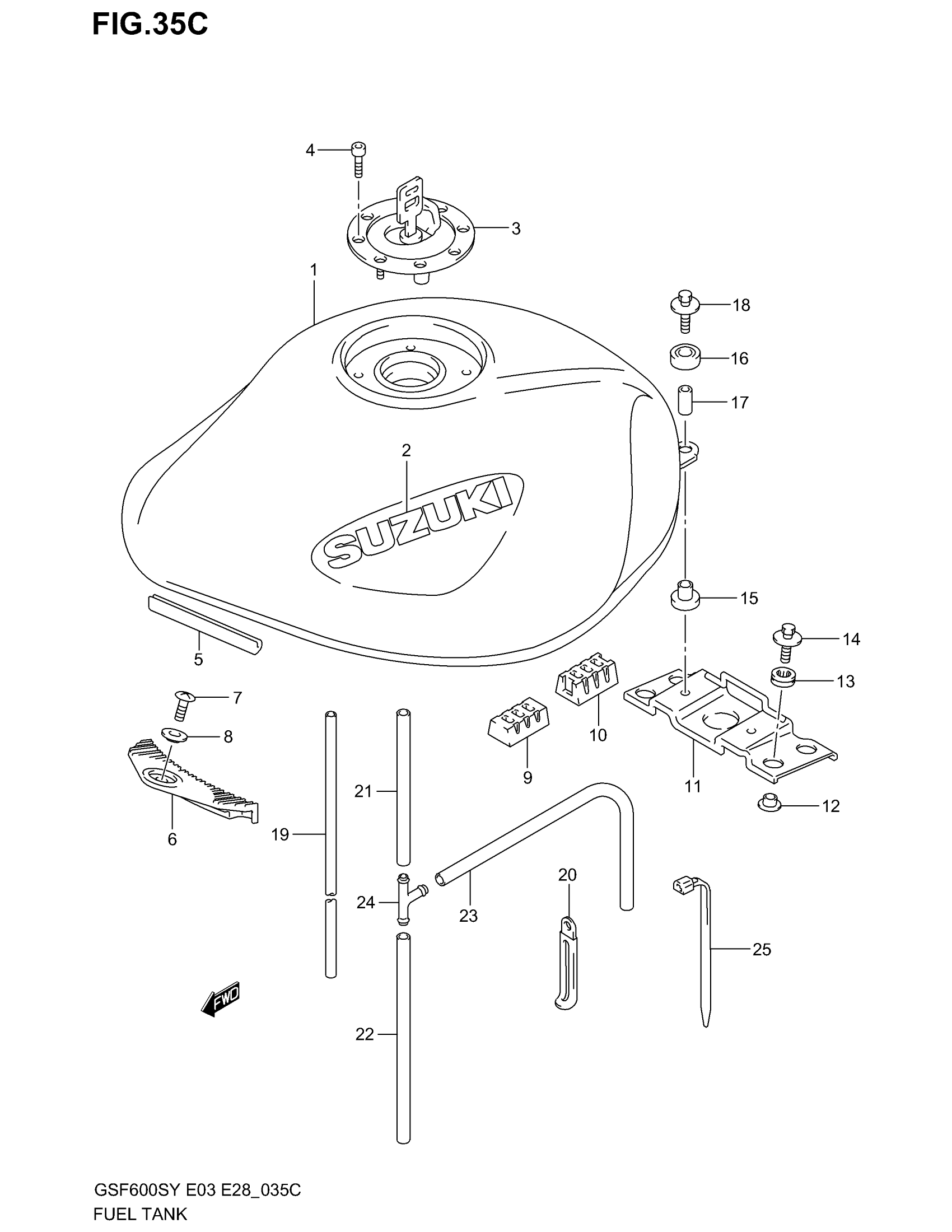

Suzuki GSF600S (2003) FUEL TANK (MODEL K3) Diagram

TANK ASSY, FUEL (SILVER) | E3,E28

44100-31F60-YMX

Unavailable

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-31F60-2JX.

44110-31F30-13L

Unavailable

TANK ASSY, FUEL (BLUE) | E3,E28

44100-31F60-YBA

Unavailable

TANK ASSY, FUEL (YELLOW) | E3,E28

44100-31F60-YU9

Unavailable

TANK ASSY, FUEL (SILVER) | E33

44100-31F70-YMX

Unavailable

TANK ASSY, FUEL (BLACK) | E33

44100-31F70-2JX

Unavailable

TANK ASSY, FUEL (BLUE) | E33

44100-31F70-YBA

Unavailable

TANK ASSY, FUEL (YELLOW) | E33; Includes Item(s) 2 - 2

44100-31F70-YU9

Unavailable

EMBLEM, FUEL TANK (GRAY) | FOR YMX

68111-31F00-17U

Unavailable

EMBLEM, FUEL TANK (SILVER) | FOR 2JX,YBA

68111-31F00-YD8

Unavailable

EMBLEM, FUEL TANK (GRAY) | FOR YU9

68111-31F00-20G

Unavailable

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$254.92

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

$318.75

BOLT (L:20)

09106-05017

$2.83

MOLDING

68241-04X50-00B

$27.30

CUSHION, FUEL TANK FRONT

44511-27E00

$12.48

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

WASHER

09169-05012

$2.38

CUSHION, SIDE

45149-45330

$3.89

CUSHION, FUEL TANK SIDE

44541-31F00

$11.53

BRACKET, REAR

44550-31F01

Unavailable

WASHER, LOWER

09169-06062

$2.50

CUSHION, BRACKET

09320-09009

$4.64

BOLT (6X25) This part replaces 09116-06146.

09116-06150

$2.59

CUSHION, LOWER

09320-10038

$2.61

CUSHION, UPPER

44512-42E00

$3.43

SPACER (6.5X9X18)

09180-06271

$2.35

BOLT (6X30)

09116-06172

$2.50

HOSE(7X11X2000) This part replaces 09352-70113-00B.

09352-70119-00B

$29.92

CLAMP

09404-10417

$2.72

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

.JOINT,3 WAY

09367-06002

$2.50

CLAMP

09407-14403

$2.26
