2003 Suzuki GSF600S Fuel Tank Diagram

← All diagrams

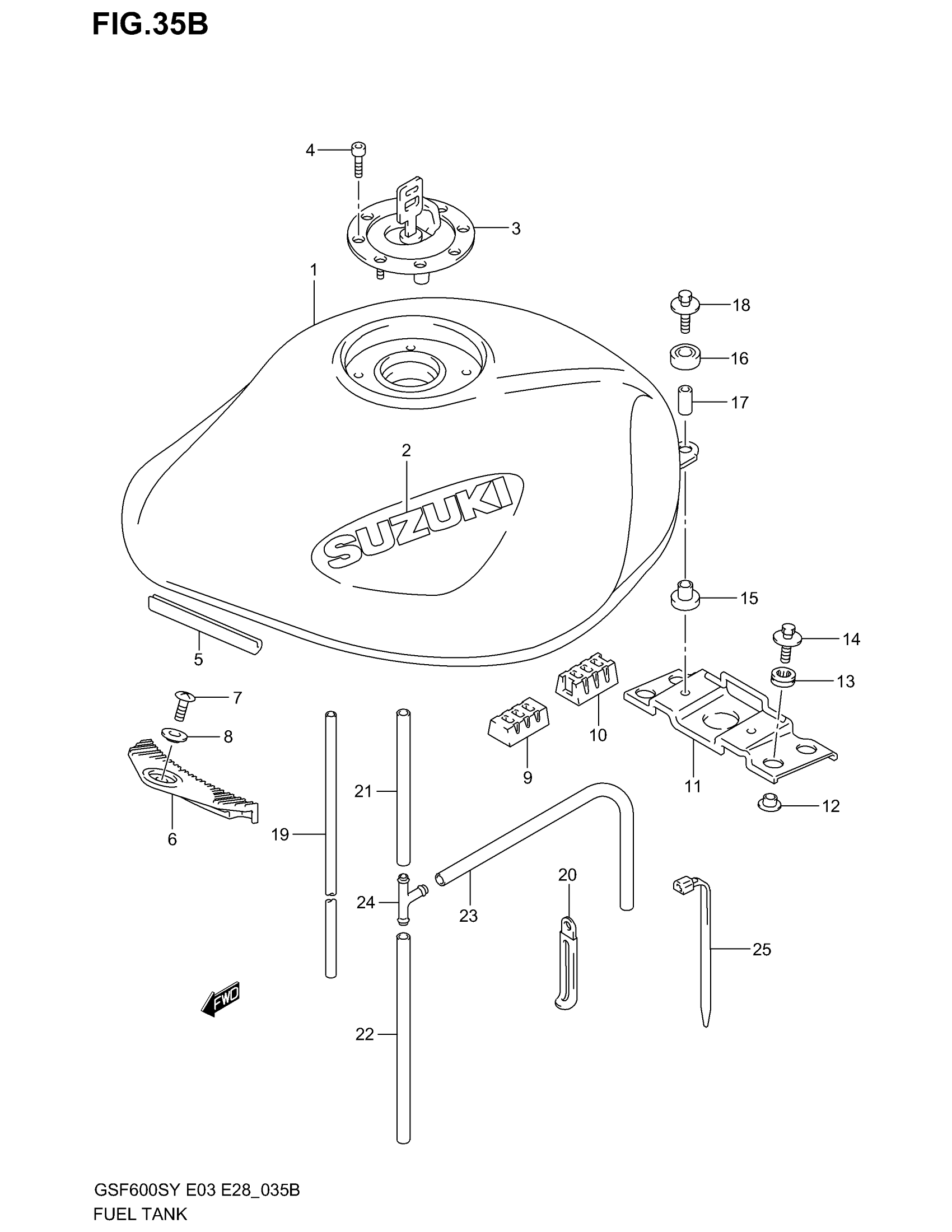

Find the part on the Fuel Tank diagram for your 2003 Suzuki GSF600S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSF600S Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (RED) | E3,E28

44100-31F60-2HX

1
Out of stock

1

TANK ASSY,FUEL( | E3,E28 This part replaces 44100-31F60-2JX.

44110-31F30-13L

1
Out of stock

1

TANK ASSY, FUEL (BLUE) | E3,E28

44100-31F60-YEX

—
Out of stock

1

TANK ASSY, FUEL (SILVER) | E3,E28

44100-31F60-YD8

1
Out of stock

1

TANK ASSY, FUEL (RED) | E33

44100-31F70-19A

1
Out of stock

1

TANK ASSY, FUEL (BLACK) | E33

44100-31F70-2JX

1
Out of stock

1

TANK ASSY, FUEL (BLUE) | E33

44100-31F70-YC2

—
Out of stock

1

TANK ASSY, FUEL (SILVER) | E33; Includes Item(s) 2 - 2

44100-31F70-YD8

—
Out of stock

2

EMBLEM, FUEL TANK (SILVER) | FOR 2HX

68111-31F00-20H

2
Out of stock

2

EMBLEM, FUEL TANK (SILVER) | FOR 2JX,YEX

68111-31F00-YD8

2
Out of stock

2

EMBLEM, FUEL TANK (SILVER) | FOR YD8

68111-31F00-YJ7

2
Out of stock

3

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

1
Out of stock

3

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

1
Out of stock

4

BOLT (L:20)

09106-05017

4
Out of stock

5

MOLDING

68241-04X50-00B

1
Out of stock

6

CUSHION, FUEL TANK FRONT

44511-27E00

1
Out of stock

7

SCREW This part replaces 02142-05103.

02142-0510B

1
Out of stock

8

WASHER

09169-05012

1
Out of stock

9

CUSHION, SIDE

45149-45330

2
Out of stock

10

CUSHION, FUEL TANK SIDE

44541-31F00

2
Out of stock

11

BRACKET, REAR

44550-31F01

1
Out of stock

12

WASHER, LOWER

09169-06062

4
Out of stock

13

CUSHION, BRACKET

09320-09009

4
Out of stock

14

BOLT (6X25) This part replaces 09116-06146.

09116-06150

4
Out of stock

15

CUSHION, LOWER

09320-10038

2
Out of stock

16

CUSHION, UPPER

44512-42E00

2
Out of stock

17

SPACER (6.5X9X18)

09180-06271

2
Out of stock

18

BOLT (6X30)

09116-06172

2
Out of stock

19

HOSE(7X11X2000) This part replaces 09352-70113-00B.

09352-70119-00B

1
Out of stock

20

CLAMP

09404-10417

1
Out of stock

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

22

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

23

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

24

.JOINT,3 WAY

09367-06002

1
Out of stock

25

CLAMP

09407-14403

1
Out of stock
