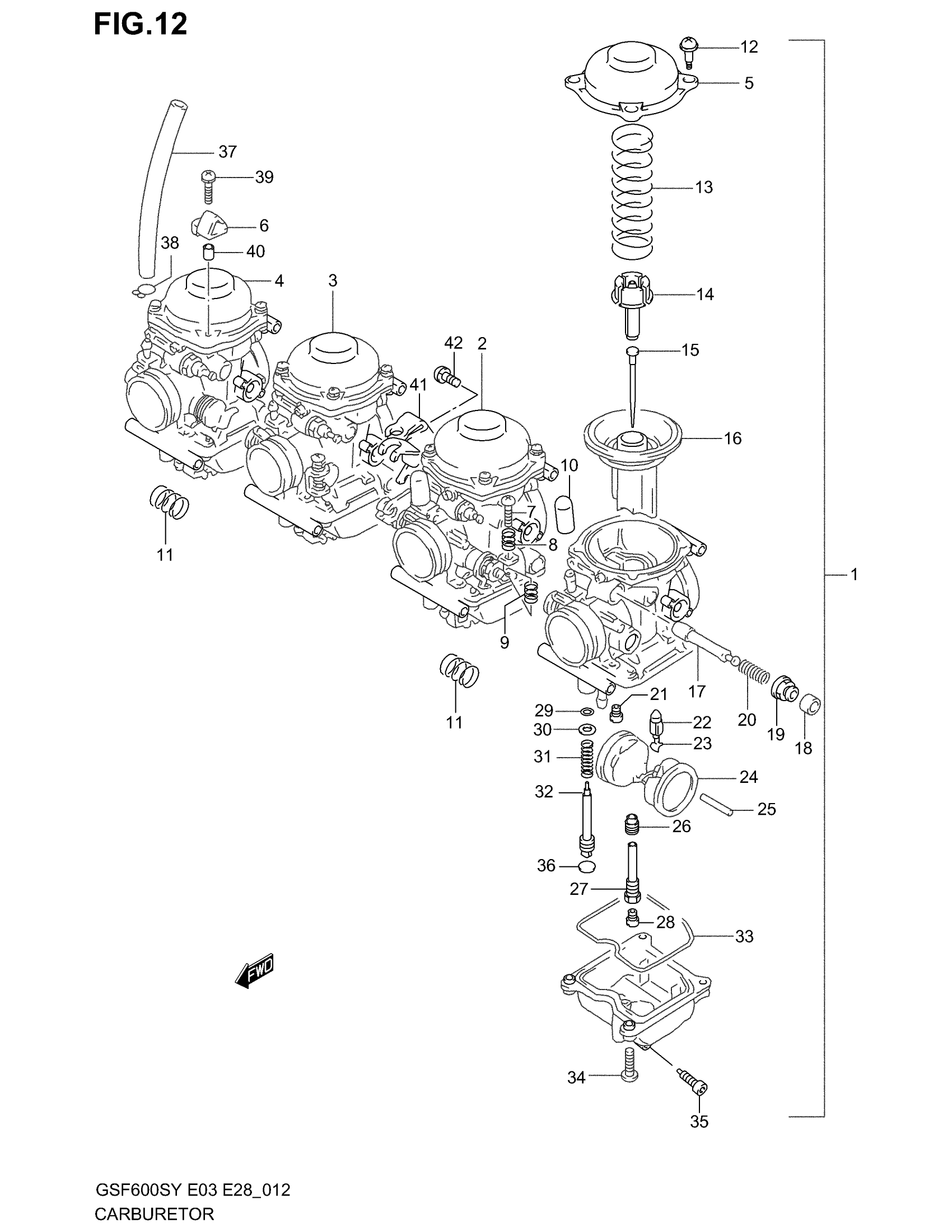

Suzuki GSF600S (2003) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL Y/K1/K2 E3,E28

13201-31F20

Unavailable

1

CARBURETOR ASSY, LH | MODEL K3 E3,E28

13201-31F70

Unavailable

1

CARBURETOR ASSY, LH | MODEL Y K1/K2 E33

13201-31F30

Unavailable

1

CARBURETOR ASSY, LH | MODEL K3 E33

13201-31F80

Unavailable

2

CARBURETOR ASSY, ML | MODEL Y/K1/K2 E3,E28

13202-31F20

Unavailable

2

CARBURETOR ASSY, ML | MODEL K3 E3,E28

13202-31F70

Unavailable

2

CARBURETOR ASSY, ML | MODEL Y/K1/K2 E33

13202-31F30

Unavailable

2

CARBURETOR ASSY, ML | MODEL K3 E33

13202-31F80

Unavailable

3

CARBURETOR ASSY, MR | MODEL Y/K1/K2 E3,E28

13203-31F20

Unavailable

3

CARBURETOR ASSY, MR | MODEL K3 E3,E28

13203-31F70

Unavailable

3

CARBURETOR ASSY, MR | MODEL Y/K1/K2 E33

13203-31F30

Unavailable

3

CARBURETOR ASSY, MR | MODEL K3 E33

13203-31F80

Unavailable

4

CARBURETOR ASSY, RH | MODEL Y/K1/K2 E3,E28

13204-31F20

Unavailable

4

CARBURETOR ASSY, RH | MODEL K3 E3,E28

13204-31F70

Unavailable

4

CARBURETOR ASSY, RH | MODEL Y/K1/K2 E33

13204-31F30

Unavailable

4

CARBURETOR ASSY, RH | MODEL K3 E33; Includes Item(s) 5 - 42

13204-31F80

Unavailable

5

TOP

13502-31F00

Unavailable

6

STAY, PLATE

13624-26E00

$19.85

7

SCREW

13267-26E10

Unavailable

8

SPRING

13271-26E10

Unavailable

9

SPRING

13268-26E10

$6.22

10

CAP This part replaces 13508-26E00.

13508-26E01

$5.83

11

SPRING

13271-26E20

Unavailable

12

SCREW

13601-11F00

$2.80

13

SPRING

13417-31F00

$14.98

14

SEAT, SPRING

13504-31F00

Unavailable

15

JET NEEDLE (N1QL)

13383-26E20

Unavailable

16

PISTON

13500-31F00

$171.82

17

VALVE, STARTER

13411-26E00

Unavailable

18

CAP

13419-26E00

Unavailable

19

CAP

13418-26E00

Unavailable

20

SPRING

13417-26E10

Unavailable

21

JET, SLOW (35)

09492-35020

$18.50

22

VALVE ASSY, NEEDLE

13370-26E00

$23.82

23

CLIP

13375-26E00

$7.02

24

FLOAT ASSY

13250-26E00

$50.72

25

PIN, FLOAT

13254-26E00

$5.00

26

NEEDLE JET

09494-00869

$30.61

27

HOLDER, NEEDLE JET

13331-26E00

$29.72

28

JET, MAIN (92)

09491-92012

$19.58

29

O RING

13295-26E00

$3.97

30

WASHER

13291-26E00

$2.80

31

SPRING

13268-26E00

$5.88

32

SCREW, ADJUST This part replaces 13279-26E10.

13279-03FA0

$12.85

33

O RING

13258-26E00

$8.15

34

SCREW

13602-26E10

$4.34

35

DRAIN, PLUG

13247-26E00

$20.33

36

CAP

13281-26E00

$6.23

37

.HOSE | L:600!250 This part replaces 09352-50903-600.

09352-50006-600

$6.75

38

CLIP

13671-26E00

Unavailable

39

SCREW

13602-31F00

Unavailable

40

COLLAR

13582-31F00

Unavailable

41

PLATE

13565-26E00

Unavailable

42

SCREW

13602-26E20

Unavailable
