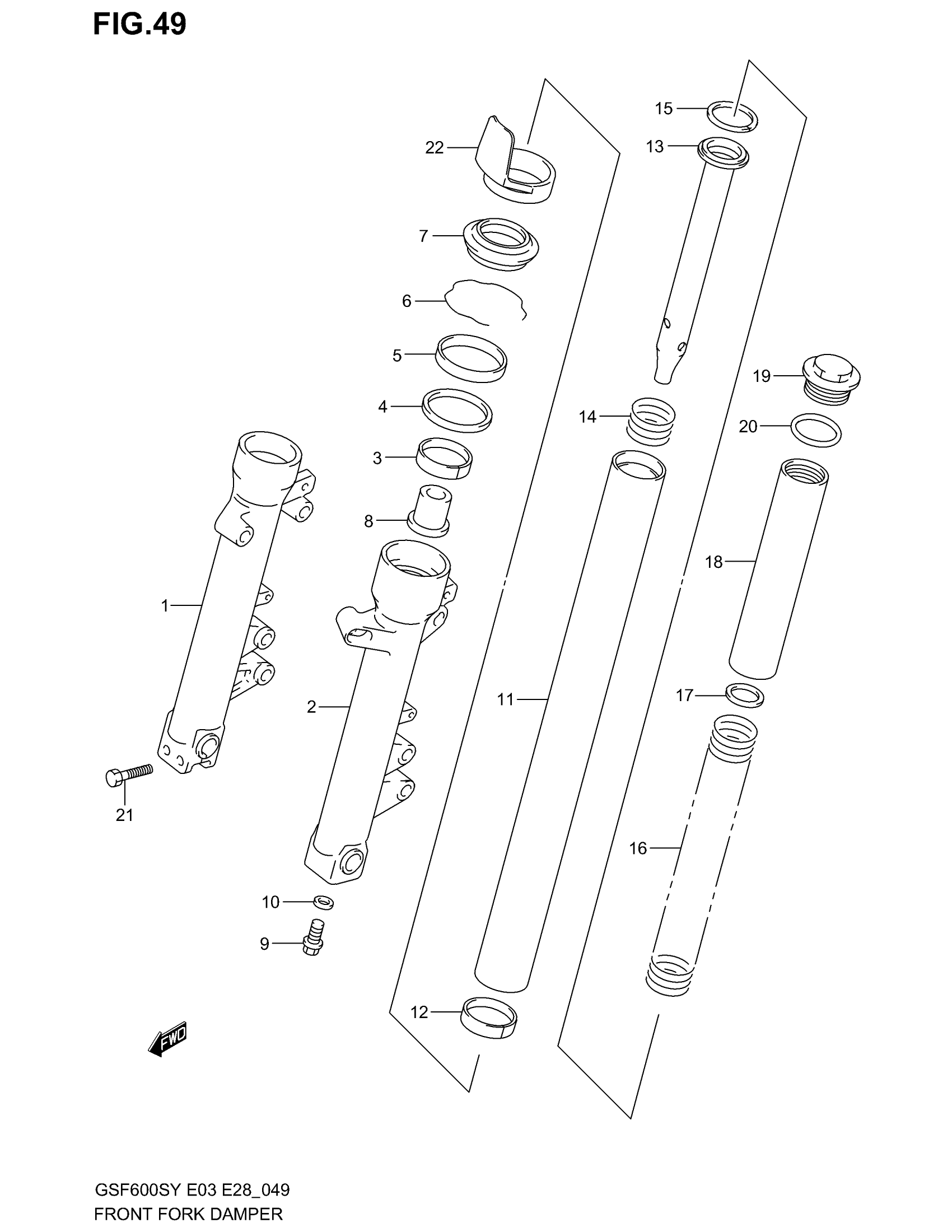

Suzuki GSF600S (2003) FRONT FORK DAMPER (MODEL Y/K1/K2) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-31F10

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 22

51104-31F10

Unavailable

1

TUBE, OUTER RH

51130-31F00

Unavailable

2

TUBE, OUTER LH

51140-31F00

Unavailable

3

METAL, SLIDE

51167-26E10

$24.52

4

WASHER

51158-05A00

$5.83

5

SEAL, OIL

51153-14F00

$20.70

6

CIRCLIP

51156-49440

$5.05

7

SEAL, DUST

51173-14F00

$23.07

8

PIECE, OIL LOCK

51195-33D10

$26.20

9

BOLT

51147-16510

$4.34

10

WASHER

51148-41310

$2.26

11

TUBE, INNER

51110-31F00

Unavailable

12

PISTON

51121-33D10

$18.90

13

CYLINDER

51146-31F00

Unavailable

14

SPRING

51177-06C00

$13.05

15

RING, PISTON

51196-31F00

$7.05

16

SPRING, FRONT

51171-31F10

Unavailable

17

WASHER

51356-10D03

$7.50

18

SPACER, SPRING

51176-14A20

Unavailable

19

CAP

51351-10D00

$54.75

20

O RING

09280-32001

$2.06

21

BOLT, RH

01550-08457

$4.00

22

PROTECTOR

51201-31F00

Unavailable
