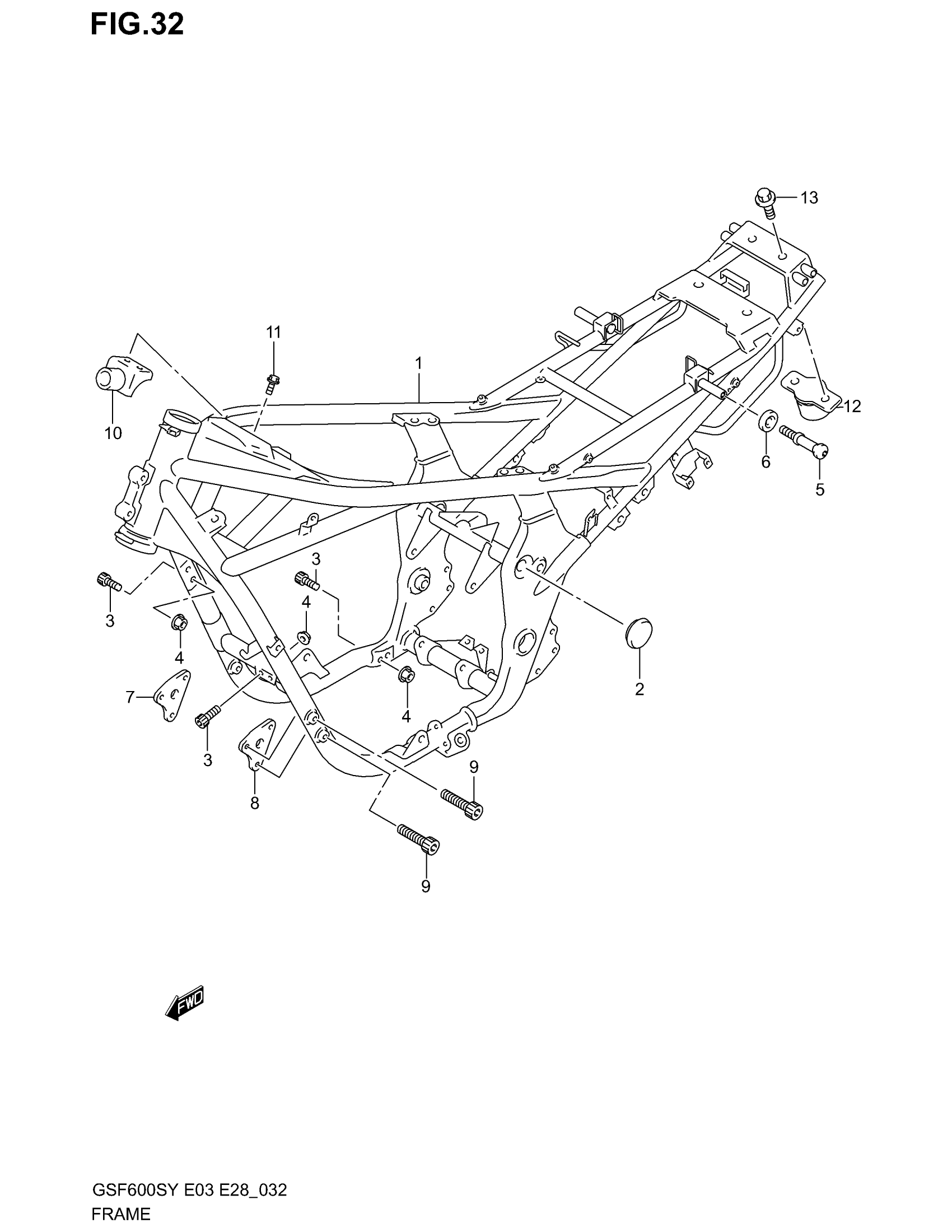

Suzuki GSF600S (2003) FRAME (MODEL Y) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-31F00-Y7M.

41100-31F01-Y7M

Unavailable

1

NO DESCRIPTION AVAILABLE | E3,E33 This part replaces 41100-31F00-33J.

41100-31F01-33J

Unavailable

1

FRAME (BLUE) | E28

41100-31F00-1LF

Unavailable

2

CAP, PIVOT

43585-03F00

Unavailable

3

BOLT

09106-10068

$3.50

4

NUT This part replaces 08319-31103.

08319-3110A

$2.73

5

HOOK, SEAT RAIL

46315-31F00

$18.73

6

WASHER

46317-31F00

$9.72

7

PLATE, MOUNT RH (RED)

41910-26E10-Y7M

Unavailable

7

PLATE, MOUNT RH (BLACK) | E3,E33

41910-26E10-33J

Unavailable

7

PLATE, MOUNT RH (BLUE) | E28

41910-26E10-1LF

Unavailable

8

PLATE, MOUNT LH (RED)

41920-26E00-Y7M

Unavailable

8

PLATE, MOUNT LH (BLACK) | E3,E33

41920-26E00-33J

Unavailable

8

PLATE, MOUNT LH (BLUE) | E28

41920-26E00-1LF

Unavailable

9

BOLT This part replaces 07130-08503.

07130-0850A

$4.17

10

DAMPER, FRAME FRONT

42550-26E00

Unavailable

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

12

DAMPER, FRAME REAR

42550-31F00

Unavailable

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
