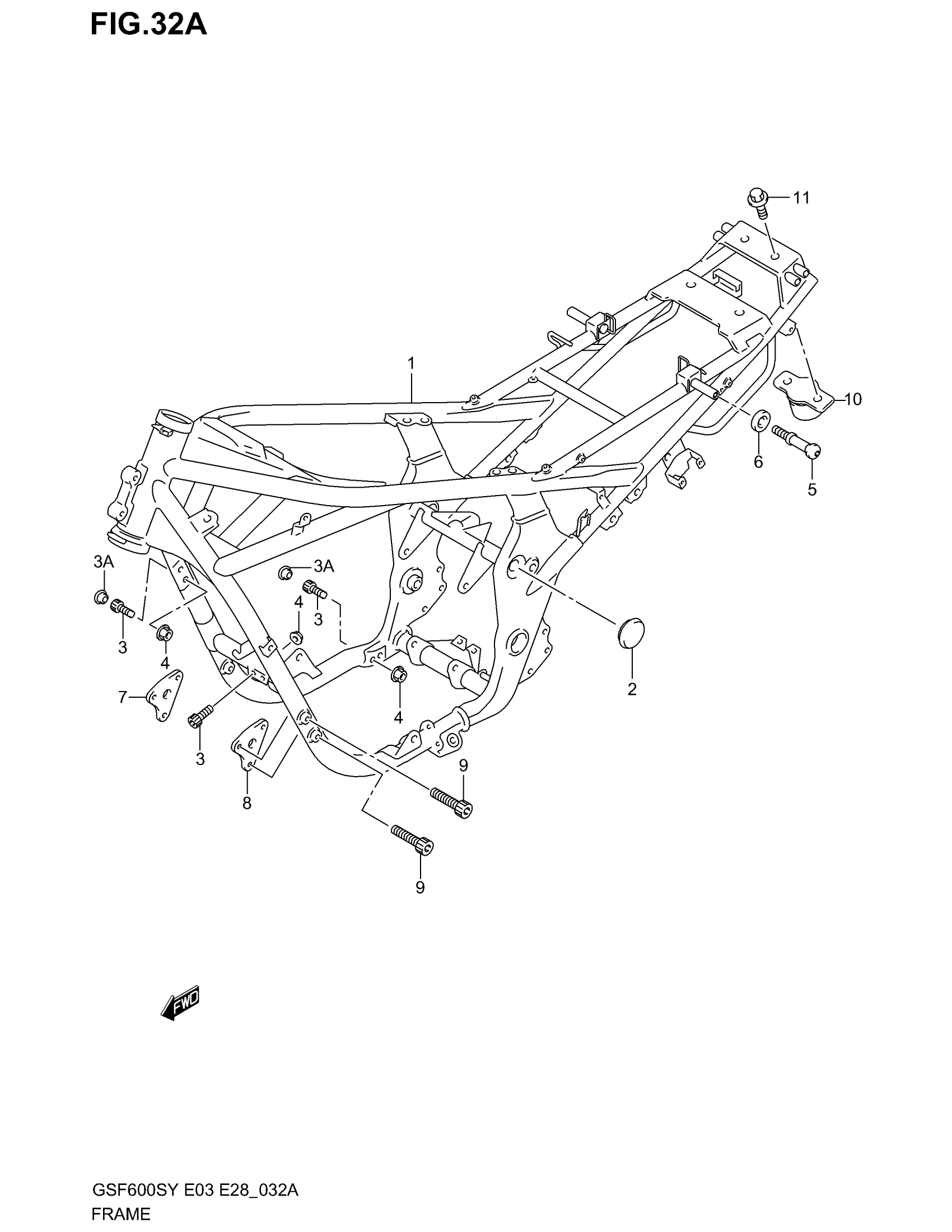

Suzuki GSF600S (2003) FRAME (MODEL K1/K2) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-31F00-19A.

41100-31F01-19A

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 41100-31F00-33J.

41100-31F01-33J

Unavailable

1

FRAME This part replaces 41100-31F00-YC2.

41100-31F01-YC2

Unavailable

1

FRAME | MODEL K2 This part replaces 41100-31F00-YD8.

41100-31F01-YD8

Unavailable

2

CAP, PIVOT

43585-03F00

Unavailable

3

BOLT

09106-10068

$3.50

3A

CAP, RH

09250-08012

$2.15

4

NUT This part replaces 08319-31103.

08319-3110A

$2.73

5

HOOK, SEAT RAIL

46315-31F00

$18.73

6

WASHER

46317-31F00

$9.72

7

PLATE, MOUNT RH (RED)

41910-26E10-19A

Unavailable

7

PLATE, MOUNT RH (BLACK)

41910-26E10-33J

Unavailable

7

PLATE, MOUNT RH (BLUE)

41910-26E10-YC2

Unavailable

7

PLATE, MOUNT RH (SILVER) | MODEL K2

41910-26E10-YD8

Unavailable

8

PLATE, MOUNT LH (RED)

41920-26E00-19A

Unavailable

8

PLATE, MOUNT LH (BLACK)

41920-26E00-33J

Unavailable

8

PLATE, MOUNT LH (BLUE)

41920-26E00-YC2

Unavailable

8

PLATE, MOUNT LH (SILVER) | MODEL K2

41920-26E00-YD8

Unavailable

9

BOLT This part replaces 07130-08503.

07130-0850A

$4.17

10

DAMPER, FRAME REAR

42550-31F00

Unavailable

11

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
