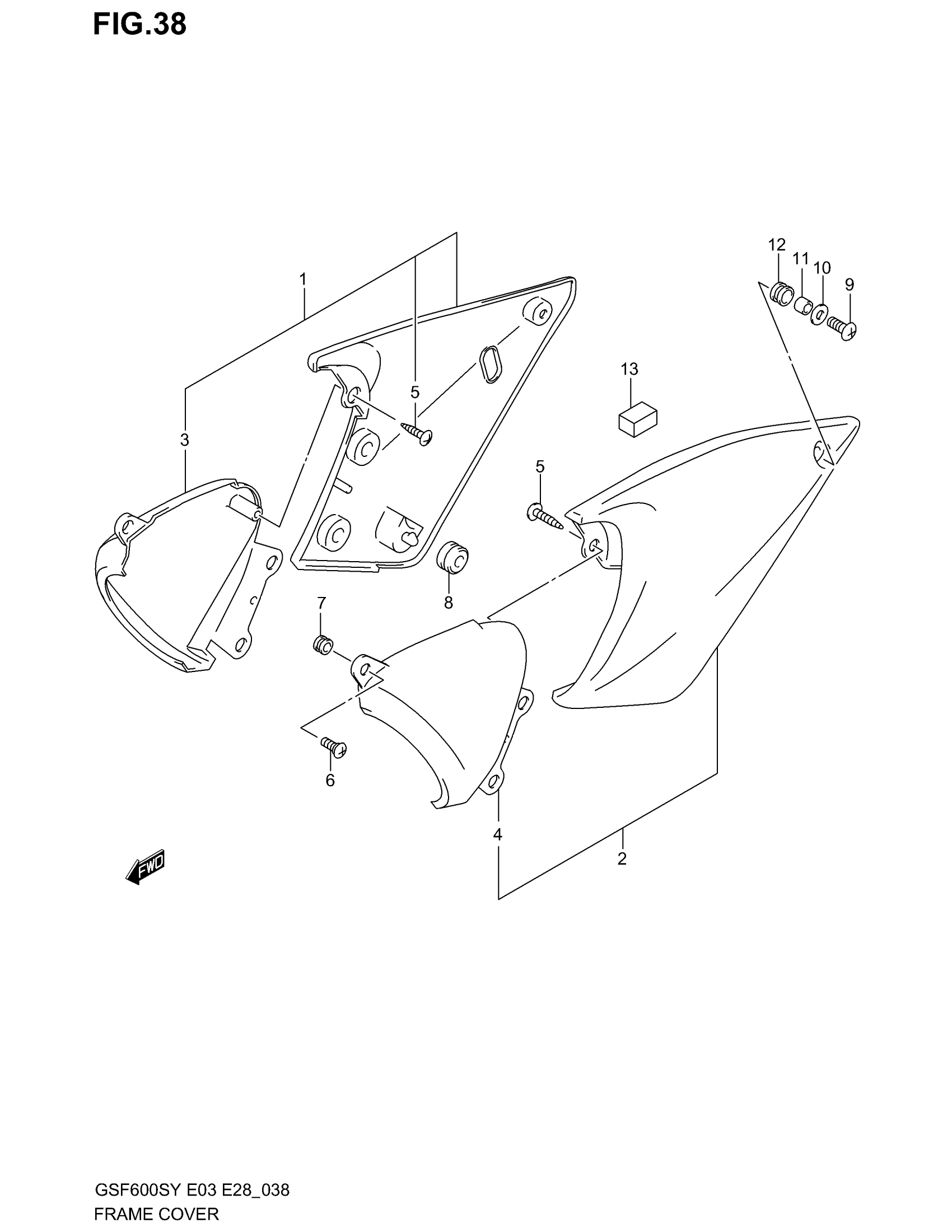

Suzuki GSF600S (2003) FRAME COVER (MODEL Y/K1) Diagram

#

Description
Price

1

COVER, FRAME RH (GRAY)

47110-31F00-35W

Unavailable

2

COVER, FRAME LH (GRAY) | MODEL Y This part replaces 47210-31F00-35W.

47210-31F01-35W

$145.51

2

COVER, FRAME LH (GRAY) | MODEL K1; Includes Item(s) 3 - 5

47210-31F01-35W

$145.51

3

COVER, FRONT RH

47121-31F00

Unavailable

4

COVER, FRONT LH | MODEL Y This part replaces 47221-31F00.

47221-31F01

Unavailable

4

COVER, FRONT LH | MODEL K1

47221-31F01

Unavailable

5

SCREW This part replaces 03541-15123.

03541-1512B

$2.87

6

SCREW, FRONT This part replaces 47155-31F00.

09139-05070

$6.87

7

CUSHION,FRAME C This part replaces 47822-31F00.

47822-31F01

$6.38

8

CUSHION, CENTER

09320-08018

$3.04

9

SCREW, CENTER

09139-06030

$3.70

10

WASHER (6.5X18X1.0)

09160-06028

$1.49

11

SPACER

09180-06263

$2.03

12

CUSHION

09320-09016

$1.97

13

CUSHION, FRONT This part replaces 47161-04A00.

47191-22D00

$5.02
