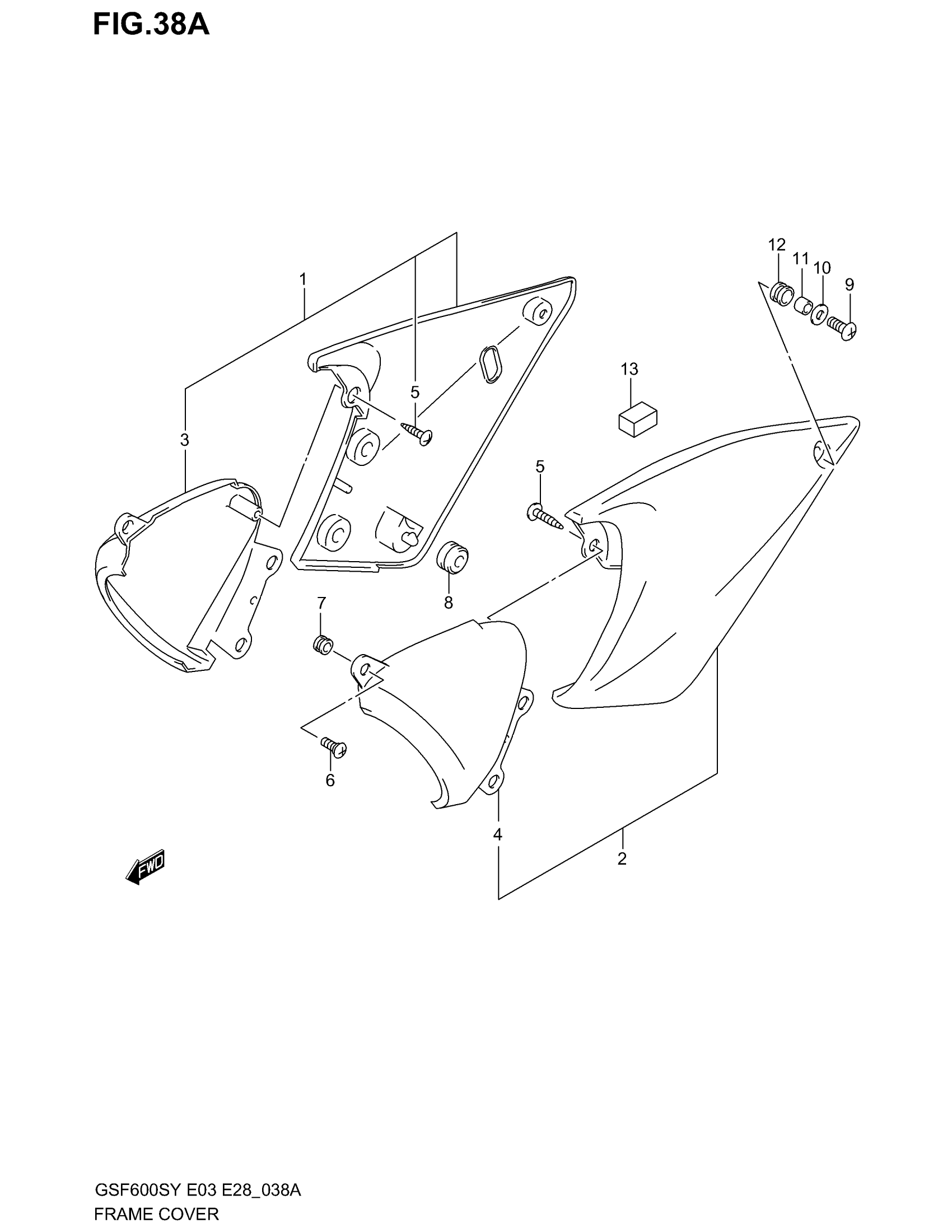

Suzuki GSF600S (2003) FRAME COVER (MODEL K2/K3) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK) | MODEL K2

47110-31F00-Y7L

Unavailable

1

COVER, FRAME RH (BLACK) | MODEL K3

47110-31F00-019

$212.32

2

COVER, FRAME LH (BLACK) | MODEL K2

47210-31F01-Y7L

Unavailable

2

COVER, FRAME LH (BLACK) | MODEL K3; Includes Item(s) 3 - 5

47210-31F01-019

$212.32

3

COVER, FRONT RH

47121-31F00

Unavailable

4

COVER, FRONT LH

47221-31F01

Unavailable

5

SCREW This part replaces 03541-15123.

03541-1512B

$2.87

6

SCREW, FRONT

09139-05070

$6.87

7

CUSHION,FRAME C This part replaces 47822-31F00.

47822-31F01

$6.38

8

CUSHION, CENTER

09320-08018

$3.04

9

SCREW, CENTER

09139-06030

$3.70

10

WASHER (6.5X18X1.0)

09160-06028

$1.49

11

SPACER

09180-06263

$2.03

12

CUSHION

09320-09016

$1.97

13

CUSHION, FRONT This part replaces 47161-04A00.

47191-22D00

$5.02
