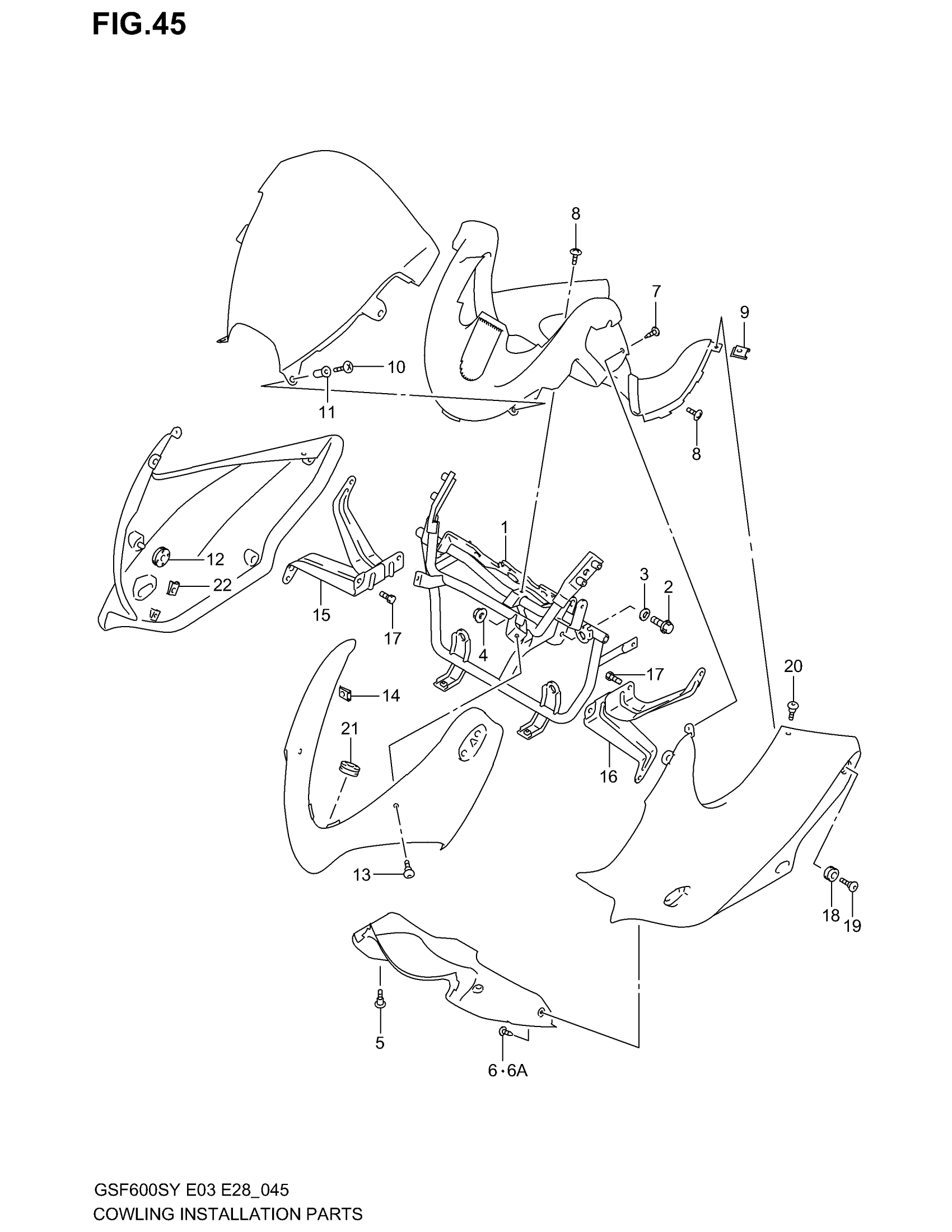

Suzuki GSF600S (2003) COWLING INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE,COWLING This part replaces 94510-31F00.

94510-31F10

Unavailable

2

BOLT

09103-08107

$4.77

3

WASHER

09164-08020

$2.06

4

NUT This part replaces 08313-20083.

08313-2008B

$2.88

5

SCREW, CENTER COWL

09139-05054

$4.24

6

SCREW | MODEL Y This part replaces 03241-15123.

03241-1512B

$2.39

6A

CLIP, SIDE (BLACK) | MODEL K1/K2/K3

09409-06314-5PK

$2.78

7

SCREW, BRACKET This part replaces 03242-05163.

03241-0516A

$1.49

8

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

9

NUT COWL

94484-24F00

$4.03

10

SCREW This part replaces 02142-15163.

02142-1516A

$1.84

11

NUT, SCREEN

09159-05019

$7.14

12

CUSHION, HEADLAMP

09320-08028

$3.04

13

SCREW, FRONT COWL

09139-05055

$4.26

14

NUT, UPPER

09148-05038

$1.97

15

BRACKET,SIDE CO This part replaces 94540-31F00.

94540-31F01

Unavailable

16

BRACKET,SIDE CO This part replaces 94550-31F00.

94550-31F01

Unavailable

17

BOLT This part replaces 01500-06103.

01500-0610B

$1.81

18

CUSHION, SIDE COWL

09320-09016

$1.97

19

SCREW This part replaces 09139-06087.

09139-06126

$4.04

20

SCREW, SIDE COWL UPPER

09139-05054

$4.24

21

CUSHION, CENTER

09320-08028

$3.04

22

NUT, LOWER | MODEL Y

09148-05038

$1.97
