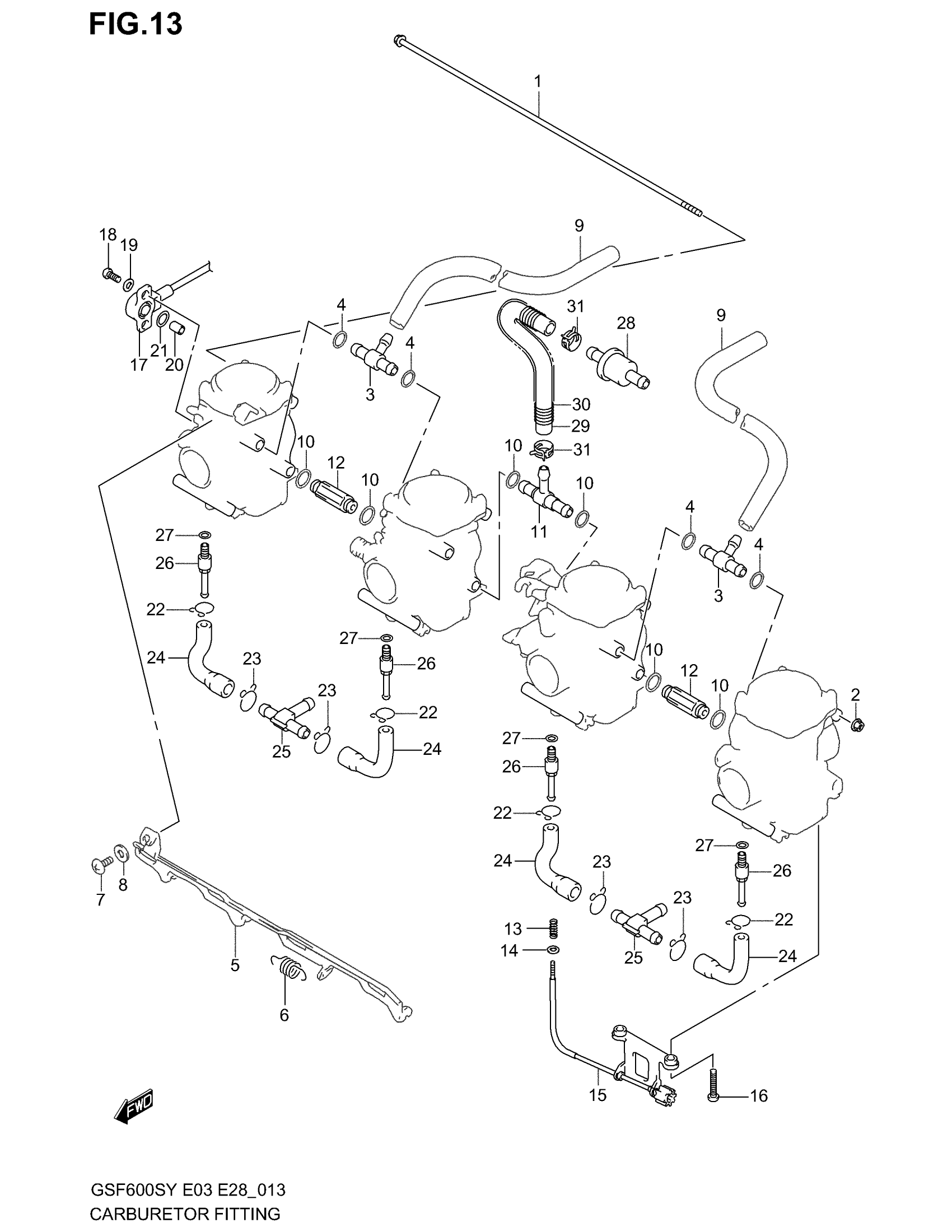

Suzuki GSF600S (2003) CARBURETOR FITTINGS (MODEL Y/K1/K2) Diagram

#

Description
Price

1

BOLT

13611-31F00

Unavailable

2

NUT

13607-24F00

$3.22

3

JOINT

13685-26E20

$16.48

4

O RING This part replaces 13673-26E00.

13673-26E01

$4.25

5

STARTER LEVER

13413-26E00

Unavailable

6

SPRING

13417-26E20

Unavailable

7

SCREW

13602-26E60

$3.70

8

WASHER

13418-26E10

$3.15

9

HOSE(7X11X600) | L:600!380 This part replaces 09352-70113-600.

09352-70119-600

$10.40

10

O RING

13673-31F00

$4.25

11

JOINT

13685-31F00

Unavailable

12

JOINT

13685-31F10

$19.87

13

SPRING

13271-26EA0

$6.88

14

WASHER

13427-26E00

$3.70

15

SCREW, ADJUST

13270-03FA0

Unavailable

16

SCREW This part replaces 02112-04203.

02112-0420A

$1.49

17

SENSOR, THROTTLE

13580-03F00

Unavailable

18

SCREW

13613-24F00

$3.08

19

WASHER

13572-03F00

Unavailable

20

COLLAR

13574-03F00

Unavailable

21

O RING

13575-03F00

$5.32

22

CLIP | E33

13671-26E20

Unavailable

23

CLIP | E33

13671-26E30

Unavailable

24

HOSE | E33

13683-26E10

Unavailable

25

JOINT | E33

13685-26E50

Unavailable

26

JOINT | E33

13685-31F20

Unavailable

27

O RING | E33

13673-31F10

Unavailable

28

STRAINER, FUEL This part replaces 15410-19E00.

15410-19E10

$19.52

29

HOSE, FUEL

15801-31F00

$12.97

30

PROTECTOR, FUEL HOSE

09440-14030

$6.24

31

CLIP This part replaces 09401-11407.

09401-11415

$2.23
