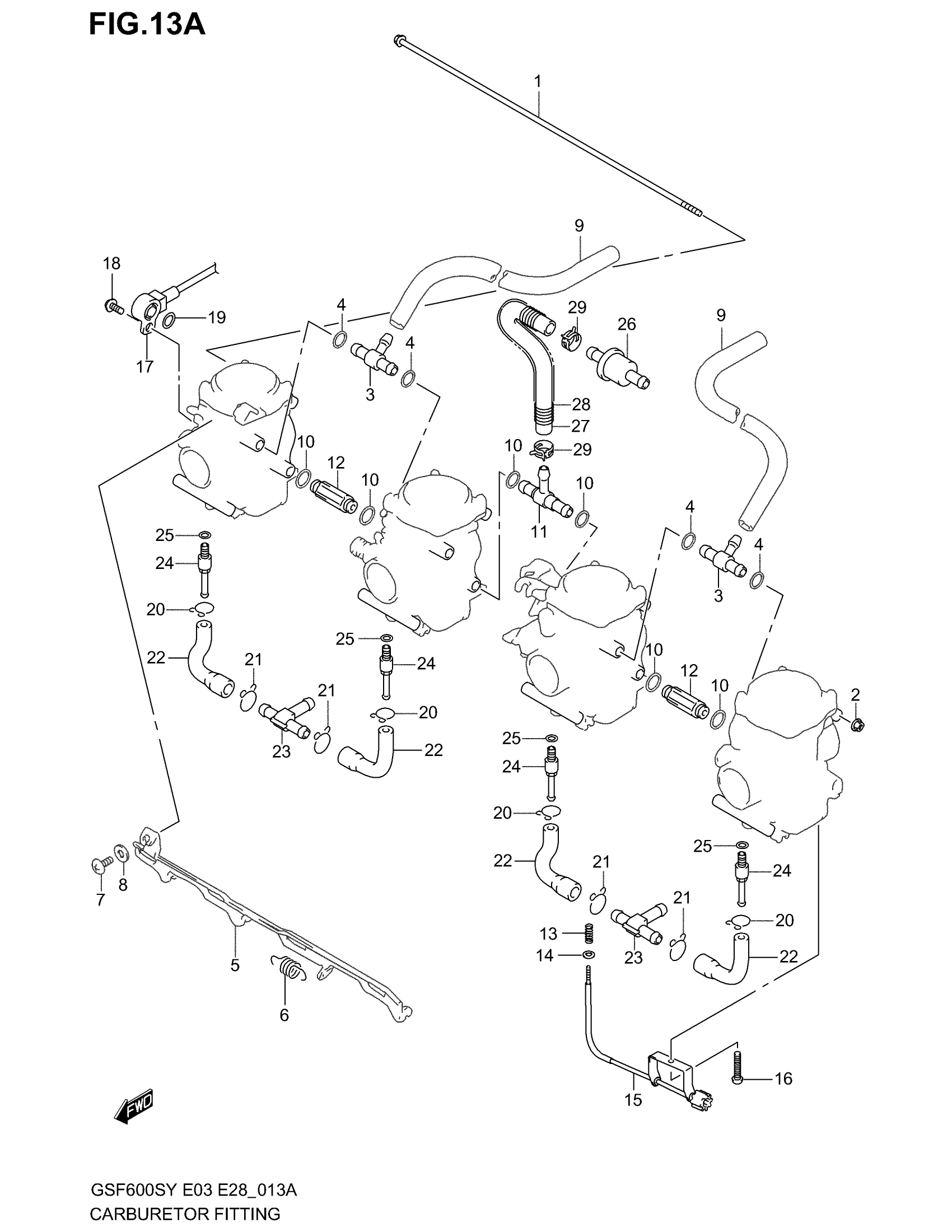

Suzuki GSF600S (2003) CARBURETOR FITTINGS (MODEL K3) Diagram

#

Description
Price

1

BOLT

13611-31F00

Unavailable

2

NUT

13607-24F00

$3.22

3

JOINT

13685-26E20

$16.48

4

O RING This part replaces 13673-26E00.

13673-26E01

$4.25

5

STARTER LEVER

13413-26E00

Unavailable

6

SPRING

13417-26E20

Unavailable

7

SCREW

13602-26E60

$3.70

8

WASHER

13418-26E10

$3.15

9

HOSE(7X11X600) | L:600!380 This part replaces 09352-70113-600.

09352-70119-600

$10.40

10

O RING

13673-31F00

$4.25

11

JOINT

13685-31F00

Unavailable

12

JOINT

13685-31F10

$19.87

13

SPRING

13271-26EA0

$6.88

14

WASHER

13427-26E00

$3.70

15

SCREW, ADJUST

13270-31F00

Unavailable

16

SCREW This part replaces 02112-34083.

02112-3408A

$2.38

17

SENSOR, THROTTLE

13580-03FB0

Unavailable

18

SCREW

13605-40F00

$3.71

19

O RING

13575-40F00

$4.09

20

CLIP | E33

13671-26E20

Unavailable

21

CLIP | E33

13671-26E30

Unavailable

22

HOSE | E33

13683-26E10

Unavailable

23

JOINT | E33

13685-26E50

Unavailable

24

JOINT | E33

13685-31F20

Unavailable

25

O RING | E33

13673-31F10

Unavailable

26

STRAINER, FUEL This part replaces 15410-19E00.

15410-19E10

$19.52

27

HOSE, FUEL

15801-31F00

$12.97

28

PROTECTOR, FUEL HOSE

09440-14030

$6.24

29

CLIP This part replaces 09401-11407.

09401-11415

$2.23
