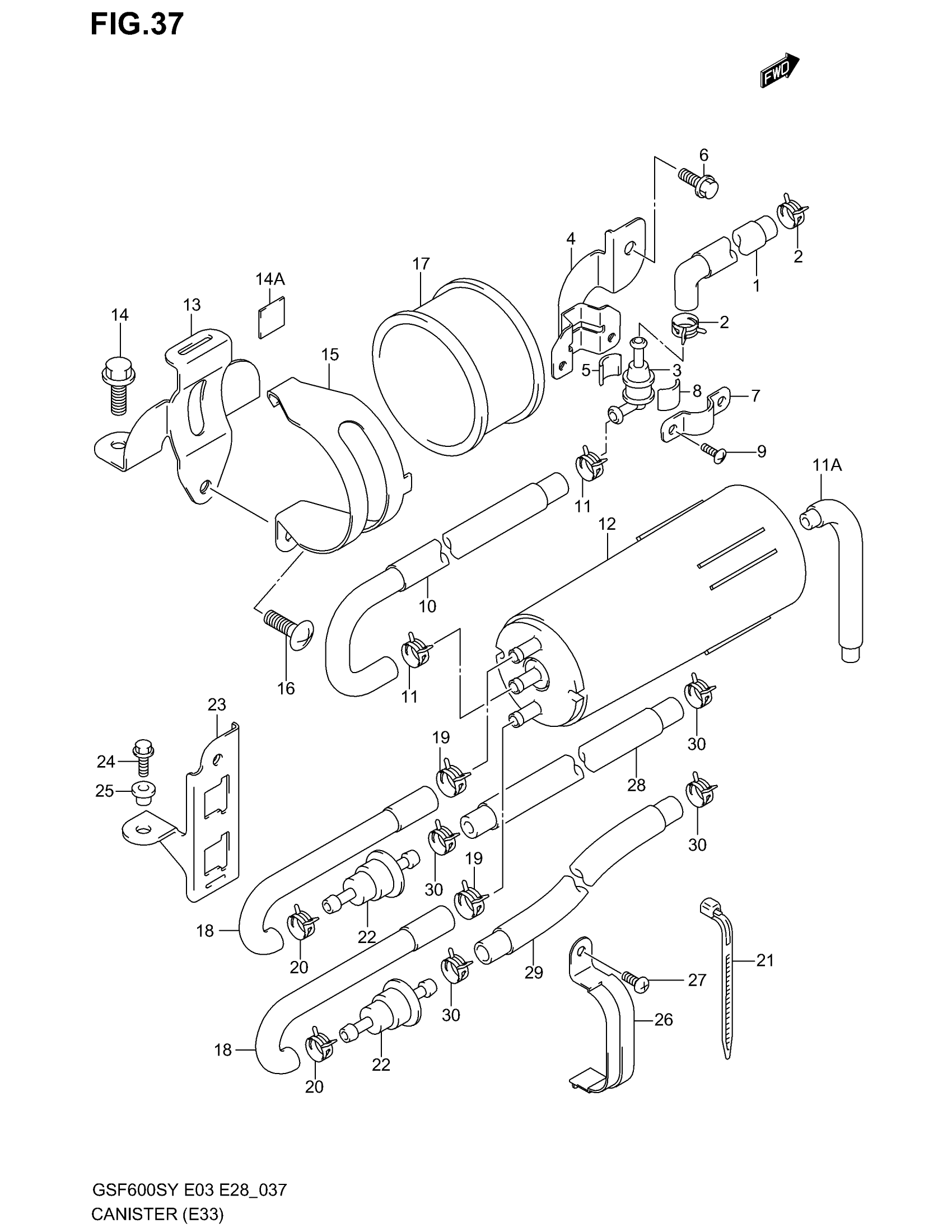

Suzuki GSF600S (2003) CANISTER (E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44434-31F00

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

BRACKET, BREATHER VALVE | Includes Item(s) 5

44890-31F00

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

7

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 8

44892-24A00

$4.52

8

CUSHION (10X30X2)

44894-24A00

$1.72

9

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

10

HOSE, VALVE & CANISTER

44435-31F00

Unavailable

11

CLIP

09401-11413

$2.26

11A

HOSE, CANISTER DRAIN

17215-31F00

Unavailable

12

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

13

BRACKET, CANISTER

44881-31F00

Unavailable

14

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14A

CUSHION, BRACKET

44883-31F00

Unavailable

15

HOLDER, CANISTER

44882-02F01

Unavailable

16

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

17

CUSHION CANISTER

44883-26E00

Unavailable

18

HOSE, PURGE

44437-31F00

Unavailable

19

CLIP This part replaces 09401-11407.

09401-11415

$2.23

20

CLIP

09401-11413

$2.26

21

CLAMP

09407-18402

$2.19

22

VALVE, PURGE

44250-48B00

Unavailable

23

BRACKET, PURGE VALVE | MODEL Y This part replaces 44885-31F00.

44885-31F01

Unavailable

23

BRACKET, PURGE VALVE | MODEL K1/K2/K3

44885-31F01

Unavailable

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

25

WASHER This part replaces 09169-05021.

09169-05024

$2.06

26

HOLDER, PURGE VALVE

44884-31E00

Unavailable

27

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

28

HOSE, CARB (L:980)

44438-31F00

Unavailable

29

HOSE, CARB (L:900)

44439-31F00

Unavailable

30

CLIP

09401-11413

$2.26
