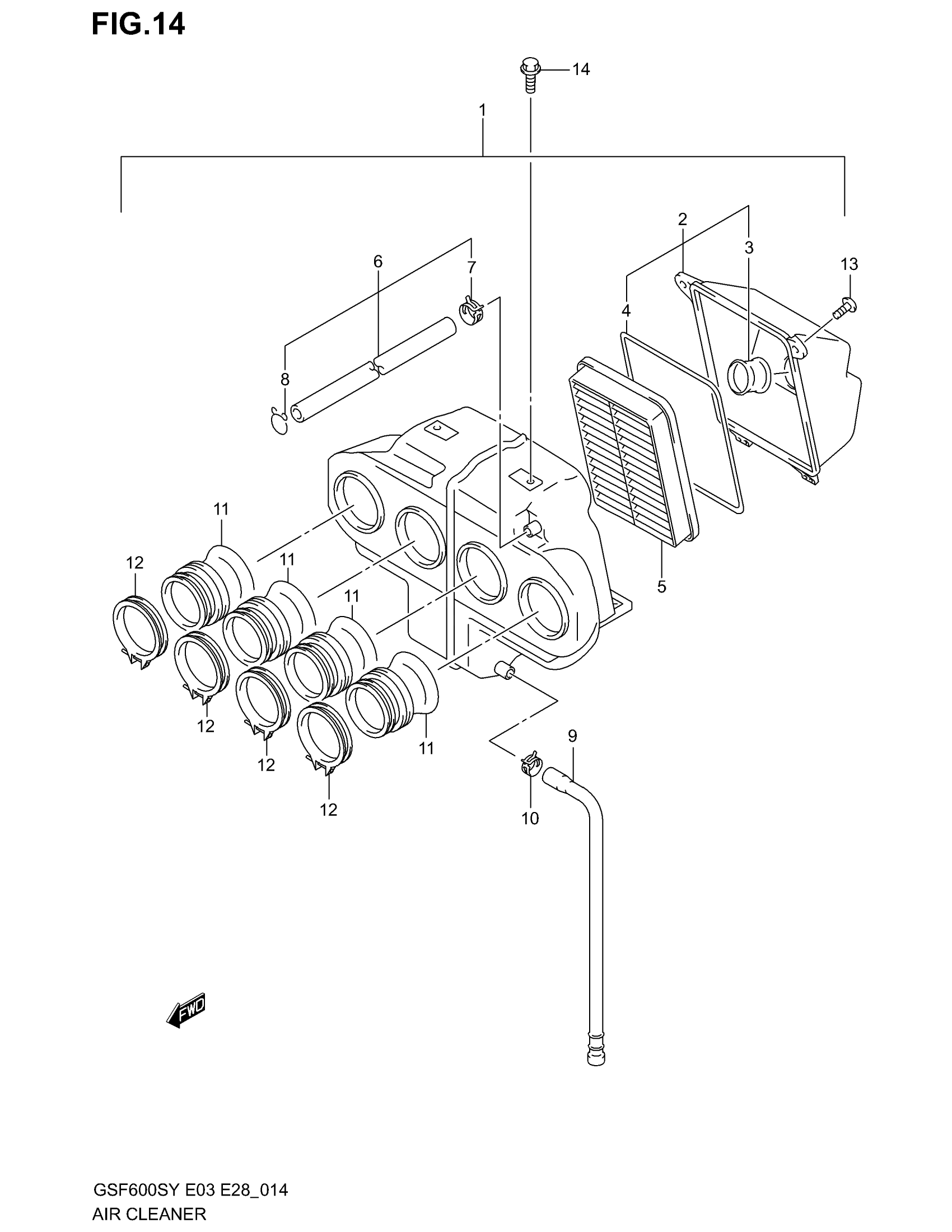

Suzuki GSF600S (2003) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 13

13700-31F00

Unavailable

2

CAP,AIR CLEANER This part replaces 13740-31F00.

13740-31F01

$47.22

3

TUBE,INLET This part replaces 13891-17E00.

13891-17E01

$27.00

4

GASKET, AIR CLEANER CAP

13746-31F00

$5.83

5

FILTER, AIR

13780-31F00

$29.95

6

TUBE,BREATHER This part replaces 13850-31F00.

13850-31F01

$22.55

7

CLIP

09401-14404

$2.28

8

CLIP

09401-16401

$3.14

9

TUBE,DRAIN This part replaces 13870-21458.

13870-21459

$23.68

10

CLIP

09401-13417

$2.26

11

TUBE, OUTLET

13881-31F00

Unavailable

12

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

13

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

14

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
