1993 Suzuki GSF400P Water Pump Diagram

← All diagrams

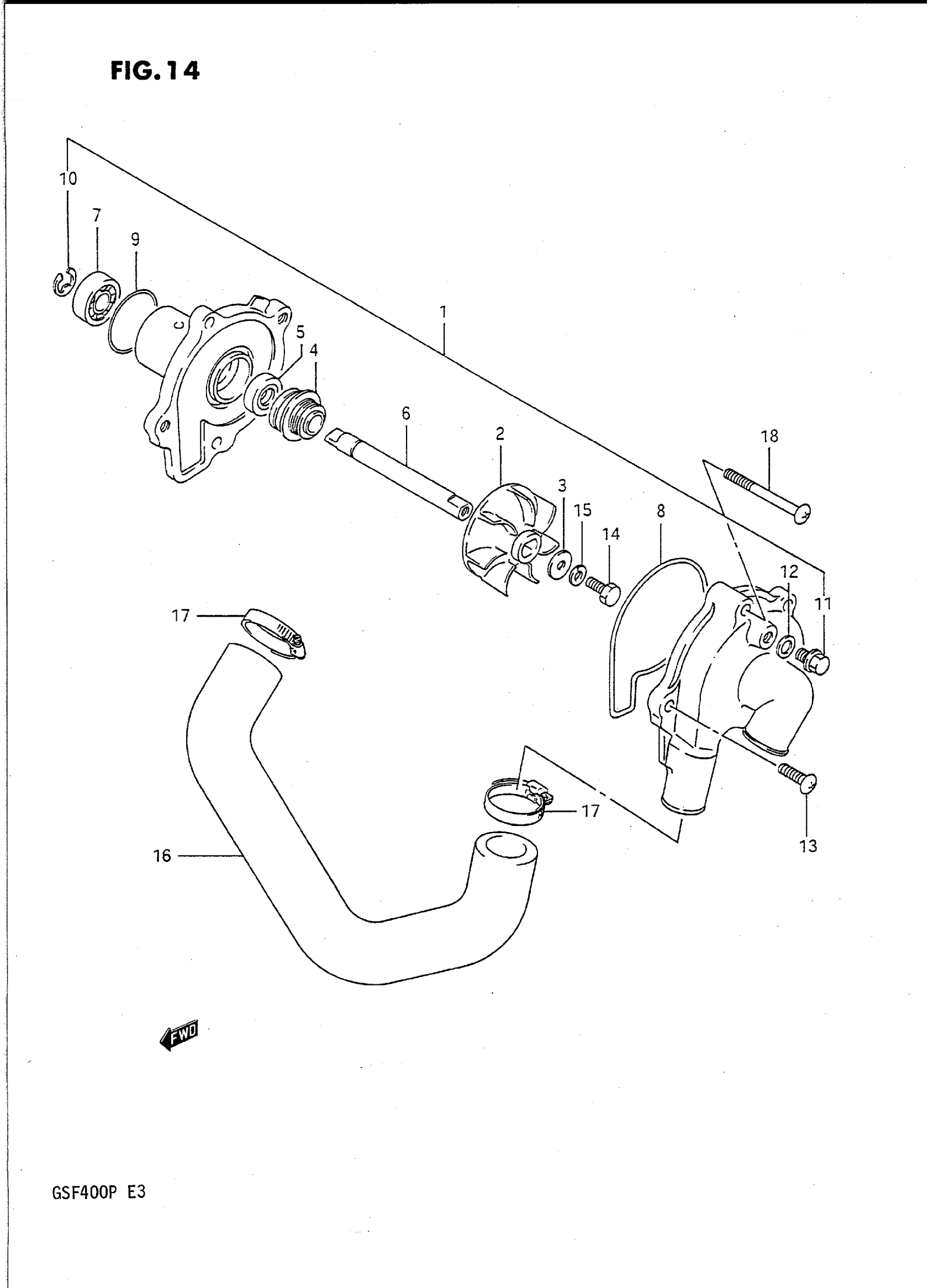

Find the part on the Water Pump diagram for your 1993 Suzuki GSF400P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSF400P Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER | MODEL M/N This part replaces 17400-10D00.

17400-32C03

1
Out of stock

1

PUMP ASSY,WATER | MODEL P; Includes Item(s) 2 - 15 This part replaces 17400-10D01.

17400-32C03

1
Out of stock

2

INPELLER, WATER PUMP

17491-16700

1
Out of stock

3

GASKET

09168-06025

1
Out of stock

4

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

1
Out of stock

5

.SEAL OIL (10X21X5) This part replaces 17461-38A00.

09283-10004

1
Out of stock

6

SHAFT, WATER PUMP

17511-30B00

1
Out of stock

7

BEARING (10X26X8) This part replaces 17451-38A00.

09262-10014

1
Out of stock

8

O RING

17418-38400

1
Out of stock

9

.O-RING

17435-33400

1
Out of stock

10

.E-RING This part replaces 08332-11086.

08332-1108A

1
Out of stock

11

BOLT, DRAIN

17415-14300

1
Out of stock

12

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

13

SCREW This part replaces 02112-06164.

02112-0616A

2
Out of stock

14

BOLT (6X13)

09100-06099

1
Out of stock

15

LOCK WASHER

09164-06006

1
Out of stock

16

HOSE, WATER PUMP OUTLET

17858-10D00

1
Out of stock

17

CLAMP This part replaces 09402-30502.

09402-32511

2
Out of stock

18

SCREW This part replaces 02112-06455.

02112-0645B

3
Out of stock
