1993 Suzuki GSF400P CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 1993 Suzuki GSF400P, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

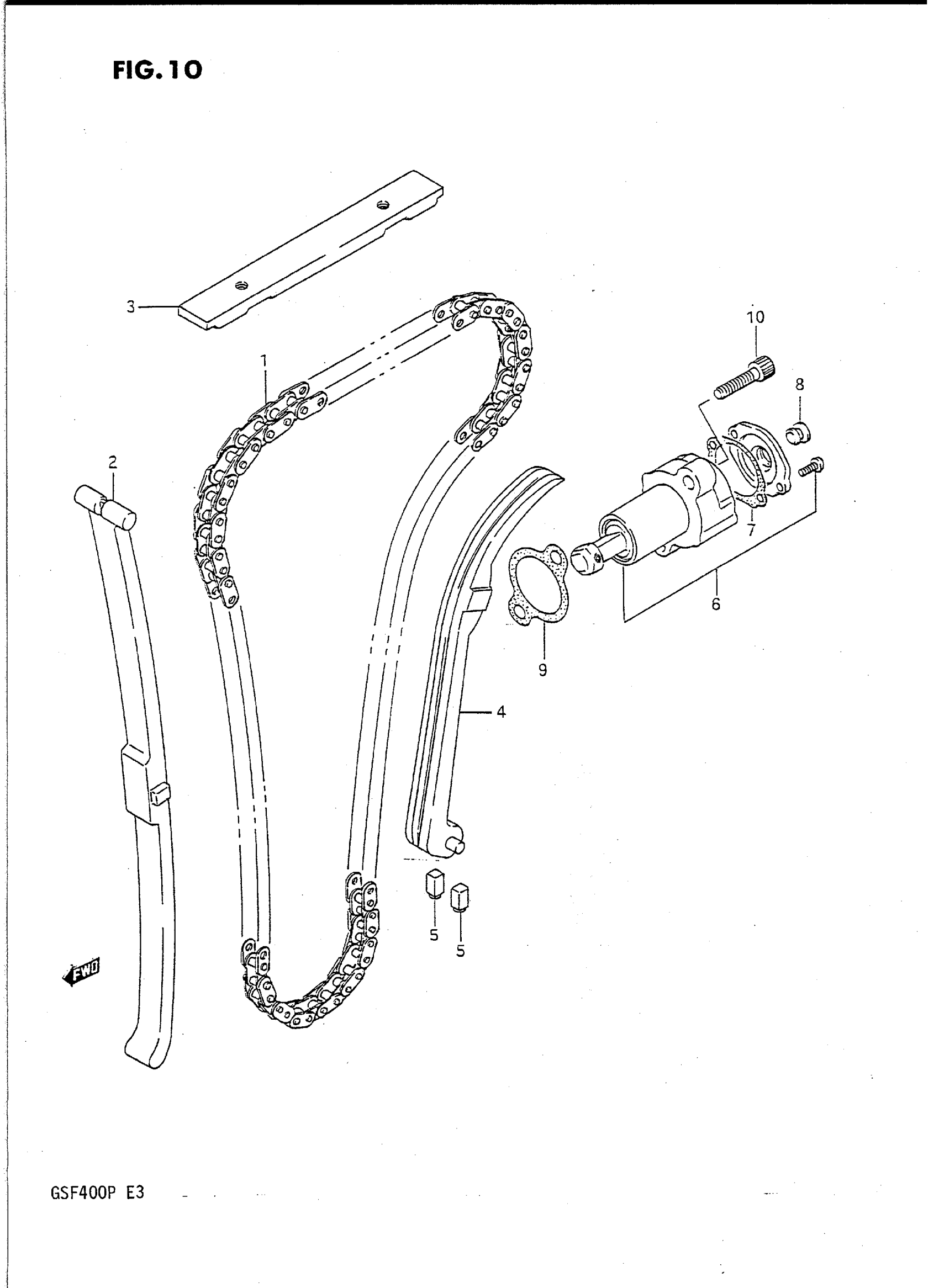

1993 Suzuki GSF400P CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE

12760-32C01

1
Out of stock

2

GUIDE, CAM CHAIN NO.1

12771-32C00

1
Out of stock

3

GUIDE, CAM CHAIN NO.2

12782-33400

1
Out of stock

4

TENSIONER, CAM CHAIN

12810-32C01

1
Out of stock

5

CUSHION, CAM CHAIN TENSIONER

12814-44101

2
Out of stock

6

ADJUSTER ASSY, TENSIONER | MODEL M/N This part replaces 12830-15520.

12830-33C10

1
Out of stock

6

ADJUSTER ASSY, TENSIONER | MODEL P; Includes Item(s) 7 This part replaces 12830-15521.

12830-33C10

1
Out of stock

7

GASKET, ADJUSTER CAP

12838-38200-H17

1
Out of stock

8

PLUG, ADJUSTER

12839-38200

1
Out of stock

9

.GASKET,TENSIONER ADJUSTER | MODEL M/N This part replaces 12837-24A00.

12837-24A10

1
Out of stock

9

.GASKET,TENSIONER ADJUSTER | MODEL P

12837-24A10

1
Out of stock

10

BOLT This part replaces 07110-06255.

07130-0625B

2
Out of stock
