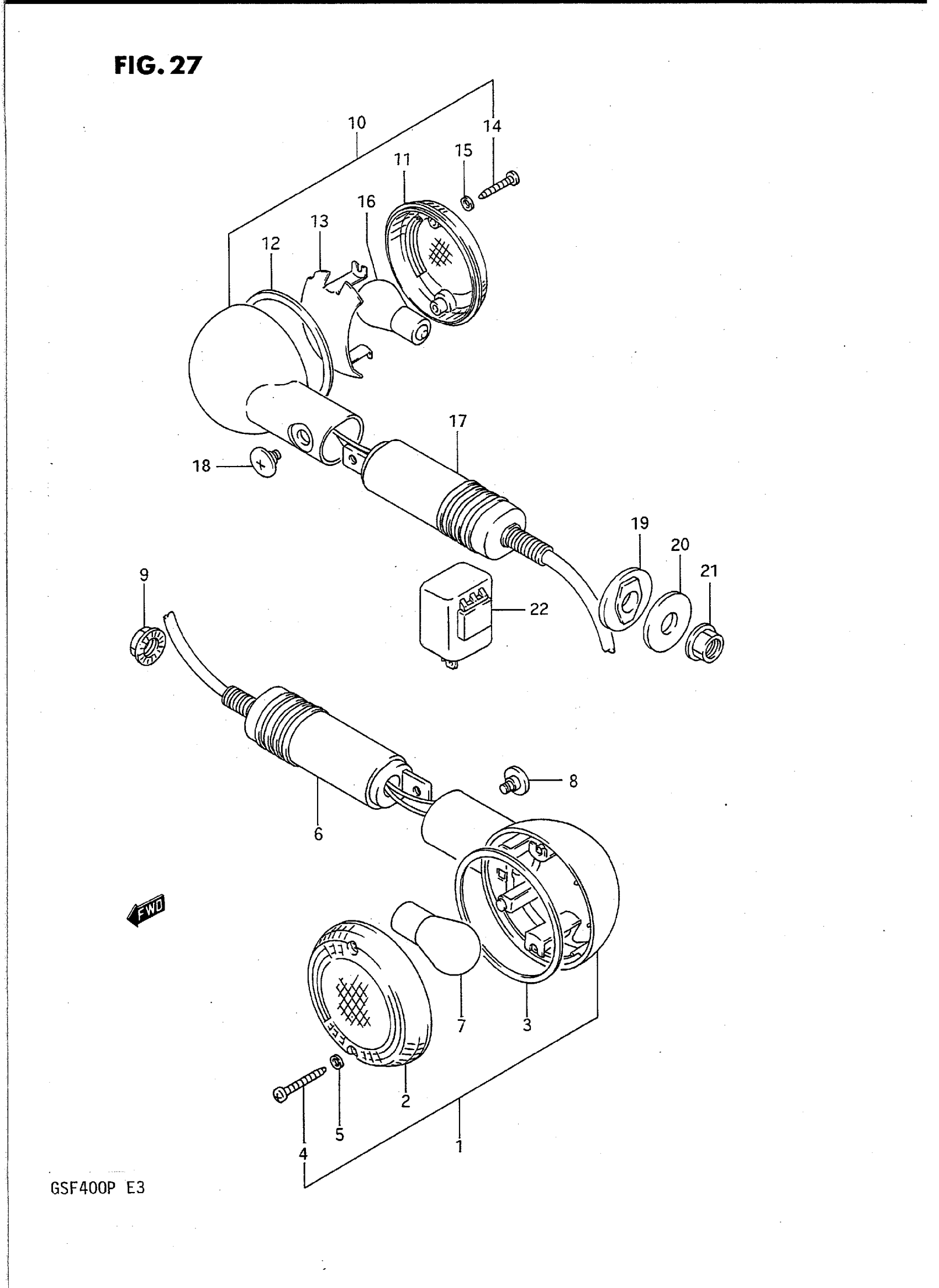

Suzuki GSF400P (1993) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-45C00

Unavailable

1

LAMP ASSY, FRONT TURN RH | Includes Item(s) 2 - 8 This part replaces 35602-45C00.

35601-45C00

Unavailable

2

LENS

35612-38A01

$13.81

3

GASKET

35613-38A00

$9.74

4

SCREW This part replaces 03211-04256.

03211-0425B

$2.70

5

GASKET

35627-43010

$2.28

6

STAY, TURN LAMP

35619-45C00

Unavailable

7

BULB (12V,21W)

09471-12045

$3.27

8

SCREW

35623-38A01

$5.05

9

NUT This part replaces 08316-26105.

08316-2010B

$3.43

10

LAMP ASSY, REAR TURN RH

35603-45C30

Unavailable

10

LAMP ASSY, REAR TURN RH | Includes Item(s) 11 - 18 This part replaces 35604-45C30.

35603-45C30

Unavailable

11

LENS

35652-38A21

$13.67

12

GASKET

35613-38A00

$9.74

13

REFLECTOR

35654-38A20

Unavailable

14

SCREW This part replaces 03211-04256.

03211-0425B

$2.70

15

GASKET

35627-43010

$2.28

16

BULB (12V,21W)

09471-12045

$3.27

17

STAY, TURN LAMP

35659-45C00

Unavailable

18

SCREW

35623-38A01

$5.05

19

SPACER

35695-17C00

$4.03

20

WASHER

09160-10094

$3.16

21

NUT | MODEL M/N This part replaces 08316-26105.

08316-2010B

$3.43

21

NUT | MODEL P This part replaces 08310-12108.

08310-00107

$2.19

22

RELAY ASSY, TURNSIGNAL | MODEL M/N This part replaces 38610-31310.

38610-31X50

$80.15

22

RELAY, TURN SIGNAL | MODEL P This part replaces 38610-45D00.

38610-45D01

$78.73
