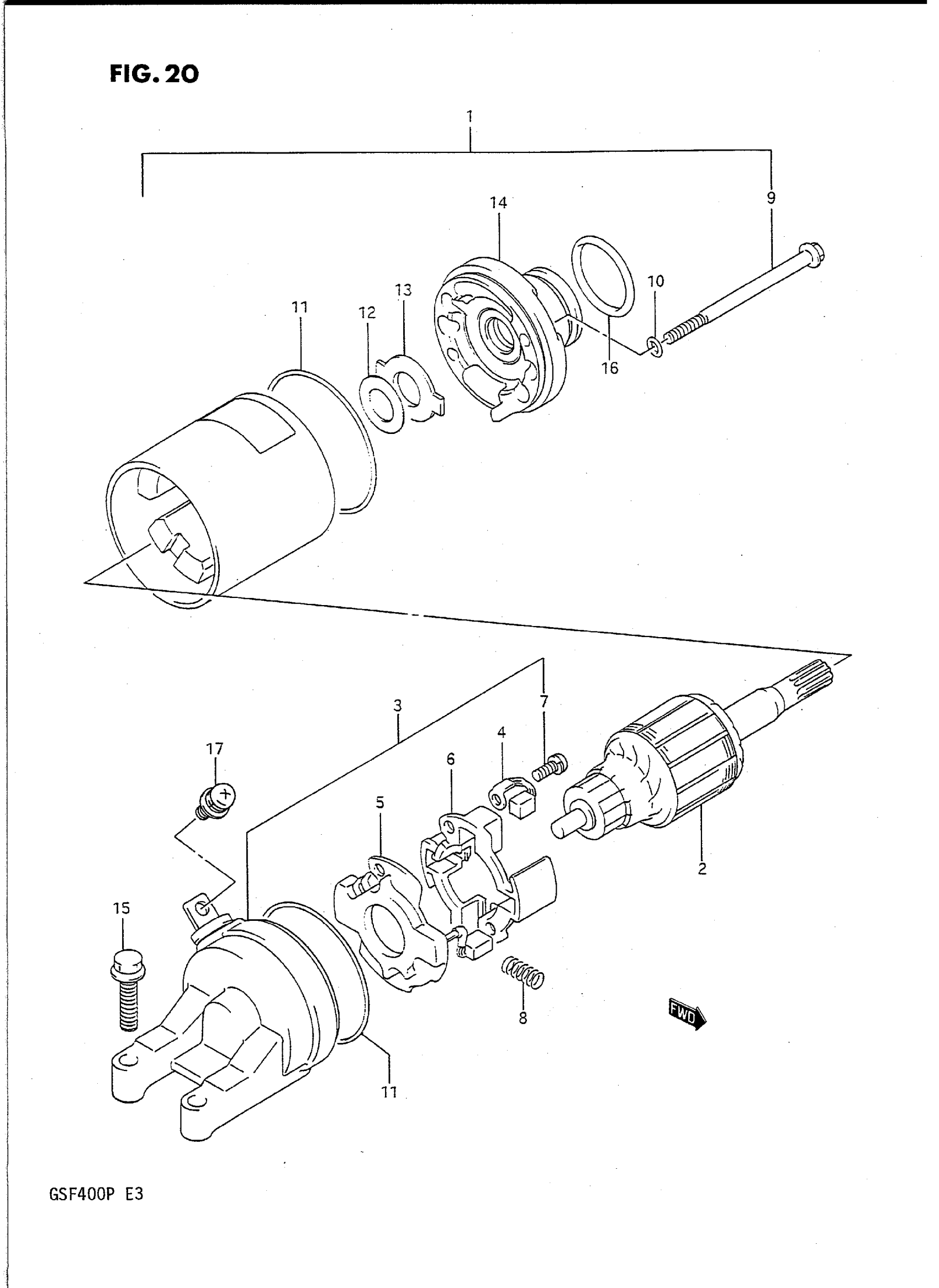

Suzuki GSF400P (1993) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 14 This part replaces 31100-10D00.

31100-08F00

Unavailable

2

ARMATURE

31310-32C10

Unavailable

3

FRAME ASSY, COMMUTATOR This part replaces 31175-32C10.

31175-32C11

Unavailable

4

BRUSH

31132-32C10

$21.77

5

BRUSH SUB ASSY This part replaces 31130-32C10.

31130-32C20

Unavailable

6

HOLDER, BRUSH

31133-32C10

Unavailable

7

SCREW This part replaces 31134-32C10.

02112-3412B

$2.30

8

SPRING

31135-32C10

Unavailable

9

BOLT

31281-32C10

Unavailable

10

O RING

31156-38300

$4.52

11

O RING

31264-32C10

$14.20

12

SHIM, NO.3

31361-38300

Unavailable

13

PLATE, LOCK

31361-32C10

Unavailable

14

BRACKET This part replaces 31150-32C10.

31150-06C00

Unavailable

15

BOLT (6X23)

09103-06066

Unavailable

16

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

17

SCREW | MODEL M

02112-75087

Unavailable

17

SCREW (5X8) | MODEL N/P

09137-05004

$2.17
