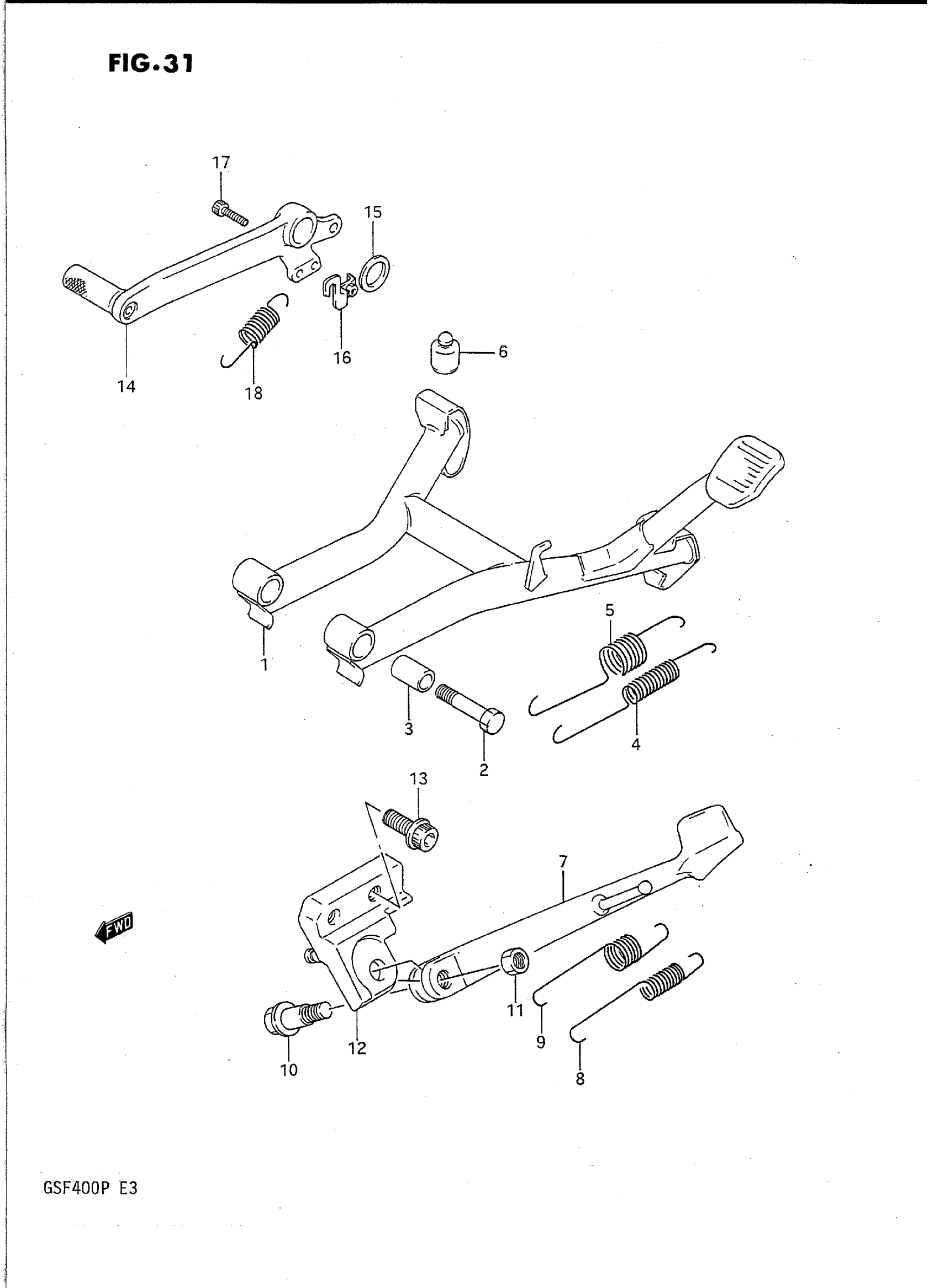

Suzuki GSF400P (1993) STAND Diagram

#

Description
Price

1

STAND, CENTER

42100-11D00

Unavailable

2

BOLT

09100-10257

Unavailable

3

SPACER

09180-10113

$14.43

4

SPRING, INNER

09443-14059

$9.73

5

SPRING, OUTER

09443-22013

$9.17

6

CUSHION

09321-10017

$6.38

7

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 42310-10D00-019.

42310-10D11

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 42310-10D10-019.

42310-10D11

Unavailable

8

SPRING, INNER

09443-15046

$8.32

9

SPRING, OUTER

09443-22017

$7.74

10

BOLT

09111-10046

Unavailable

11

NUT This part replaces 08310-22105.

09140-10043

$2.68

12

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 42330-10D00-019.

42330-10D12

Unavailable

12

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 42330-10D10-019.

42330-10D12

Unavailable

13

BOLT This part replaces 07120-10255.

07120-1025A

$4.32

14

PEDAL, BRAKE

43110-10D00

Unavailable

15

WASHER This part replaces 09161-18003.

09160-18022

$2.92

16

BRACKET, STOP SWITCH

43560-32C00

$5.67

17

BOLT This part replaces 07110-05167.

07130-05167

$3.15

18

SPRING

09443-13017

$6.63
