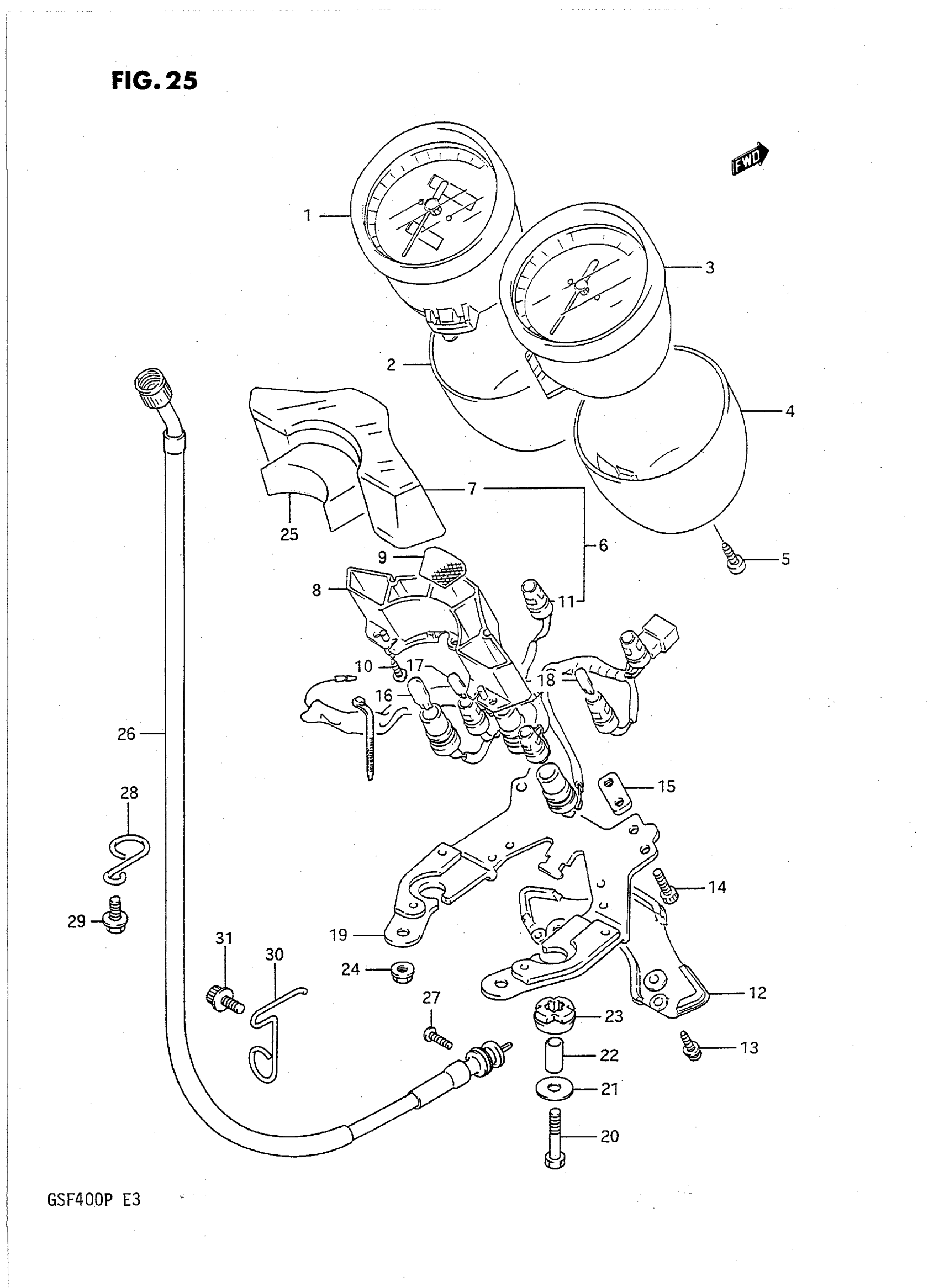

Suzuki GSF400P (1993) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-10D40

Unavailable

2

CASE, SPEEDOMETER

34111-10D00

Unavailable

3

TACHOMETER | MODEL M/N This part replaces 34210-10D00.

34210-10D01

Unavailable

3

TACHOMETER | MODEL P

34210-10D01

Unavailable

4

LOWER CASE, TAC This part replaces 34211-10D00.

34211-10D01

Unavailable

5

SCREW, METER

34183-10D10

Unavailable

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 11 This part replaces 36380-10D00.

36380-10D90

Unavailable

7

CASE, UPPER

36393-10D00

Unavailable

8

CASE, INNER

36381-10D00

Unavailable

9

NO DESCRIPTION AVAILABLE This part replaces 36300-10830.

36300-10840

Unavailable

10

SCREW This part replaces 03112-04129.

03111-0412A

$1.93

11

SOCKET

34170-10D00

Unavailable

12

CASE, LOWER

36383-10D00

Unavailable

13

SCREW

03111-14165

Unavailable

14

BOLT This part replaces 34199-10D00.

07130-0520B

$2.53

15

PLATE

34118-10D00

Unavailable

16

BULB (12V,3.4W)

09471-12082

Unavailable

17

BULB (12V,3W)

09471-12085

$5.01

18

BULB (12V,1.7W)

09471-12100

$4.13

19

BRACKET, METER

34950-11D00

Unavailable

20

BOLT | MODEL M/N This part replaces 01107-06305.

01500-0630A

$2.19

20

BOLT, REAR | MODEL P This part replaces 01107-06307.

01500-06307

$2.48

21

.WASHER (6.5X20X1.6) | MODEL M/N This part replaces 09160-06102.

09160-06088

$1.65

21

WASHER (6.5X20X1.6) | MODEL P This part replaces 09160-06020.

09160-06066

$1.89

22

SPACER (6.1X8X15.5) This part replaces 09180-06094.

09180-06251

$2.44

23

CUSHION

09320-09040

Unavailable

24

NUT This part replaces 08319-31055.

08319-3105B

$3.55

25

CUSHION, PILOT LAMP

34161-10D02

Unavailable

26

CABLE,SPEEDOMET This part replaces 34910-11D01.

34910-11D02

Unavailable

27

SCREW

02112-05164

$2.63

28

CLAMP, SPEEDOMETER CABLE

34938-10D00

Unavailable

29

BOLT, CLAMP This part replaces 01114-06125.

01550-0612A

$1.97

30

NO DESCRIPTION AVAILABLE This part replaces 34938-11D00.

34938-11D0V

Unavailable

31

BOLT, BRACE FRONT | MODEL M This part replaces 09106-10059.

09103-10195

Unavailable

31

BOLT (10X12) | MODEL N/P

09103-10195

Unavailable
