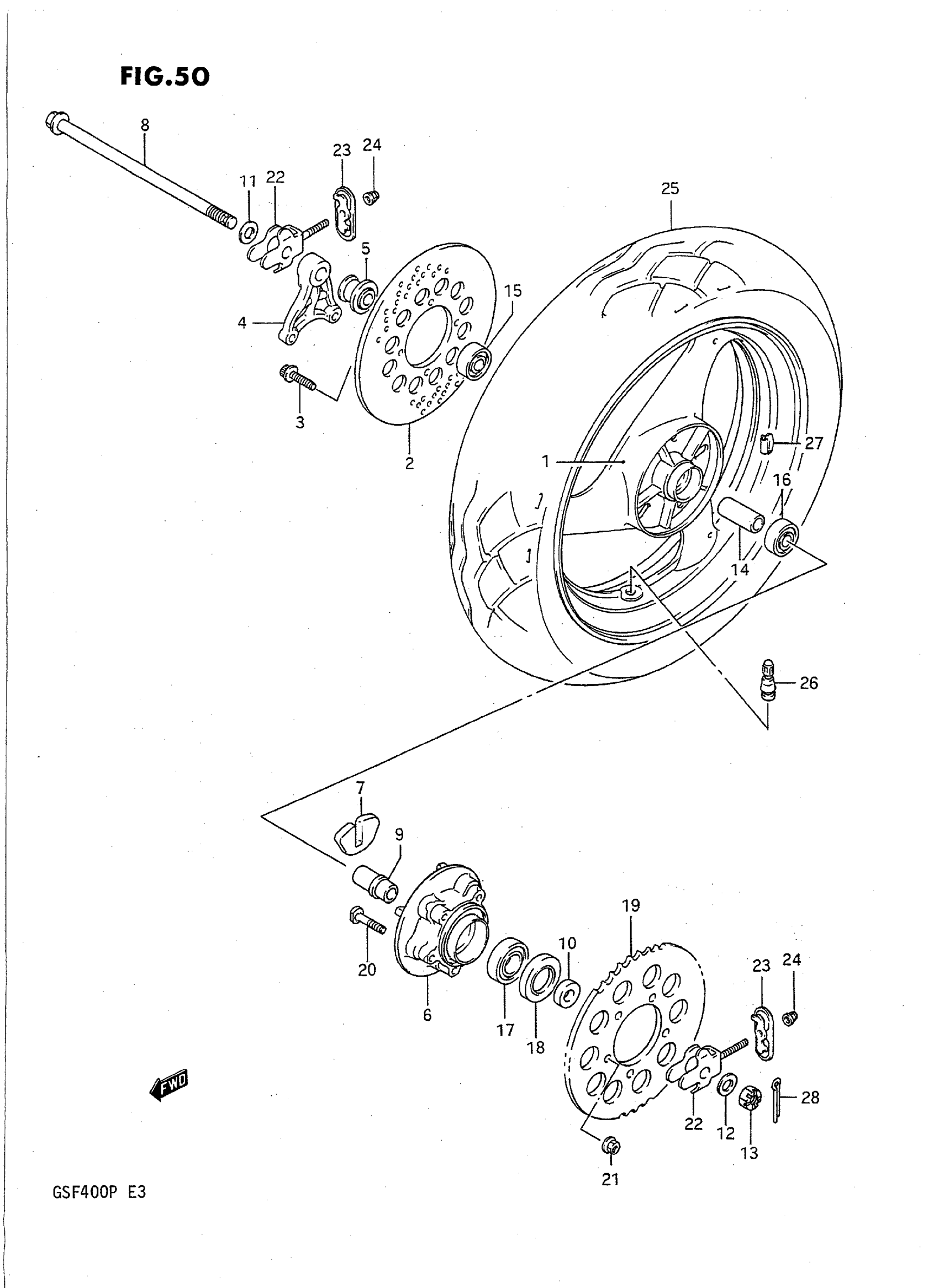

Suzuki GSF400P (1993) REAR WHEEL Diagram

NO DESCRIPTION AVAILABLE | MODEL M/N,FOR 019 This part replaces 64111-10D00-35B.

64111-10D01-35B

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M/N,FOR 24V,0WPMODEL P,FOR 019,0WP,1TY This part replaces 64111-10D00-0FP.

64111-10D01-0FP

Unavailable

NO DESCRIPTION AVAILABLE | MODEL M/N,FOR 07P This part replaces 64111-10D00-14L.

64111-10D01-14L

Unavailable

DISC, REAR BRAKE

69211-01D00

Unavailable

BOLT This part replaces 07120-08305.

07120-0830A

$3.86

BRACKET, CALIPER

69721-43400

Unavailable

SPACER, RH

64740-19C00

$22.22

DRUM, REAR SPROCKET

64611-17C01

Unavailable

ABSORBER, REAR HUB SHOCK

64651-32C00

$12.17

AXLE, REAR

64711-01D00

Unavailable

RETAINER, DRUM

64733-10D00

$32.43

SPACER, LH

64751-34C00

Unavailable

WASHER,17.5X34X This part replaces 09160-17049.

09160-17501-XC0

$2.28

WASHER, LH

09160-17048

Unavailable

NUT, HUB This part replaces 08314-41168.

08314-4016A

$3.79

SPACER (17.5X25X78)

09180-17071

Unavailable

BEARING This part replaces 08123-63037.

08123-6303B

$15.56

BEARING, LH

08143-63037

$22.58

BEARING (25X52X15)

09262-25073

$25.92

SEAL,OIL (35X62X8)

09285-35001

$10.19

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 64511-10D00.

64511-10D01

Unavailable

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 64511-33C20.

64511-33C22

Unavailable

BOLT

09119-10037

$4.32

NUT

08319-31107

$2.73

ADJUSTER, CHAIN

61410-10D00

Unavailable

GUIDE, CHAIN ADJUSTER

61420-10D00

$14.83

NUT

08319-31087

$2.32

TIRE, REAR (150/70-17 69H)

65110-10D10

Unavailable

VALVE ASSY

43130-24A00

$8.85

BALANCER, WHEEL (10G)

55411-00A00

$1.49

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

$7.05

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

Unavailable

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49
