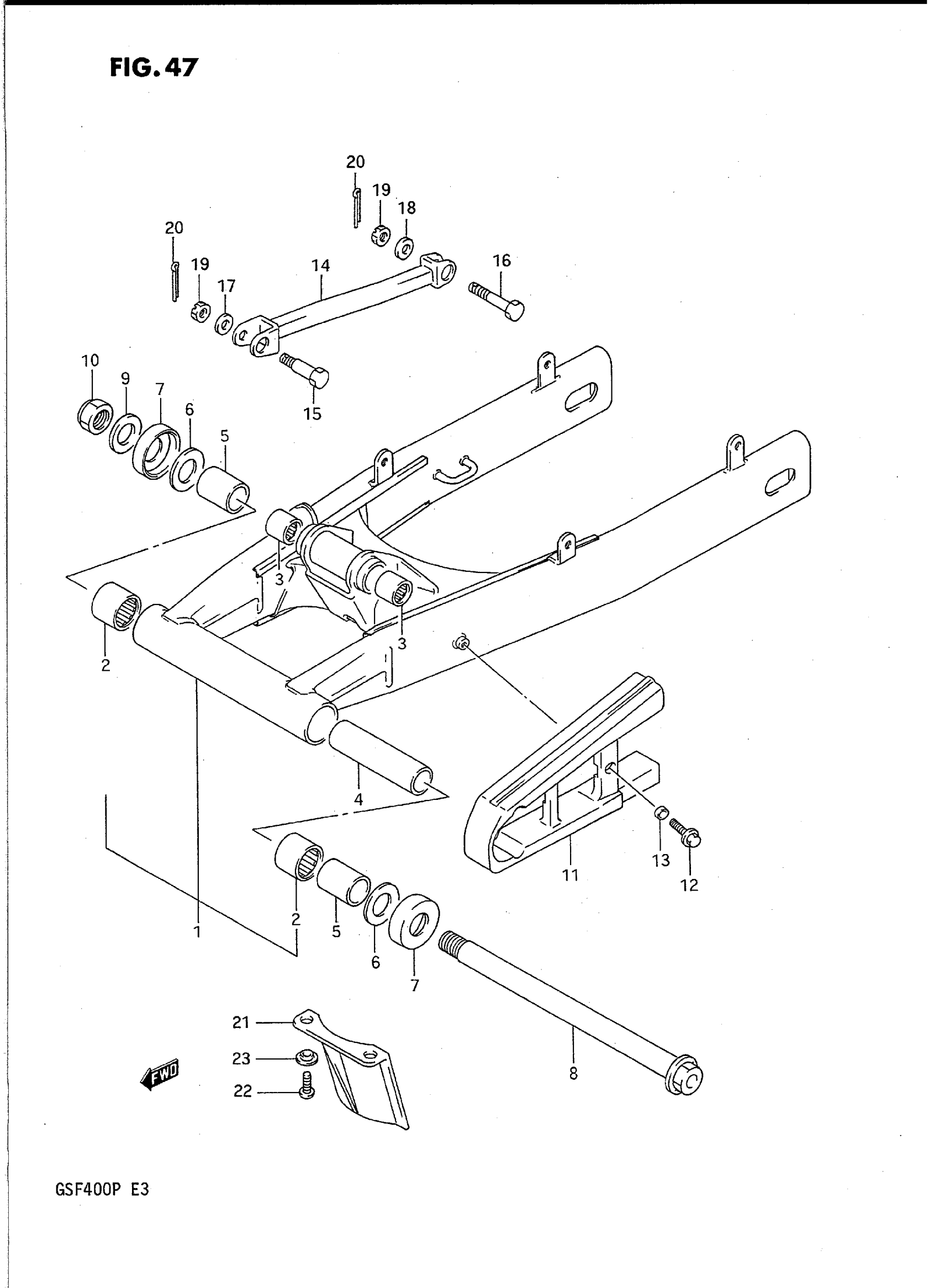

Suzuki GSF400P (1993) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M,FOR 24V->61000-10D10-0FP This part replaces 61000-10D01-0FP.

61000-10D10-13L

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M/N,FOR 07P->61000-10D10-0NH This part replaces 61000-10D01-0NH.

61000-10D10-0NH

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL M/N,FOR 019->61000-10D10-019 This part replaces 61000-10D01-019.

61000-10D10-019

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL N,FOR 0WP->61000-10D10-0WP This part replaces 61000-10D01-0WP.

61000-10D10-0WP

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL P,FOR 019

61000-10D10-019

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL P,FOR 0WP

61000-10D10-0WP

Unavailable

1

SWINGING ARM ASSY, REAR (RED) | MODEL P,FOR 1TY; Includes Item(s) 2 - 4

61000-10D10-1UG

Unavailable

2

BEARING (25X33X30)

09263-25024

$25.92

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

SPACER (20.8X27.2X146)

09180-20108

Unavailable

5

SPACER, PIVOT BEARING

61251-17C00

$43.37

6

THRUST WASHER (T:1)

08211-20381

$4.10

7

COVER,RR SWGARM This part replaces 61262-10D00.

61262-10D01

Unavailable

8

SHAFT, PIVOT

61211-06C01

Unavailable

9

WASHER This part replaces 08322-11188.

08322-0118B

$2.70

10

NUT

09159-18007

$19.68

11

BUFFER,CHAIN TO This part replaces 61273-10D01.

61273-10D02

Unavailable

12

BOLT This part replaces 09116-06111.

09116-06152

$2.36

13

SPACER (6.5X9X3.8) This part replaces 09180-06142.

09180-06255

$2.53

14

TORQIELINK, REAR (BLACK) | MODEL M,FOR 24V This part replaces 64310-10D00-0FP.

64310-10D00-019

Unavailable

14

TORQIELINK, REAR (BLACK) | MODEL M/N,FOR 07P This part replaces 64310-10D00-0NH.

64310-10D00-019

Unavailable

14

TORQUE LINK, REAR (BLACK) | MODEL M/N,FOR 019MODEL P,FOR 019,0WP,1TY

64310-10D00-019

Unavailable

14

TORQIELINK, REAR (BLACK) | MODEL N,FOR 0WP This part replaces 64310-10D00-0WP.

64310-10D00-019

Unavailable

15

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

16

BOLT, REAR

09101-10036

$5.28

17

WASHER, REAR This part replaces 09160-10057.

09160-10142

$2.34

18

WASHER This part replaces 09160-10069.

09160-10005

$1.87

19

NUT This part replaces 08314-41108.

08314-4010B

$2.50

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

21

MUD GUARD, REAR UNIT | MODEL PFOR 61000-10D10-COLOR This part replaces 63411-42A00.

63411C42A00J000

Unavailable

22

SCREW | MODEL P

02142-06167

$1.49

23

WASHER | MODEL P This part replaces 09169-06025.

09169-06010

$2.60
