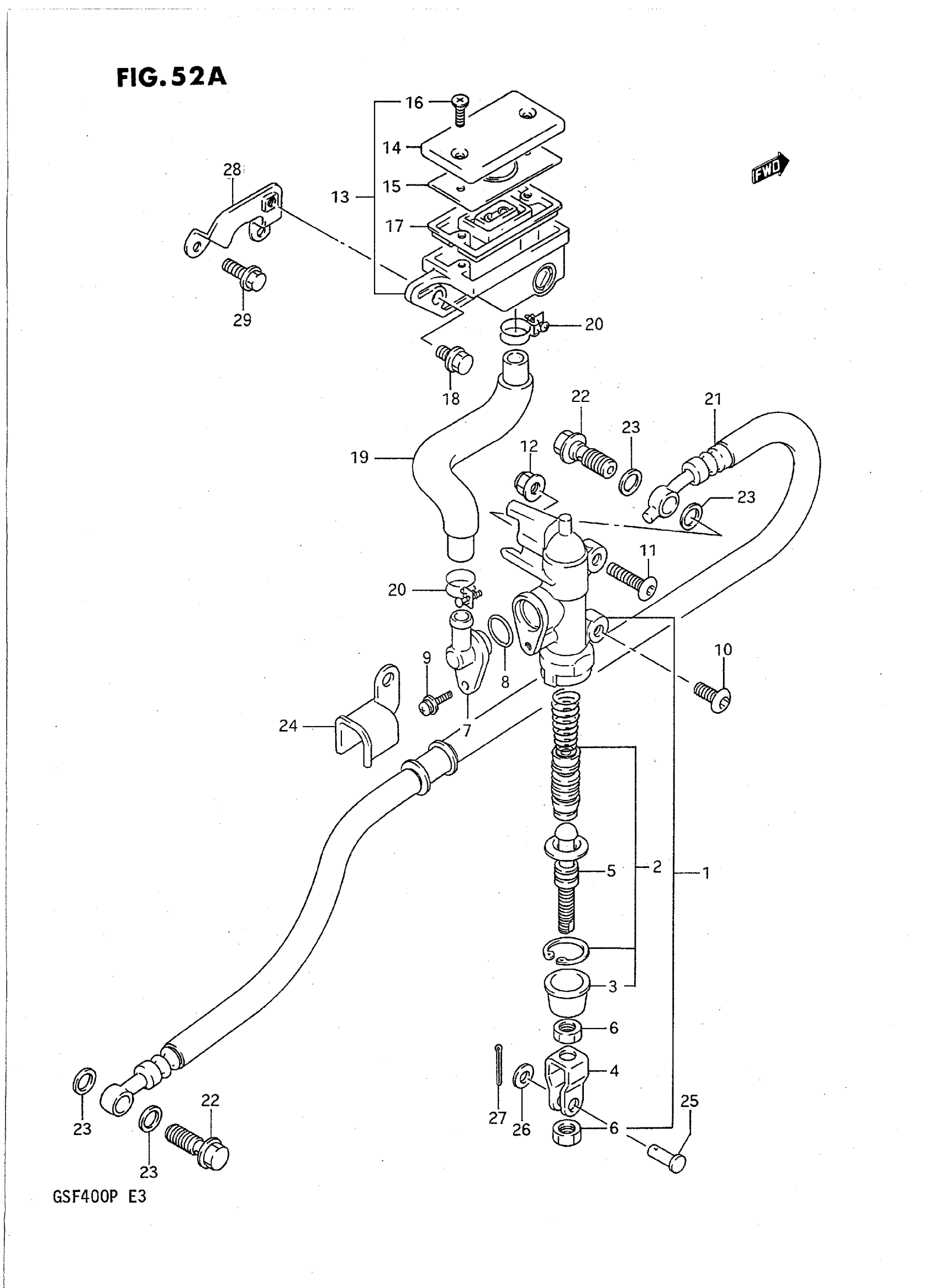

Suzuki GSF400P (1993) REAR MASTER CYLINDER (MODEL P) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-10D01

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-27A30

$13.81

5

ROD, PUSH

69670-10D01

Unavailable

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-05A00

$5.56

8

O RING

69686-34200

$2.93

9

.SCREW This part replaces 02112-74125.

02112-7412A

$2.12

10

SCREW (6X16)

09139-06030

$3.70

11

SCREW, UPPER (6X30)

09139-06042

$5.55

12

NUT

08319-31067

$2.03

13

TANK ASSY, REAR RESERVOIR | Includes Item(s) 14 - 17

69740-10D00

Unavailable

14

CAP

59669-41C00

$32.56

15

PLATE

59668-41C00

$9.32

16

SCREW

69689-49300

$1.91

17

DIAPHRAGM

59667-49460

$9.78

18

BOLT, CLAMP This part replaces 01517-06125.

01550-0612A

$1.97

19

HOSE, RESERVOIR TANK

69731-10D00

Unavailable

20

CLAMP

09400-16306

Unavailable

21

HOSE, REAR BRAKE

69480-10D10

Unavailable

22

UNION BOLT (10X24)

09360-10017

$3.42

23

WASHER (10X15X1.5)

09161-10009

$1.84

24

GUIDE, BRAKE HOSE

69243-10D00

Unavailable

25

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

26

WASHER This part replaces 08322-21067.

08322-01067

$2.13

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

28

PLATE, RESERVOIR TANK

69780-10D00

Unavailable

29

BOLT This part replaces 01517-06164.

01550-0616A

$1.97
