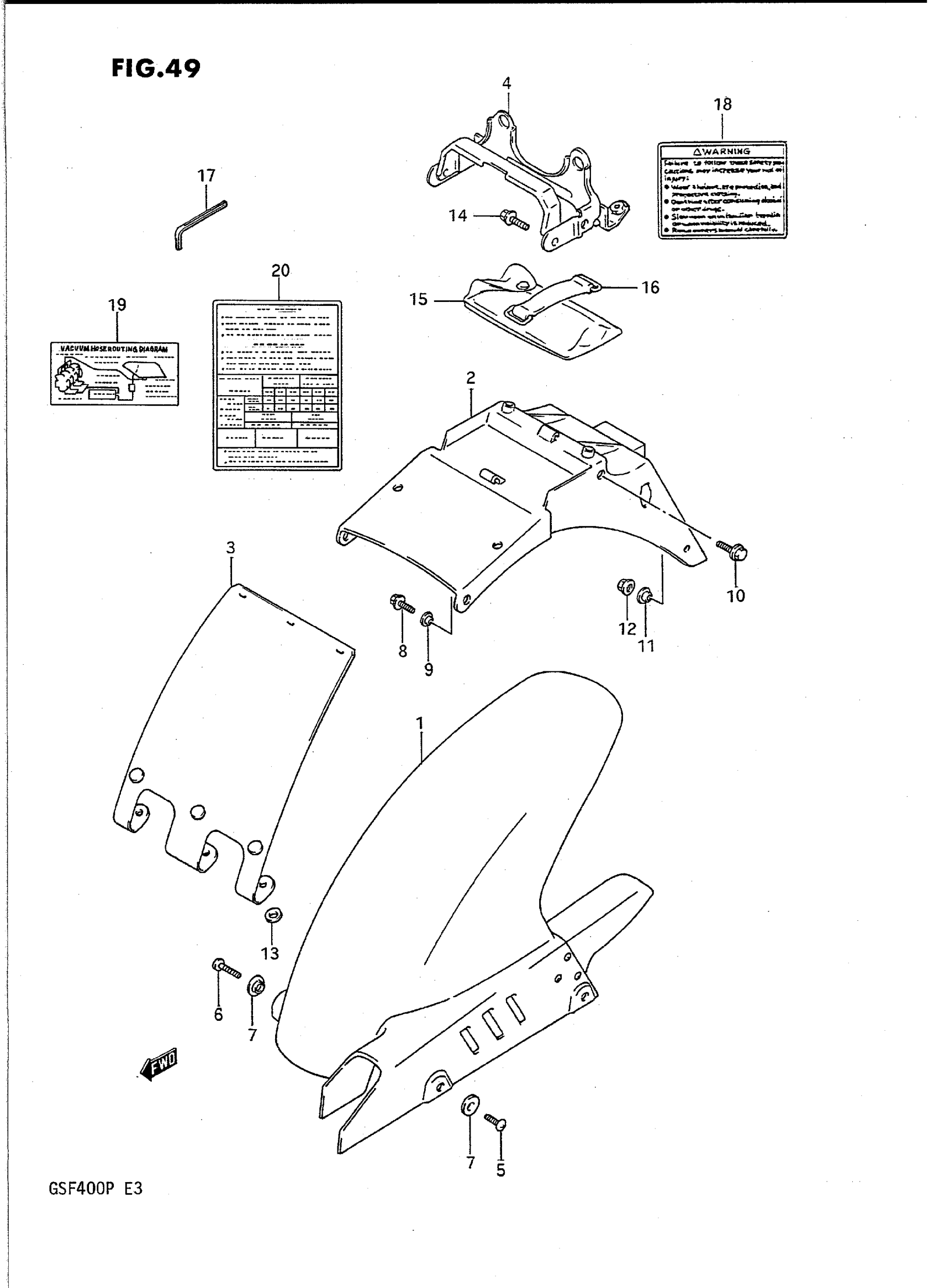

Suzuki GSF400P (1993) REAR FENDER Diagram

#

Description
Price

1

FENDER, RR LOWE | MODEL M/N This part replaces 63110-10D00.

63110-10D11

Unavailable

1

FENDER, RR LOWE | MODEL P This part replaces 63110-10D01.

63110-10D11

Unavailable

2

BODY, REAR FENDER UPPER

63113-10D20

Unavailable

3

MUD GUARD ASSY, REAR FENDER

63410-10D00

Unavailable

4

BRACKET, FRAME COVER

47170-10D10

Unavailable

5

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

6

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

7

WASHER

09169-06026

$2.20

8

BOLT This part replaces 01517-06167.

01550-06167

$2.30

9

WASHER (6.3X16X1)

09169-06053

$1.49

10

BOLT This part replaces 01517-08307.

01550-08307

$3.54

11

WASHER

09169-08034

$2.36

12

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

13

WASHER, CLUTCH RLSE NO.2 This part replaces 09160-06069.

09160-06052

$1.49

14

BOLT This part replaces 01517-06167.

01550-06167

$2.30

15

TOOL ASSY This part replaces 09800-20034.

09800-21006

Unavailable

16

BAND

09462-00034

$4.24

17

SPANNER

09816-00103

$6.17

18

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

19

LABEL, VACUUM HOSE ROUTING | CALIFORINA ONLY

68387-10D10

Unavailable

20

LABEL, TIRE AIR PRESSURE

68332-10D11

Unavailable
