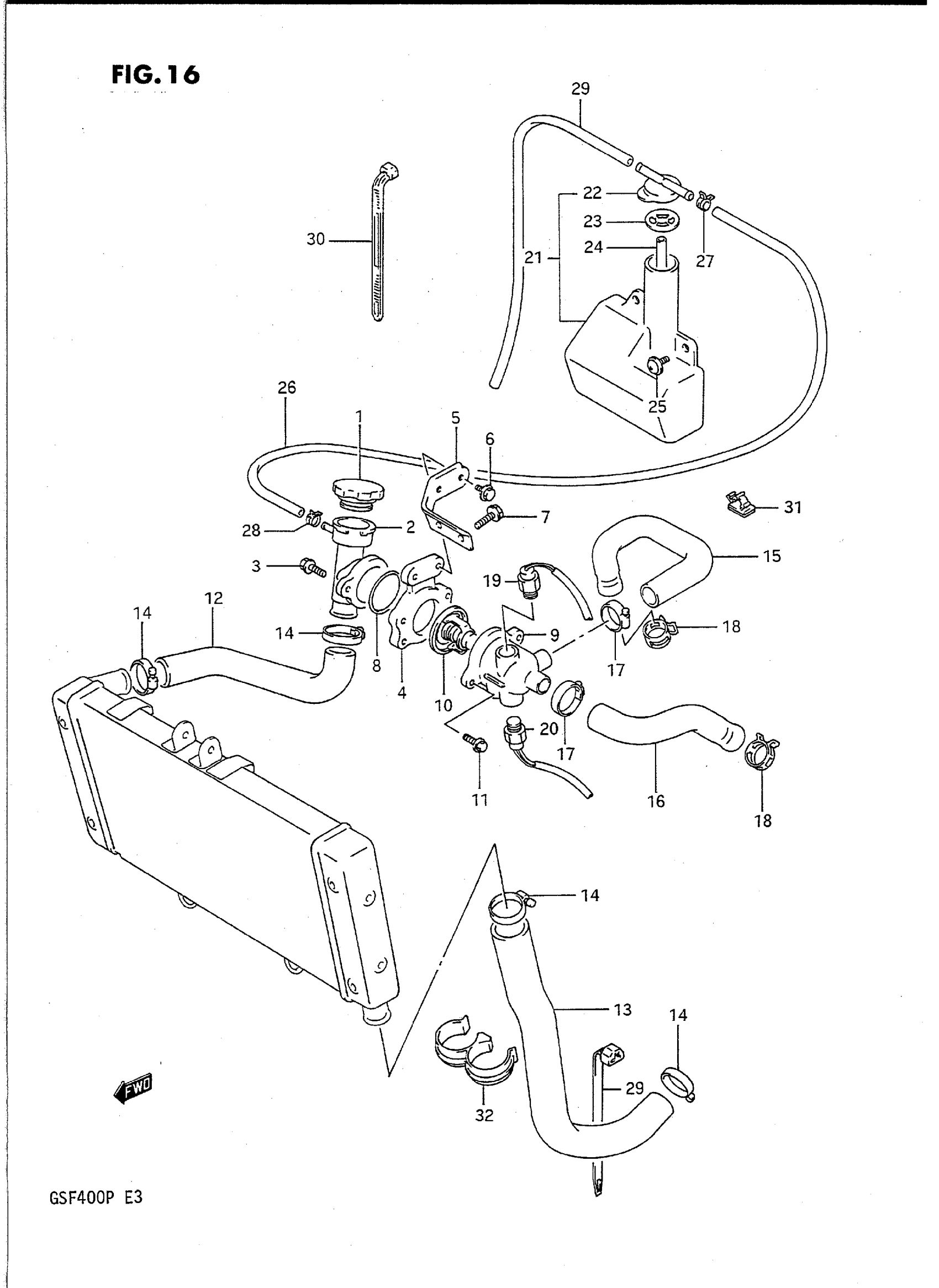

Suzuki GSF400P (1993) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR 1.1 This part replaces 17730-14501.

17730-19D11

$42.32

2

CONDUCTION, RADIATOR

17791-06C00

Unavailable

3

BOLT This part replaces 01517-06167.

01550-06167

$2.30

4

BRACKET, CONDUCTION

17792-12C00

Unavailable

5

BRACKET, CONDUCTION BRACKET

17793-10D00

Unavailable

6

BOLT This part replaces 01517-06108.

01550-06107

$2.80

7

BOLT This part replaces 01517-06207.

01550-06207

$2.30

8

0 RING (D:2.4,ID:43.2)

09280-44005

$3.72

9

CONNECTOR, THERMOSTAT INLET

17662-10D00

Unavailable

10

THERMOSTAT,WATE This part replaces 17670-32C01.

17670-32C02

$36.31

11

BOLT This part replaces 01517-06207.

01550-06207

$2.30

12

HOSE, RADIATOR INLET

17851-10D00

Unavailable

13

HOSE, RADIATOR OUTLET NO.1

17852-10D00

Unavailable

14

CLAMP This part replaces 09402-30502.

09402-32511

$10.86

15

HOSE, RADIATOR JOINT NO.1

17854-10D01

Unavailable

16

HOSE, RADIATOR JOINT NO.2

17855-10D00

Unavailable

17

CLAMP This part replaces 09402-25502.

09402-28511

$6.88

18

CLIP

09401-21402

Unavailable

19

SWITCH ASSY, WATER TEMPERATUR

34850-10D00

$118.08

20

SWITCH, RADIATOR FAN

17680-06C01

Unavailable

21

TANK ASSY, RESERVOIR | Includes Item(s) 22 - 24

17910-10D00

Unavailable

22

CAP, WATER RESERVOIR TANK

17932-82001

Unavailable

23

RUBBER, CAP

17933-82002

Unavailable

24

HOSE | L:300->150 This part replaces 09352-70121-300.

09352-70121-600

$13.02

25

SCREW (6X16)

09136-06017

$2.59

26

HOSE, RESERVOIR TANK INLET

17981-10D00

Unavailable

27

CLIP

09401-10407

Unavailable

28

CLIP This part replaces 09401-08407.

09401-08411

$1.78

29

HOSE, RESERVOIR TANK OVERFLOW This part replaces 09359-50901-300.

09359-50901-980

$23.07

30

CLAMP (L:250)

09407-25401

$4.66

31

CLAMP

09408-00143

Unavailable

32

CLAMP

09408-00144

Unavailable
