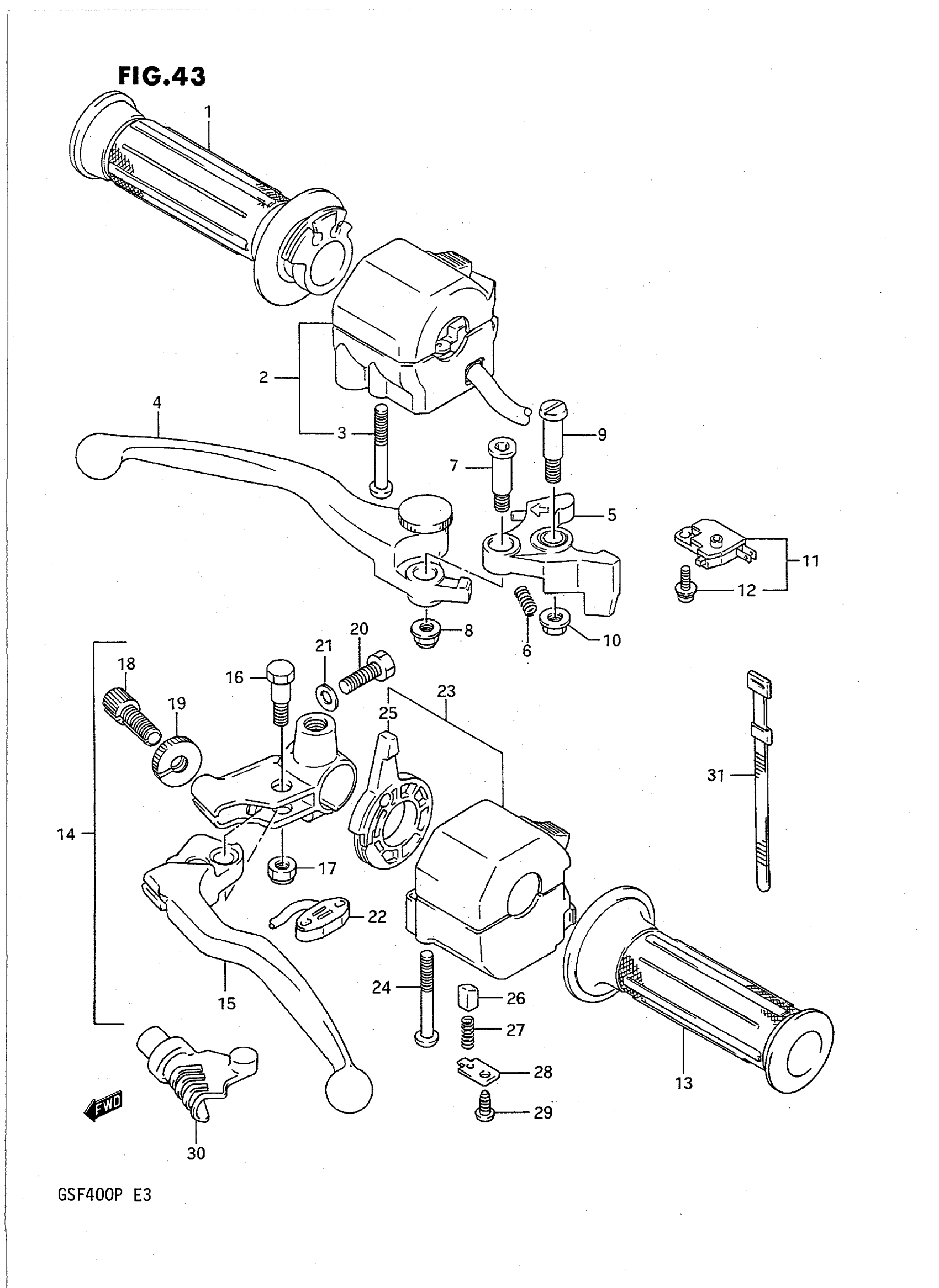

Suzuki GSF400P (1993) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-34310

Unavailable

2

SWITCH ASSY, HANDLE RH | MODEL M/N This part replaces 37200-45C10.

37200-45C12

Unavailable

2

SWITCH ASSY, RH | MODEL P; Includes Item(s) 3 This part replaces 37200-45C20.

37200-45C22

Unavailable

3

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

4

ADJUST LEVER

57420-32C00

$28.92

5

KNOCKER | Includes Item(s) 6 This part replaces 57430-32C00.

57430-32C10

$60.37

6

SPRING

57438-32C00

$5.67

7

BOLT, LEVER This part replaces 57437-32C00.

57437-32C01

$8.60

8

NUT This part replaces 08319-31065.

08319-3106A

$2.03

9

BOLT, LEVER

57431-17C00

$7.11

10

NUT This part replaces 08316-16064.

08316-1006B

$2.50

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C00.

57460-14J02

$38.46

12

SCREW

57465-17C00

$2.19

13

GRIP, LH

57211-34310

$17.98

14

LEVER ASSY,CLUT | Includes Item(s) 15 - 22 This part replaces 57500-10D10.

57500-10D31

$46.35

15

LEVER, CLUTCH

57620-27A31

$22.77

16

BOLT This part replaces 57431-33450.

57531-14A00

$7.46

17

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

18

ADJUSTER

57441-11010

$5.62

19

NUT

57442-11010

$2.79

20

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

21

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

22

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

Unavailable

23

SWITCH ASSY,HAN | Includes Item(s) 24 - 29 This part replaces 37400-44400.

37400-49E00

Unavailable

24

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

25

LEVER, CHOCK This part replaces 37481-30B00.

37481-30B01

Unavailable

26

PIECE

37482-30B00

Unavailable

27

SPRING

37483-30B00

Unavailable

28

PLATE

37486-30B00

Unavailable

29

SCREW This part replaces 03511-04125.

03511-0412A

$1.49

30

COVER,CLUTCH LE This part replaces 57661-45C00.

57661-45C01

$7.93

31

CLAMP

09407-12402

$3.04
