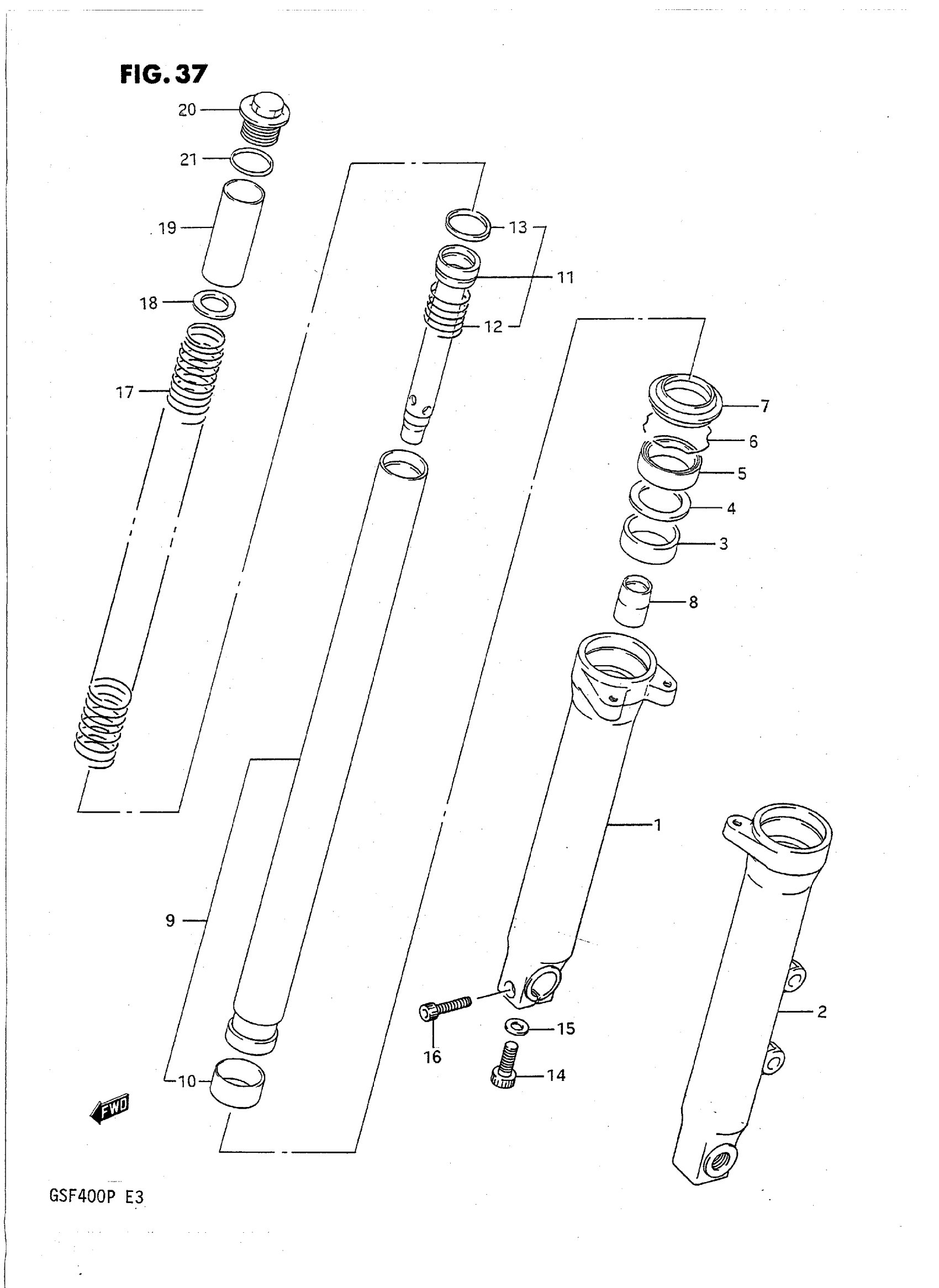

Suzuki GSF400P (1993) FRONT DAMPER Diagram

#

Description
Price

DAMPER ASSY, RH | MODEL M This part replaces 51103-10D70.

51103-10DF0

Unavailable

DAMPER ASSY, RH | MODEL N/P

51103-10DF0

Unavailable

DAMPER ASSY, LH | MODEL M This part replaces 51104-10D70.

51104-10DF0

Unavailable

DAMPER ASSY, LH | MODEL N/P; Includes Item(s) 1 - 21

51104-10DF0

Unavailable

1

TUBE, OUTER RH

51130-11D00

Unavailable

2

TUBE, OUTER LH | MODEL M This part replaces 51140-11D00.

51140-11D01

Unavailable

2

TUBE, OUTER LH | MODEL N/P

51140-11D01

Unavailable

3

METAL, SLIDE This part replaces 51167-28C00.

51167-26E10

$24.52

4

WASHER

51158-05A00

$5.83

5

SEAL, OIL This part replaces 51153-06C00.

51153-27C20

$13.63

6

RING, STOPPER

51156-49440

$5.05

7

SEAL, DUST This part replaces 51173-06C00.

51173-46E00

$23.07

8

PIECE, OIL LOCK

51195-06C00

$16.76

9

TUBE, INNER | MODEL M

51110-10D70

Unavailable

9

TUBE, INNER | MODEL N/P

51110-10D10

Unavailable

10

.PISTON This part replaces 51121-28C00.

51121-26E10

$30.22

11

CYLINDER

51146-06C00

Unavailable

12

SPRING, REBOUND

51177-06C00

$13.05

13

RING, PISTON

51196-06C00

Unavailable

14

BOLT, CYLINDER

51147-16510

$4.34

15

GASKET

51148-41310

$2.26

16

BOLT This part replaces 07110-08407.

07130-08407

$3.14

17

SPRING, MAIN | MODEL M This part replaces 51171-10D70.

51171-10D40

Unavailable

17

SPRING, MAIN | MODEL N/P

51171-10D40

Unavailable

18

WASHER This part replaces 51172-06C00.

51356-10D03

$7.50

19

SPACER

51176-10D40

Unavailable

20

CAP, FORK

51351-10D00

$54.75

21

O RING This part replaces 51117-06C10.

09280-32001

$2.06
