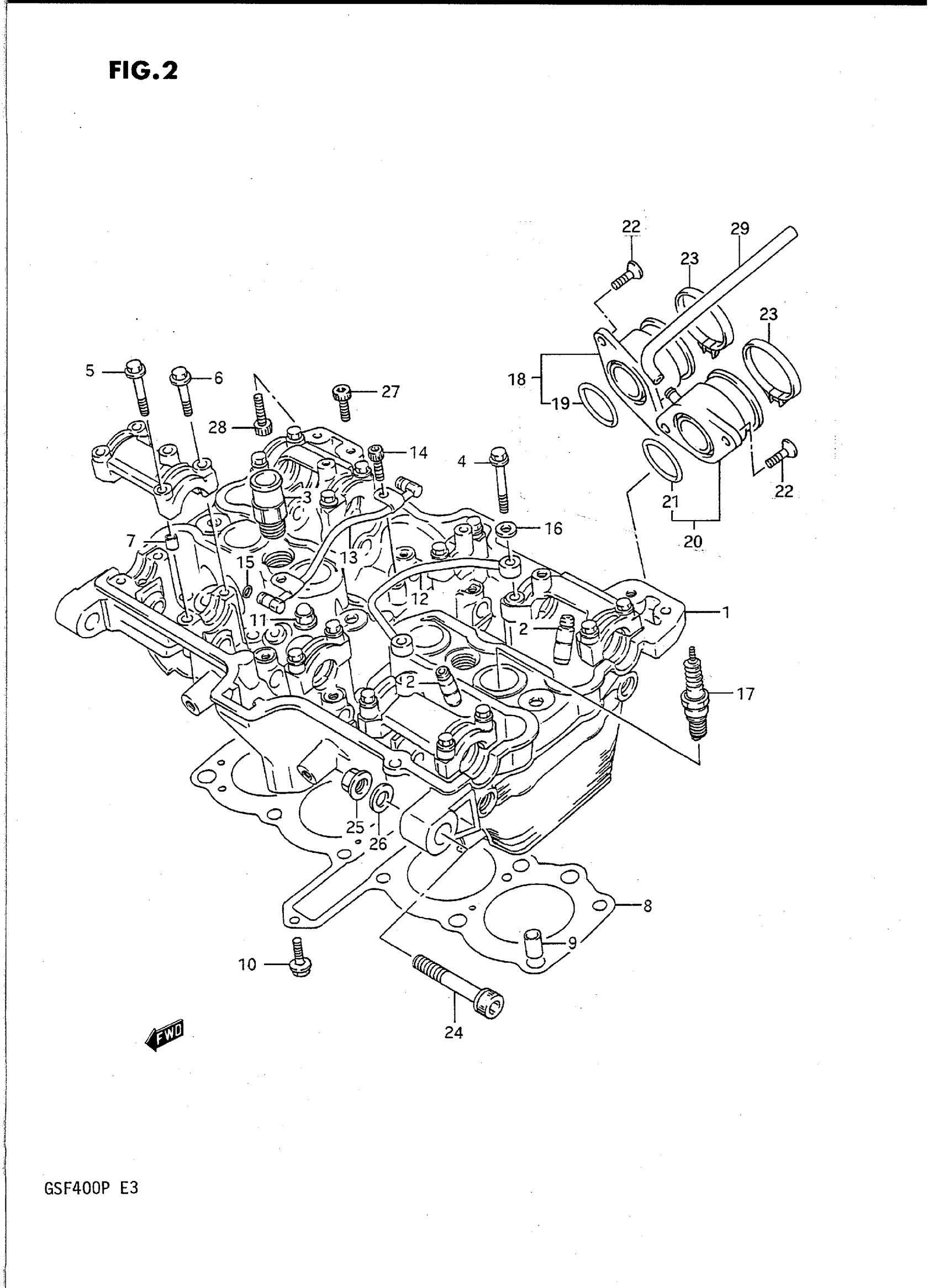

Suzuki GSF400P (1993) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | MODEL M This part replaces 11100-10D00.

11100-10D01

Unavailable

1

HEAD ASSY, CYLINDER | MODEL N/P; Includes Item(s) 2 - 7

11100-10D01

Unavailable

2

GUIDE,VALVE (OS:0.3) This part replaces 11115-32C70.

11115-32C71

Unavailable

3

UNION, WATER HOSE | MODEL M/N This part replaces 11181-32C03.

11181-32C04

Unavailable

3

UNION, WATER HOSE | MODEL P

11181-32C04

Unavailable

4

BOLT (6X45) This part replaces 09103-06013.

09103-06165

$3.03

5

BOLT (6X39)

09103-06026

$1.98

6

BOLT (6X35)

09103-06108

$2.23

7

PIN

09206-08001

$1.78

8

GASKET, CYL HEA This part replaces 11141-32C01.

11141-32C10

$63.90

9

PIN

04211-11189

$1.78

10

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

11

NUT This part replaces 08313-21087.

08313-20087

$2.19

12

PIPE, OIL CYLINDER HEAD LH

12961-30B01

Unavailable

13

PIPE, OIL CYLINDER HEAD RH

12961-30B10

Unavailable

14

BOLT This part replaces 07110-06126.

07130-0612A

$2.50

15

O RING

09280-05004

$2.11

16

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

17

SPARK PLUG (NGK,CR8EK) | MODEL M/N

09482-00412

$10.62

17

SPARK PLUG (ND,U24ETR) | MODEL M/N

09482-00413

$13.17

17

SPARK PLUG (NGK,CR9EK) | MODEL P

09482-00410

$11.59

17

SPARK PLUG (DENSO,U27ESR-N) | MODEL P This part replaces 09482-00411.

09482-00459

$6.09

17

SPARK PLUG (NGK,CR9EK) | OPT,MODEL M/N

09482-00410

$11.59

17

SPARK PLUG (NGK,CR7EK) | OPT,MODEL M/N

09482-00414

$12.50

17

SPARK PLUG (DENSO,U27ESR-N) | OPT,MODEL M/N This part replaces 09482-00411.

09482-00459

$6.09

17

SPARK PLUG (ND,U22ETR) | OPT,MODEL M/N

09482-00415

Unavailable

17

SPARK PLUG (NGK,CR10EK) | OPT,MODEL P

09482-00462

$12.50

17

SPARK PLUG (ND,U31ETR) | OPT,MODEL P

09482-00463

$15.42

18

PIPE, INTAKE | ML,MR,RH; Includes Item(s) 19

13101-10D00

Unavailable

19

O RING This part replaces 09280-36002.

09280-36004

$13.98

20

PIPE, INTAKE | LH; Includes Item(s) 21

13102-10D00

Unavailable

21

O RING This part replaces 09280-36002.

09280-36004

$13.98

22

SCREW (6X16)

09126-06014

$2.06

23

CLAMP

09402-48208

$4.64

24

BOLT

07110-10707

Unavailable

25

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.55

26

WASHER

09160-10005

$1.87

27

BOLT This part replaces 07130-08255.

07130-0825B

$3.37

28

BOLT, STEERING DAMPER | MODEL M/N This part replaces 07110-08305.

07130-0830A

$1.74

28

BOLT | MODEL P This part replaces 07130-08255.

07130-0825B

$3.37

29

HOSE,5X10X600 | ~E.NO.120782L:300->220 This part replaces 09352-50823-300.

44421-13ER0

$10.06

29

HOSE,5X10X600 | E.NO.120783~L:300->220 This part replaces 09354-50103-300.

44421-13ER0

$10.06
