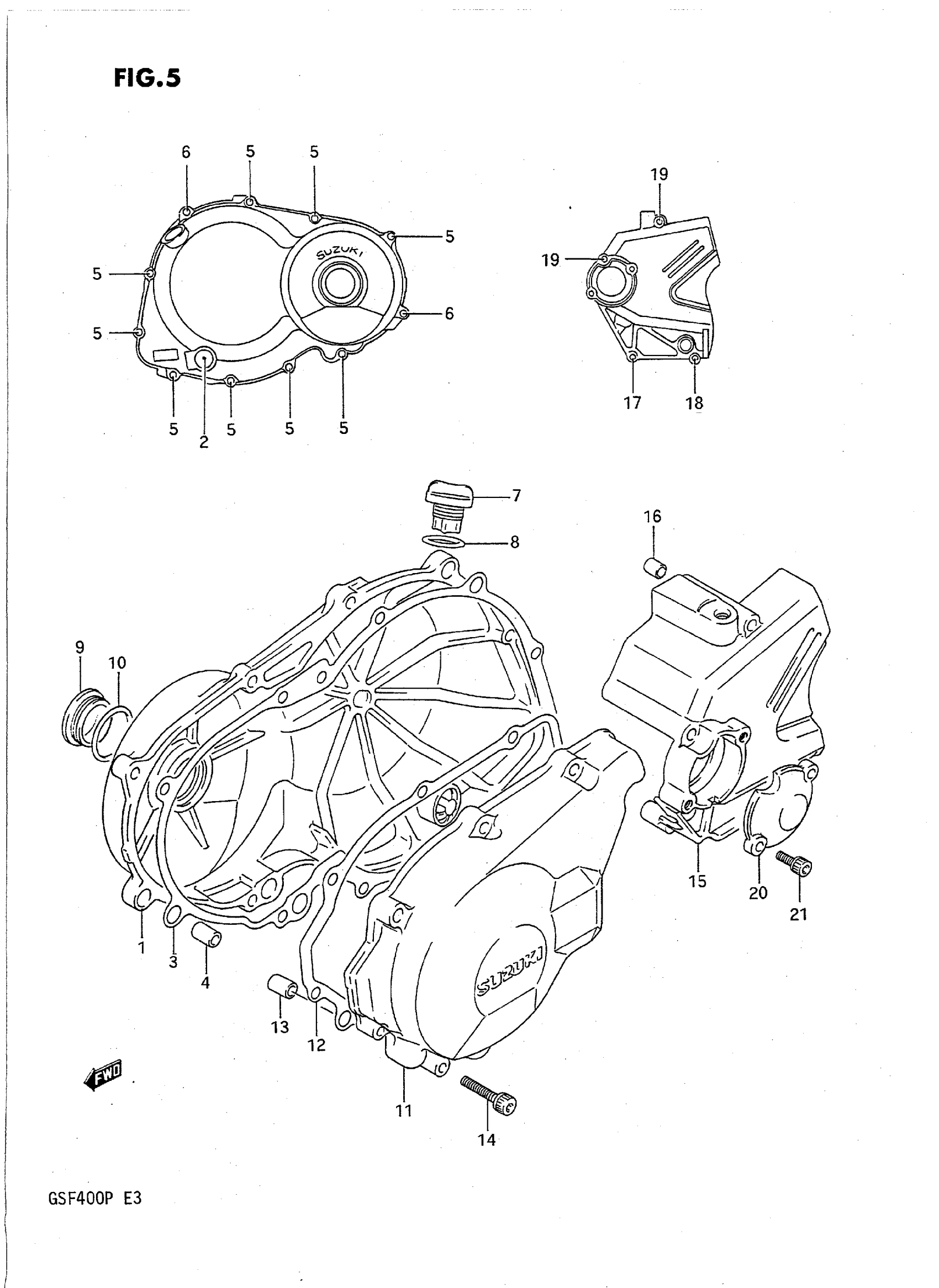

Suzuki GSF400P (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH | Includes Item(s) 2 This part replaces 11340-10D00.

11340-10D01

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER (NA) | MODEL M This part replaces 11482-32C01.

11482-32C11

$32.17

3

GASKET, CLUTCH COVER (NA) | MODEL N/P

11482-32C11

$32.17

4

PIN

04211-09189

$1.65

5

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

6

BOLT This part replaces 07110-06355.

07130-0635B

$3.37

7

PLUG, ENGINE OIL FILTER This part replaces 11971-20A00.

11971-12C51

$6.46

8

O RING

09280-17003

$1.65

9

PLUG, SHAFT HOLE This part replaces 09259-36007.

09259-36016-20H

$13.80

10

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

11

COVER, STARTER GEAR

11351-10D01

Unavailable

12

GASKET, STARTER GEAR COVER (NA) | MODEL M This part replaces 11483-30B01.

11483-30B10

$17.37

12

GASKET, STARTER GEAR COVER | MODEL N/P

11483-30B10

$17.37

13

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

14

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

15

COVER, SPROCKET

11361-10D00

Unavailable

16

PIN

04211-09129

$1.65

17

BOLT This part replaces 07110-06355.

07130-0635B

$3.37

18

BOLT This part replaces 07110-06605.

07130-0660B

$4.68

19

BOLT This part replaces 07110-06805.

07130-0680B

$4.68

20

CAP, CLUTCH RELEASE ADJUST

11387-10D00

Unavailable

21

BOLT (6X12) This part replaces 09106-06055.

09106-06075

$2.48
