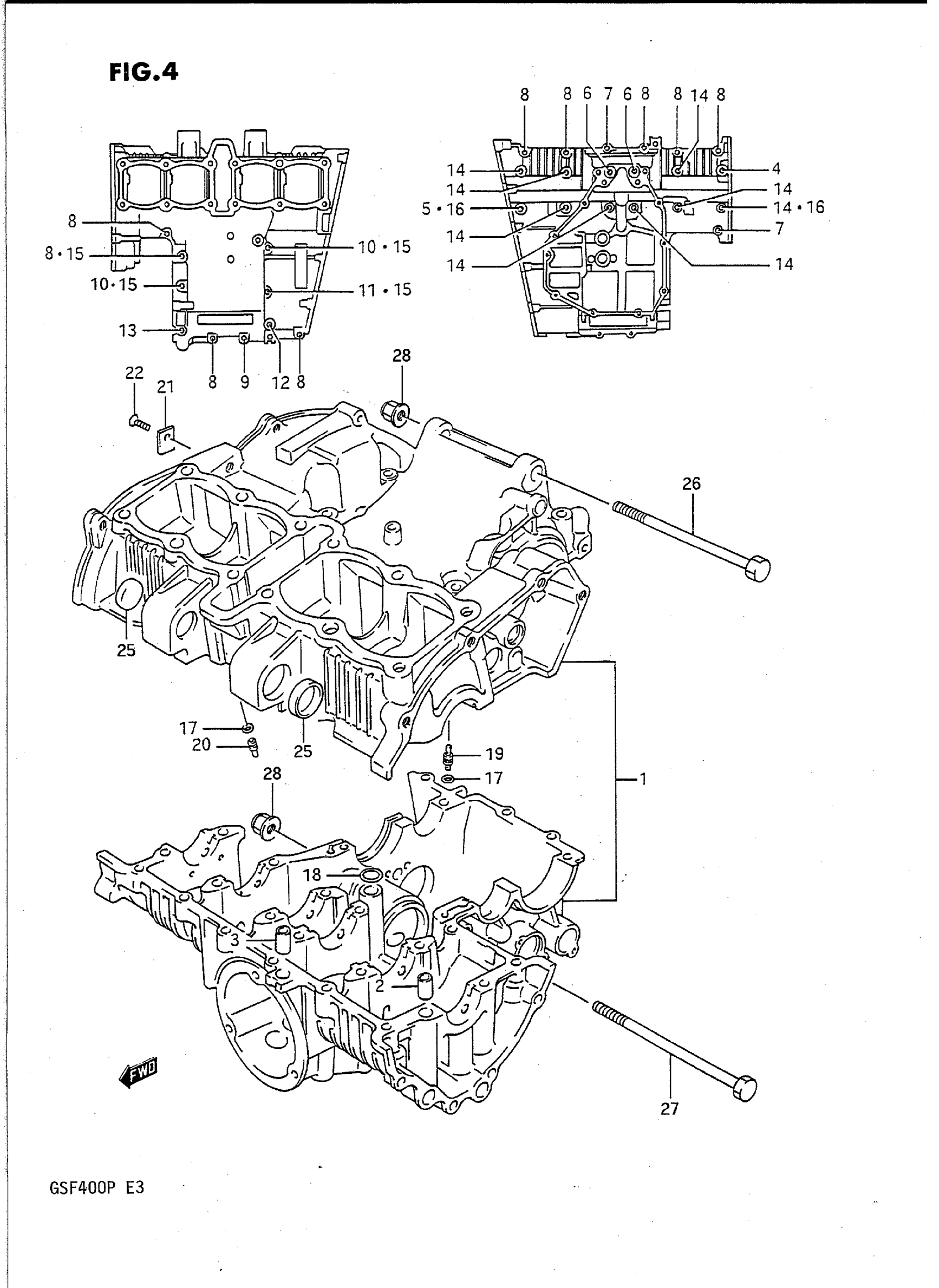

Suzuki GSF400P (1993) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 24

11300-10862

Unavailable

2

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

3

PIN (13X22)

09206-13004

$2.40

4

BOLT (8X110)

09103-08239

Unavailable

5

BOLT (8X105)

09103-08179

Unavailable

6

BOLT This part replaces 07110-08555.

07130-0855B

$4.77

7

BOLT This part replaces 01517-06305.

01550-0630A

$2.32

8

BOLT This part replaces 01517-06354.

01550-0635A

$2.32

9

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

10

BOLT This part replaces 01517-06555.

01550-0655B

$3.30

11

BOLT

01517-06655

Unavailable

12

BOLT This part replaces 01517-06705.

01550-0670B

$4.25

13

.BOLT This part replaces 01517-08555.

01550-0855A

$3.05

14

BOLT (8X95)

09103-08105

$3.87

15

GASKET

09168-06018

$1.77

16

GASKET (8.2X14X1)

09168-08016

$1.65

17

O RING (D:1.2,ID:4)

09280-04004

$1.91

18

O RING (D:1.9,ID:13)

09280-13004

$2.17

19

JET, OIL

09493-80005

$16.25

20

JET, OIL

09493-80007

Unavailable

21

PLATE, OIL GALLERY PLUG

11319-34200

Unavailable

22

SCREW

02122-06167

$1.49

23

BEARING, THRUST RH (GREEN) | SEE ILLUSTRATION ON FIG.7 (B-8)

12228-43414

$10.07

24

BEARING, THRUST LH (RED) | SEE ILLUSTRATION ON FIG.7 (B-8)

12228-43411

Unavailable

24

BEARING, THRUST LH (BLACK)

12228-43412

Unavailable

24

BEARING, THRUST LH (BLUE)

12228-43413

Unavailable

24

BEARING, THRUST LH (GREEN)

12228-43414

$10.07

24

BEARING, THRUST LH (YELLOW)

12228-43415

Unavailable

24

BEARING, THRUST LH (WHITE)

12228-43416

Unavailable

25

PLUG,ENG MTG,HO This part replaces 09241-25008.

09241-25005

$4.52

26

BOLT (10X135)

09103-10085

Unavailable

27

BOLT (10X145)

09103-10135

Unavailable

28

NUT, REAR SWGARM BRACKET This part replaces 09159-10044.

09159-10115

$3.55
