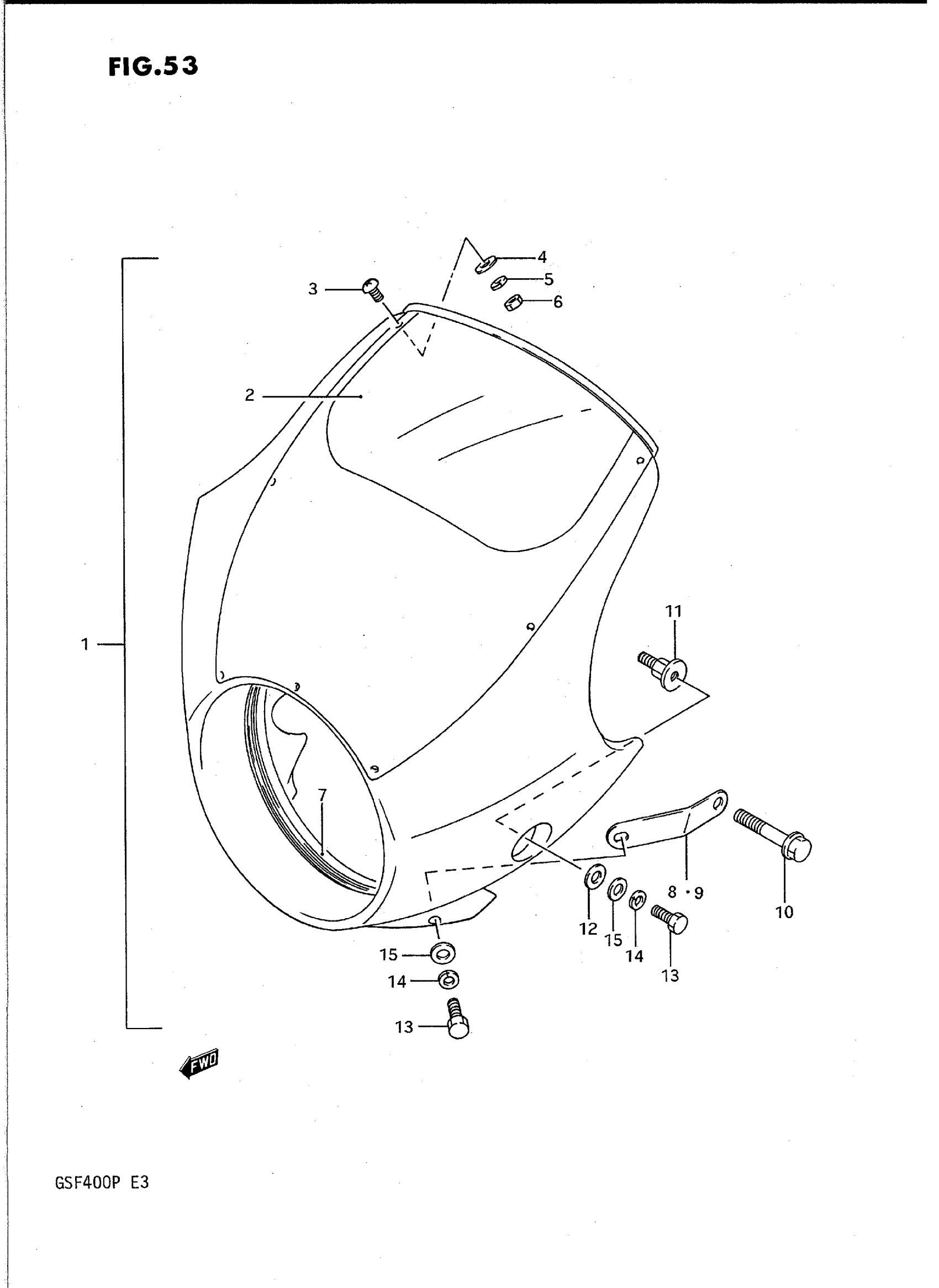

Suzuki GSF400P (1993) COWLING (OPTIONAL) Diagram

#

Description
Price

1

COWLING SET (BLACK) | MODEL M/N/P

94402-10D50-019

Unavailable

1

COWLING SET (BLUE) | MODEL M

94402-10D50-24V

Unavailable

1

COWLING SET (RED) | MODEL M/N

94402-10D50-07P

Unavailable

1

COWLING SET (GREEN) | MODEL N/P

94402-10D50-0WP

Unavailable

1

COWLING SET (RED) | MODEL P; Includes Item(s) 2 - 15

94402-10D50-1TY

Unavailable

2

SCREEN, WIND

94432-01D50

Unavailable

3

SCREW This part replaces 02142-04125.

02142-0412A

$1.50

4

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

5

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

6

NUT This part replaces 08310-11045.

08310-0004A

$2.30

7

MOLDING, HEADLAMP

94433-10D50

Unavailable

8

BRACE, RH

94451-10D50

Unavailable

9

BRACE, LH

94452-10D50

Unavailable

10

BOLT This part replaces 01517-10508.

01550-10507

$4.04

11

BOLT, HEADLAMP

94741-01D50

Unavailable

12

WASHER This part replaces 09160-06006.

09160-06084

$1.78

13

BOLT

01204-06167

$1.98

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER This part replaces 08322-21067.

08322-01067

$2.13
