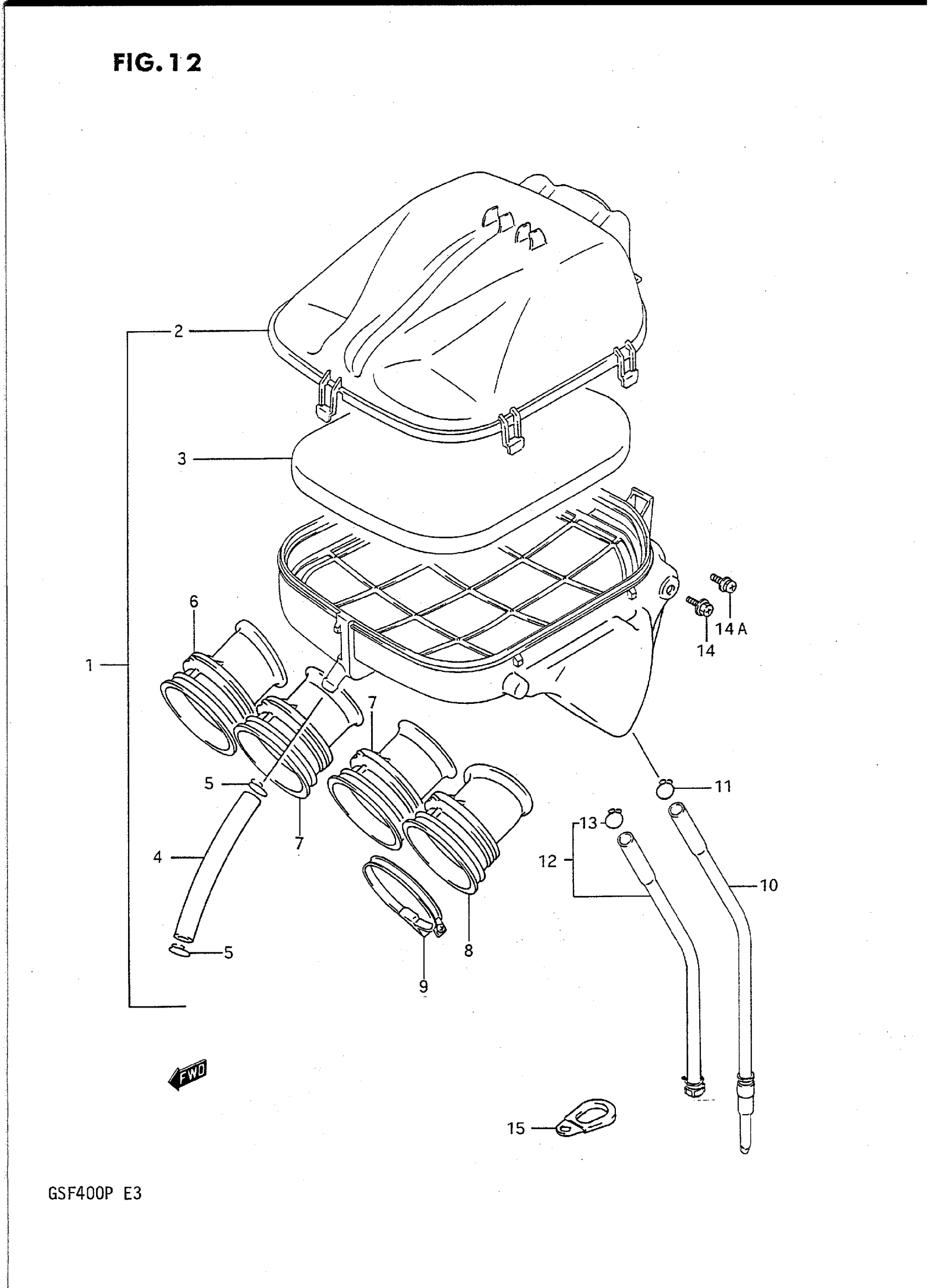

Suzuki GSF400P (1993) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 13700-10D00.

13700-10D10

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P; Includes Item(s) 2 - 13 This part replaces 13700-10D02.

13700-10D10

Unavailable

2

CAP, AIR CLEANER | FOR 13700-10D00 This part replaces 13740-34C00.

13740-34C01

Unavailable

2

CAP, AIR CLEANER | FOR 13700-10D02

13740-34C01

Unavailable

3

FILTER,AIR CLEA This part replaces 13781-34C00.

13781-34C10

$25.93

4

HOSE, AIR VENT (L:600!190) | FOR 13700-10D00 This part replaces 13853-34C00.

09355-11165-600

$15.65

4

HOSE | FOR 13700-10D02 This part replaces 13853-10D00.

09352-11154-600

$13.05

5

CLIP

09401-14301

$2.35

6

TUBE, OUTLET NO.1 | RH

13881-10D00

Unavailable

7

TUBE, OUTLET NO.2 | ML,MR

13882-34C00

Unavailable

8

TUBE, OUTLET NO.4 | LH

13884-10D00

Unavailable

9

CLAMP This part replaces 13826-34C00.

09402-62208

$6.58

10

TUBE,DRAIN | FOR 13700-10D00 This part replaces 13870-11477.

13870-11459

$15.51

11

CLIP | FOR 13700-10D00 This part replaces 13824-00A00.

09401-13409

$2.12

12

TUBE,DRAIN | FOR 13700-10D02 This part replaces 13870-10D00.

13870-11459

$15.51

13

CLIP | FOR 13700-10D02

09401-14301

$2.35

14

BOLT (6X16)

09118-06088

Unavailable

14A

SCREW This part replaces 02112-76168.

02112-7616A

$2.12

15

PLATE, DRAIN TUBE GUIDE

13721-32C00

Unavailable
