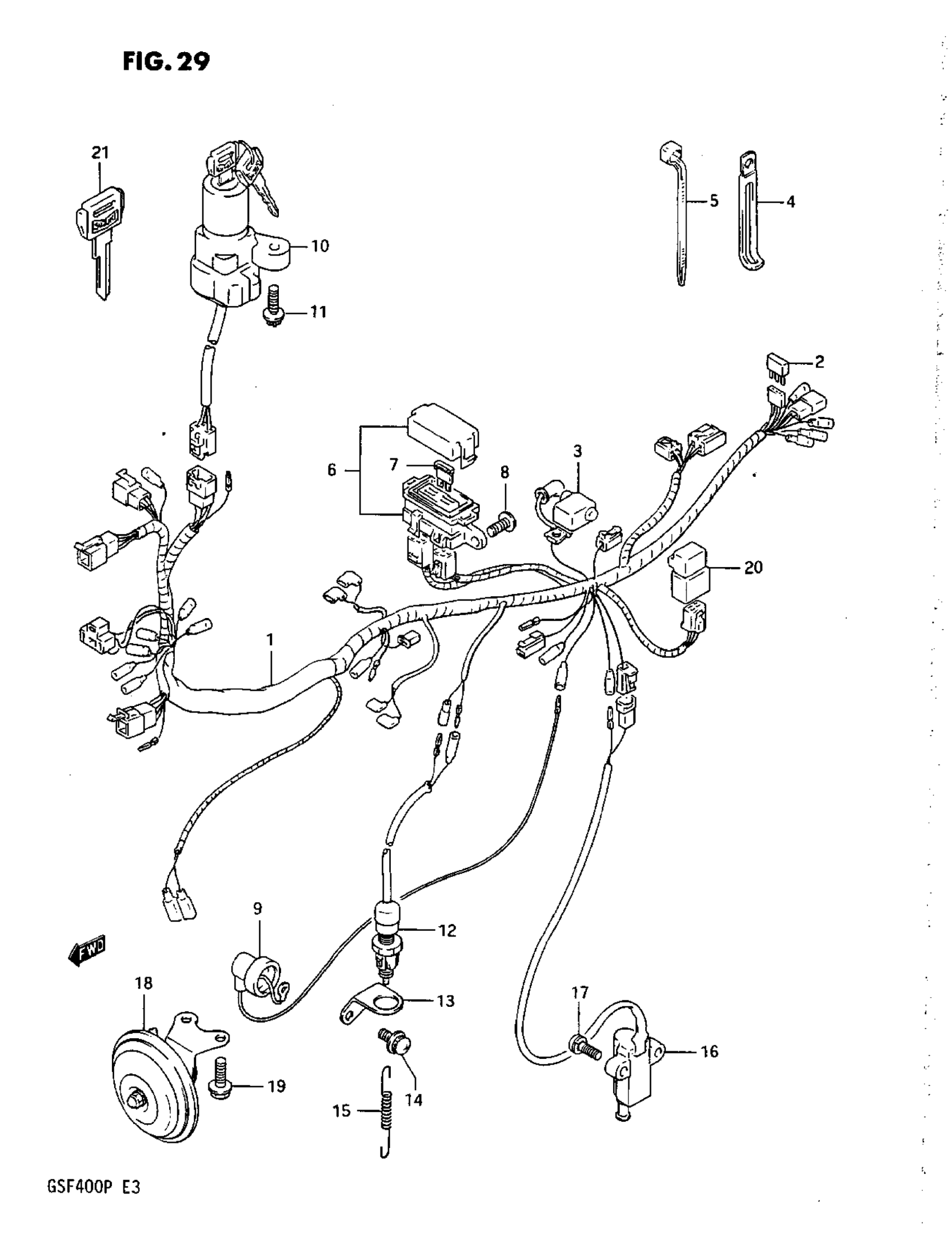

Find the part on the Wiring Harness diagram for your 1993 Suzuki GSF400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSF400 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 36610-10D30.

36610-10D42

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY, MODEL M/N This part replaces 36610-10D21.

36610-10D42

1
Out of stock

1

HARNESS, WIRING | MODEL P

36610-33D30

1
Out of stock

1

HARNESS, WIRING | CALIFORNIA ONLY, MODEL P

36610-33D40

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CAP, BATTERY (+)

33624-10D00

1
Out of stock

4

CLAMP This part replaces 09404-06403.

09404-06039

1
Out of stock

4

CLAMP This part replaces 09404-06412.

09404-06039

1
Out of stock

4

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

4

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

1
Out of stock

4

CLAMP

09404-06420

2
Out of stock

4

CLAMP This part replaces 09404-08404.

09404-08420

2
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 09404-10405.

09404-10418

1
Out of stock

5

CLAMP (L:100) This part replaces 09407-10401.

09407-10404

1
Out of stock

5

CLAMP

09407-10403

1
Out of stock

5

CLAMP

09407-10404

1
Out of stock

5

CLAMP (L:125)

09407-14403

4
Out of stock

5

CLAMP This part replaces 09407-14410.

09407-17402

1
Out of stock

5

CLAMP (L:165)

09407-18402

4
Out of stock

6

FUSE BOX ASSY This part replaces 36740-34C01.

36740-10D10

1
Out of stock

7

FUSE (10A)

09481-10101

3
Out of stock

7

.FUSE (25A) This part replaces 09481-25101.

09481-25103

1
Out of stock

8

SCREW This part replaces 02142-06166.

02142-0616A

2
Out of stock

9

WIRE,OIL PRESSU This part replaces 36851-10D00.

36851-46E01

1
Out of stock

10

LOCK ASSY, STEERING | MODEL M This part replaces 37100-17C02.

37100-26D03

1
Out of stock

10

LOCK ASSY, STEERING | MODEL N/P This part replaces 37100-33D00.

37100-26D03

1
Out of stock

11

SCREW

09139-06026

2
Out of stock

12

SWITCH ASSY, STOP LAMP This part replaces 37740-14A00.

37740-04A10

1
Out of stock

13

BRACKET, SWITCH

43251-10D00

1
Out of stock

14

SCREW

02112-76088

1
Out of stock

15

SPRING

09443-06012

1
Out of stock

16

SWITCH ASSY,SID This part replaces 37840-48B21.

37840-12X52

1
Out of stock

17

BOLT This part replaces 01517-06204.

01550-0620A

2
Out of stock

18

NO DESCRIPTION AVAILABLE | MODEL M/N This part replaces 38500-10D00.

38500-47D01

1
Out of stock

18

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 38500-11D00.

38500-47D01

1
Out of stock

19

BOLT This part replaces 01117-06165.

01550-0616A

2
Out of stock

20

RELAY ASSY, SIDE STAND This part replaces 38740-24B10.

38740-24X50

1
Out of stock

21

KEY, BLANK | OPT, MODEL M/N This part replaces 37146-03A80.

37146-26D10

1
Out of stock

21

KEY, BLANK | OPT, MODEL P

37146-26D10

1
Out of stock
