1993 Suzuki GSF400 Headlamp Diagram

← All diagrams

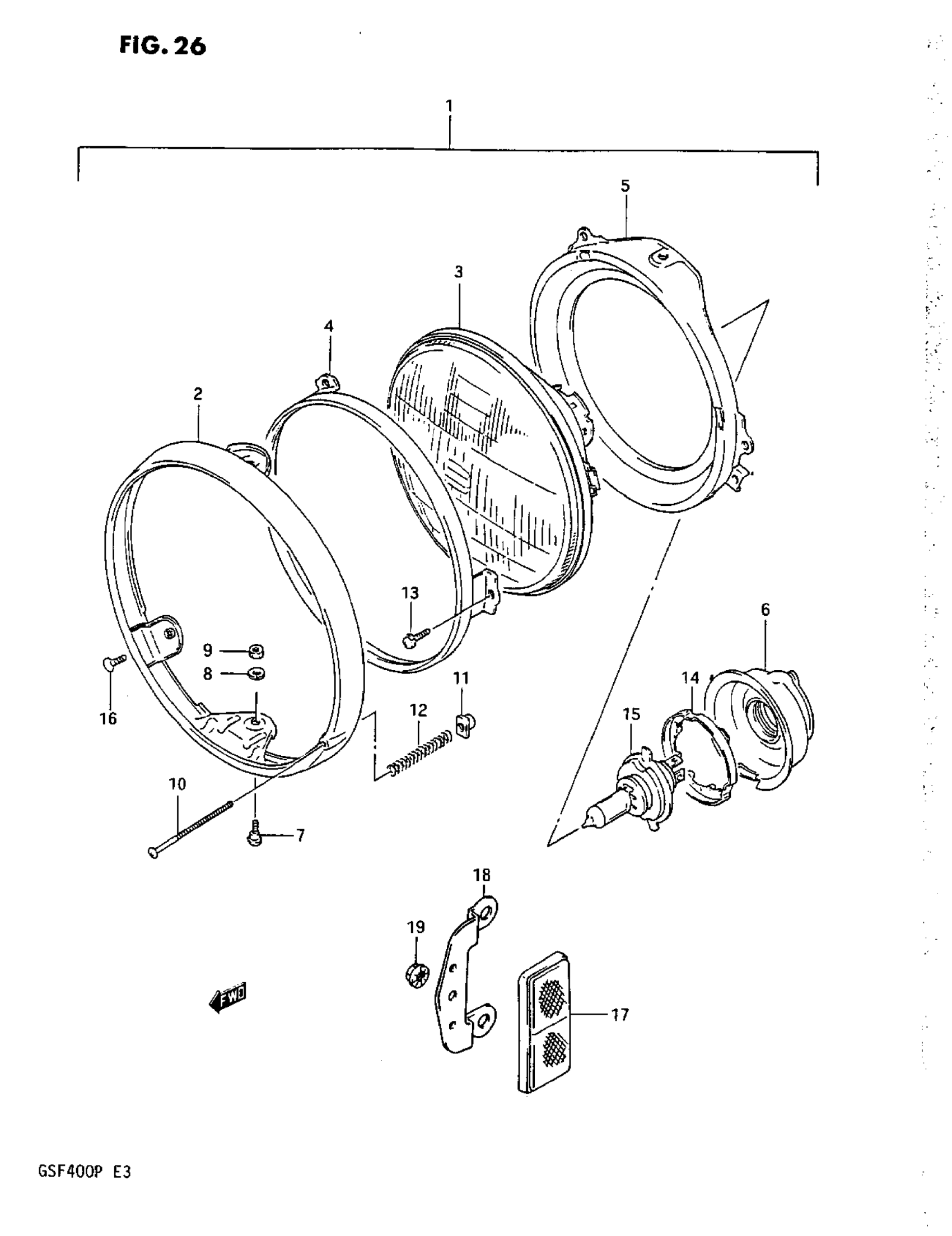

Find the part on the Headlamp diagram for your 1993 Suzuki GSF400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSF400 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD LAMP ASSY

35100-01D30

1
Out of stock

2

RIM

35111-01D20

1

$81.93

In stock

3

LAMP UNIT

35121-34430

1
Out of stock

4

RING

35127-45030

1
Out of stock

5

RING, MOUNTING

35130-45030

1
Out of stock

6

1

$20.33

In stock

7

SCREW

35181-15611

2

$3.80

In stock

8

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

9

NUT This part replaces 08310-11056.

08310-0005A

2
Out of stock

10

1

$3.74

In stock

11

NUT

35152-15611

1

$3.67

In stock

12

SPRING

35154-31900

1

$6.00

In stock

13

3

$1.42

In stock

14

SETTER, BULB

35136-34400

1
Out of stock

15

1

$31.54

In stock

16

2

$1.75

In stock

17

REFLECTOR, FRONT SIDE

35950-43431

2

$20.13

In stock

18

BRACKET

35956-10D00

2
Out of stock

19

2

$2.39

In stock
