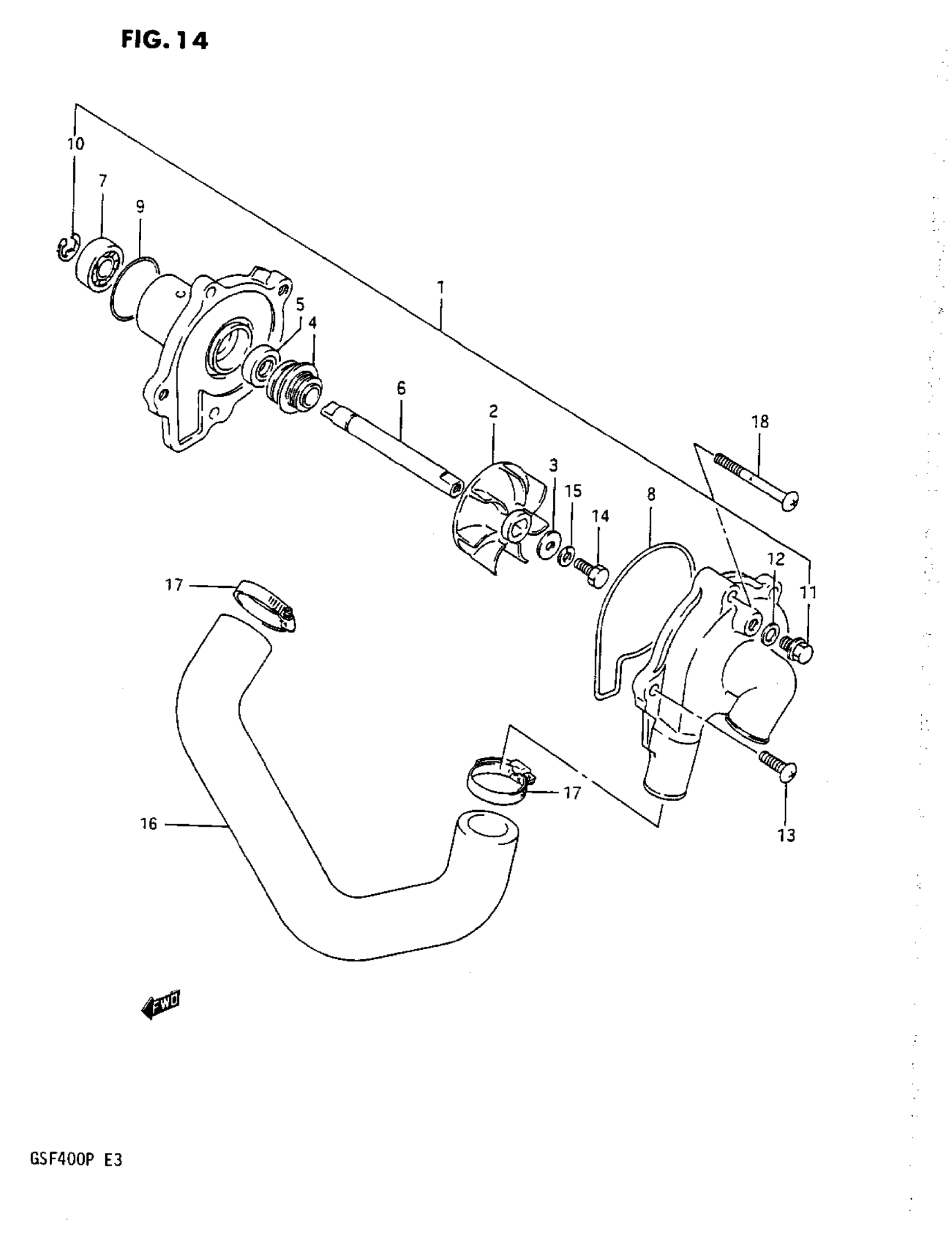

Suzuki GSF400 (1993) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER | MODEL M/N This part replaces 17400-10D00.

17400-32C03

$292.98

1

PUMP ASSY,WATER | MODEL P This part replaces 17400-10D01.

17400-32C03

$292.98

2

VATER PUMP

17491-16700

Unavailable

3

GASKET

09168-06025

$2.92

4

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

$29.22

5

.SEAL OIL (10X21X5) This part replaces 17461-38A00.

09283-10004

$4.96

6

SHAFT, WATER PUMP

17511-30B00

Unavailable

7

BEARING (10X26X8) This part replaces 17451-38A00.

09262-10014

$16.01

8

O-RING

17418-38400

$5.50

9

.O-RING

17435-33400

$15.29

10

.E-RING This part replaces 08332-11086.

08332-1108A

$1.78

11

BOLT, DRAIN

17415-14300

$2.99

12

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

13

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

14

BOLT (6X13)

09100-06099

$2.00

15

LOCK WASHER

09164-06006

$2.61

16

HOSE, WATER PUMP OUTLET

17858-10D00

Unavailable

17

CLAMP This part replaces 09402-30502.

09402-32511

$10.86

18

SCREW This part replaces 02112-06455.

02112-0645B

$2.19
