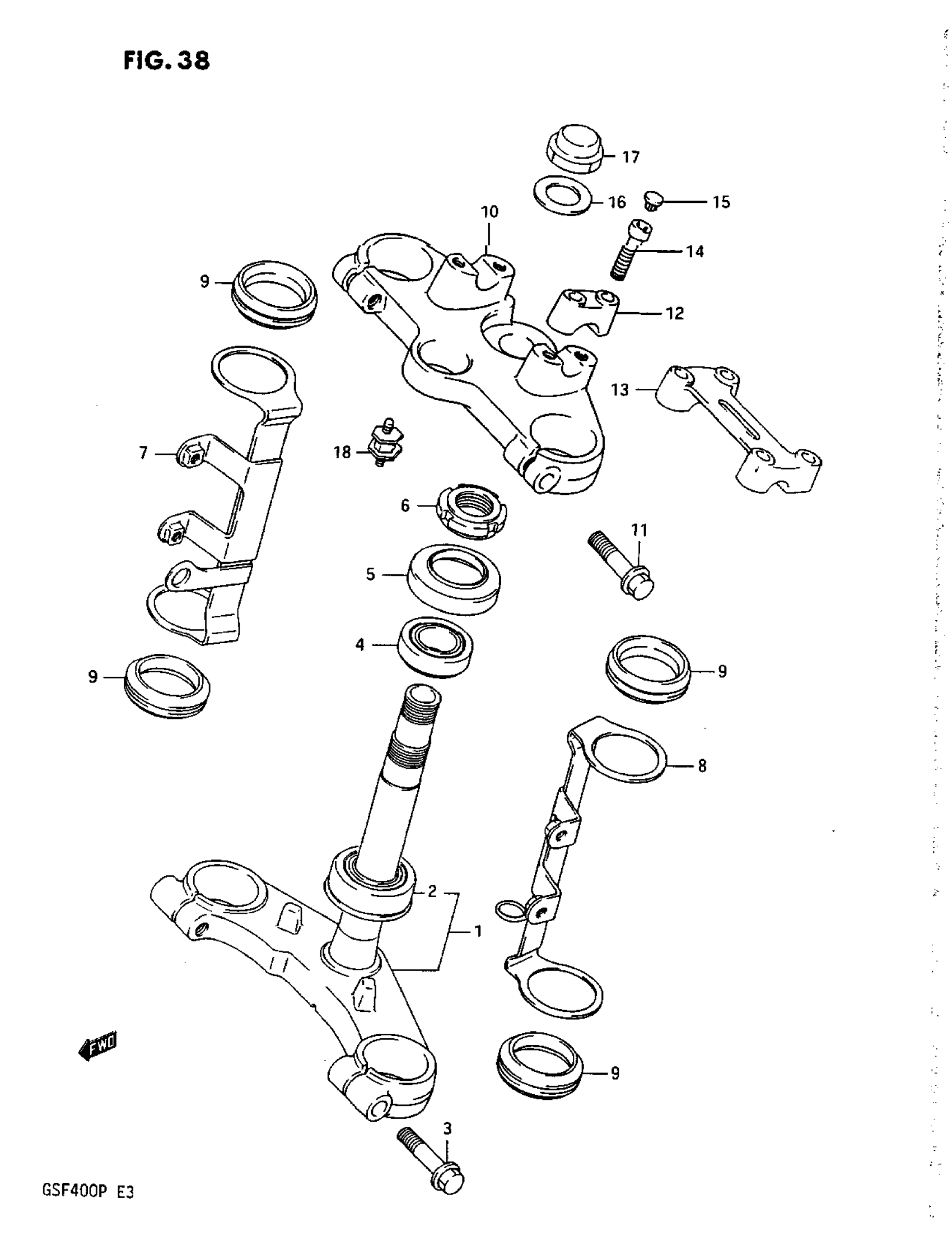

Suzuki GSF400 (1993) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | MODEL M This part replaces 51410-10D01-0FP.

51410-10DB2

Unavailable

1

STEM, STEERING | MODEL N This part replaces 51410-10DB0-0FP.

51410-10DB2

Unavailable

1

STEM, STEERING | MODEL P

51410-10DB2

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT This part replaces 01517-10458.

01550-1045B

$4.77

4

BEARING (25X47X15)

09265-25008

Unavailable

5

SEAL,DUST | MODEL M/N This part replaces 51643-40502.

51643-40503

$6.15

5

SEAL, STEERING DUST | MODEL P This part replaces 51643-49001.

51643-49002

$12.32

6

NUT, STEERING STEM

51631-28000

$17.37

7

BRACKET, HOUSING RH

51530-10D20

Unavailable

8

BRACKET, HOUSING LH

51540-10D20

Unavailable

9

DAMPER,HEADLAMP This part replaces 51553-38C00.

51553-38C01

$8.73

10

HEAD, STEERING STEM

51311-11D10

Unavailable

11

BOLT This part replaces 01517-10458.

01550-1045B

$4.77

12

HOLDER, HANDLE (SILVER) | MODEL M

56211-11D10-0FP

Unavailable

13

HOLDER, HANDLE (SILVER) | MODEL N/P

56211-10DE0-0FP

Unavailable

14

BOLT This part replaces 07110-08307.

07130-08307

$3.89

15

CAP

09250-06011

$2.50

16

WASHER This part replaces 51356-06C00.

51356-10D03

$7.50

17

NUT, CAP

51353-24B00

$30.67

18

STOPPER, METER CUSHION

17788-10D00

Unavailable
