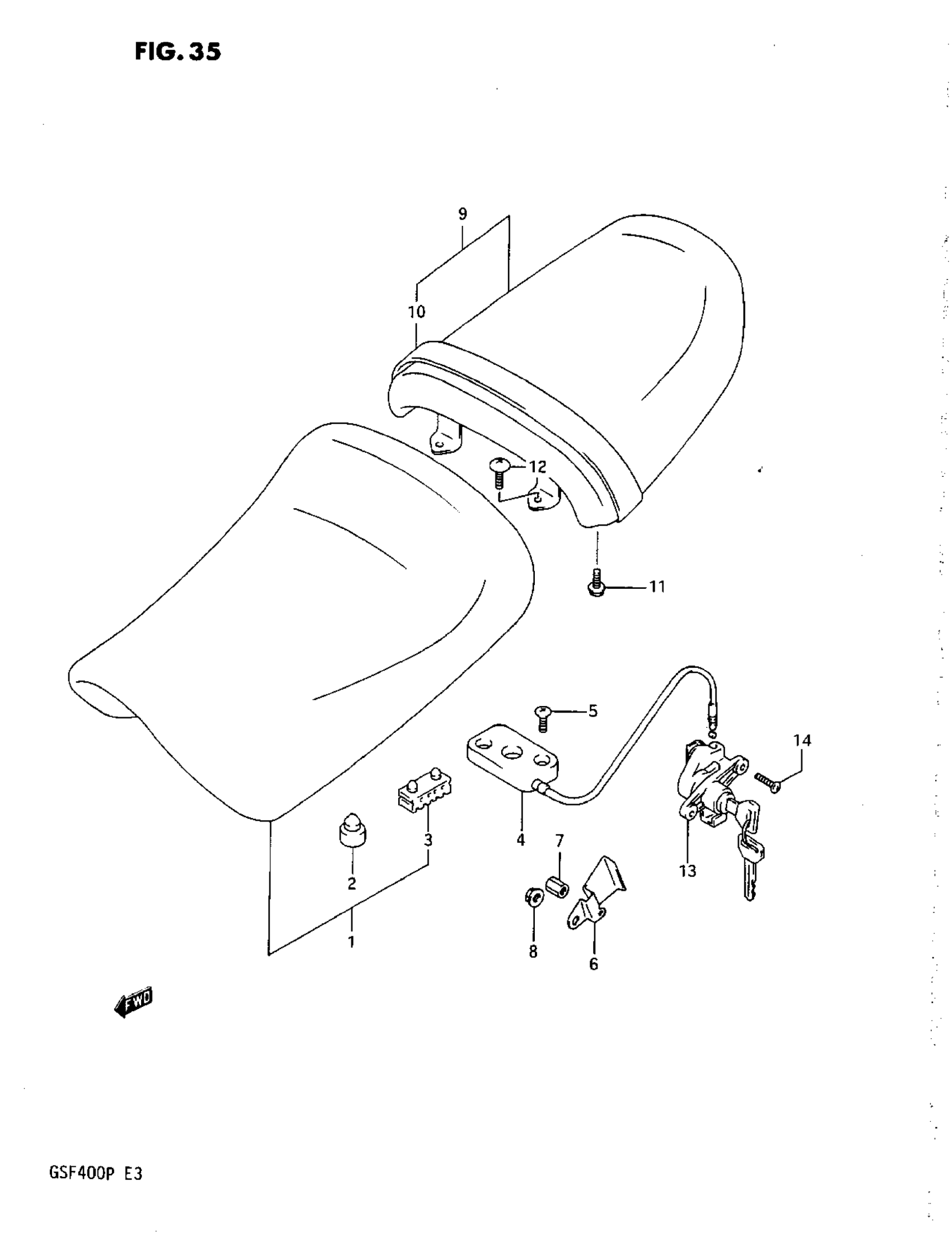

Suzuki GSF400 (1993) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45100-10D00-6BY.

45100-10D01-6BY

Unavailable

2

CUSHION

09321-10011

$2.91

3

CUSHION

45149-31300

$3.56

4

BRACKET, SEAT SUPPORT

45220-10D00

Unavailable

5

SCREW | MODEL M/N This part replaces 02122-06205.

02122-0620A

$1.49

5

SCREW | MODEL P This part replaces 02122-06206.

02122-0620A

$1.49

6

PLATE, SEAT LOCK CABLE

45288-10D00

Unavailable

7

NUT

09159-06030

Unavailable

8

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

9

SEAT ASSY, PILLION (BLACK)

45300-10D00-6BY

Unavailable

10

BAND, SEAT (BLACK)

45180-10D00-6BY

Unavailable

11

BOLT

01517-06166

Unavailable

12

SCREW

09139-06027

$2.16

13

LOCK SET,SEAT H This part replaces 95700-10833.

95700-10835

$126.00

14

SCREW

09139-06048

$2.14
