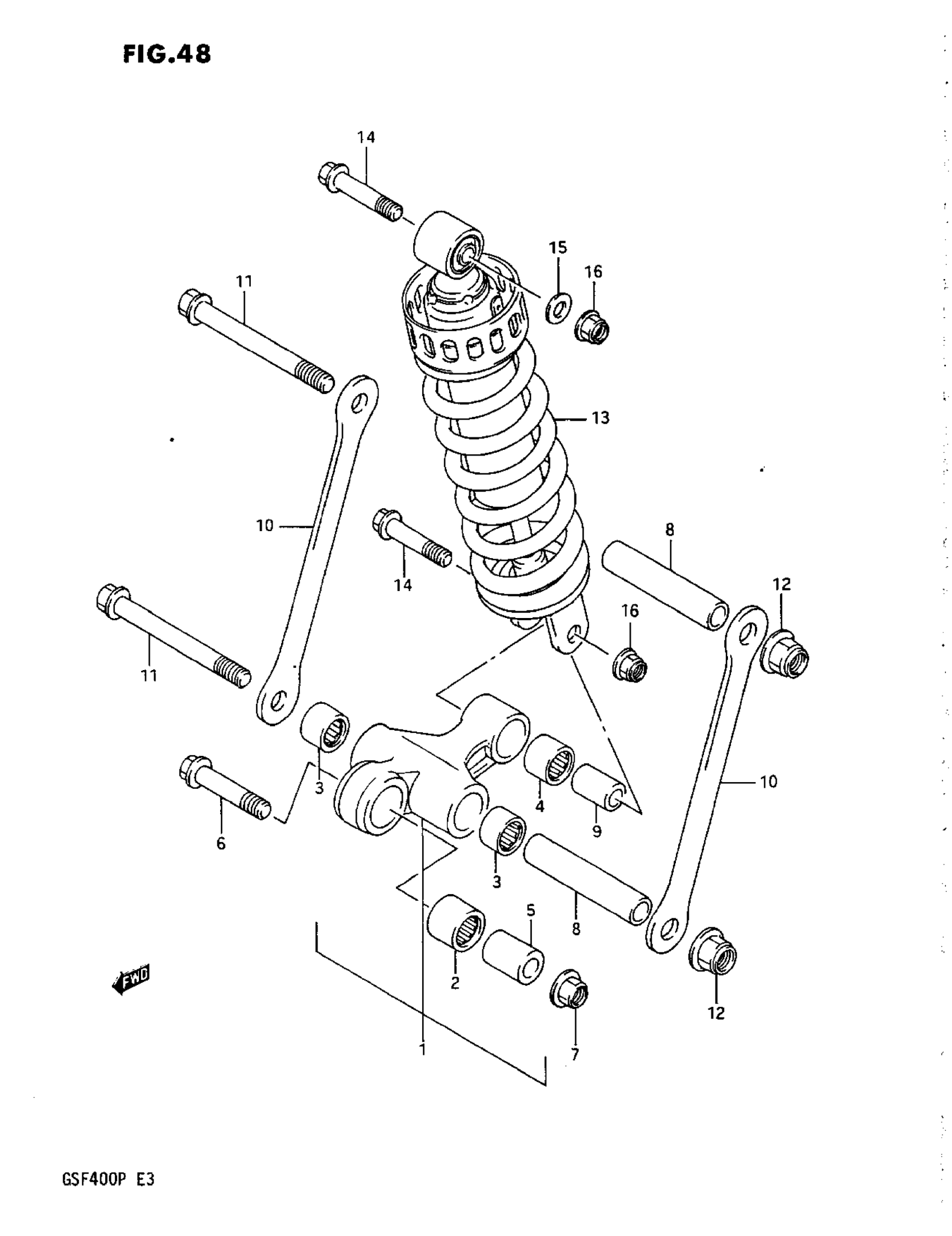

Suzuki GSF400 (1993) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-33871

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, RR CUSHION LEVER RR This part replaces 62684-05C00.

62684-01D00

$19.37

6

BOLT, LOWER This part replaces 62668-30B00.

62668-42A02

$10.67

7

NUT This part replaces 08319-31128.

08319-3112A

$3.76

8

SPACER (12X17X85)

09180-12122

$23.05

9

SPACER, REAR

62684-40A10

$12.15

10

ROD, REAR CUSHION LEVER

62641-32C00

Unavailable

11

BOLT (12X115)

09103-12037

$13.53

12

NUT This part replaces 08319-31128.

08319-3112A

$3.76

13

ABSORBER ASSY,R | MODEL M This part replaces 62100-10D30.

62100-10DB2

Unavailable

13

ABSORBER ASSY,R | MODEL N This part replaces 62100-10DB0.

62100-10DB2

Unavailable

13

ABSORBER ASSY,R | MODEL P This part replaces 62100-10DB1.

62100-10DB2

Unavailable

14

BOLT (L:52)

09103-10197

Unavailable

15

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

16

NUT This part replaces 08319-31105.

08319-3110A

$2.73
