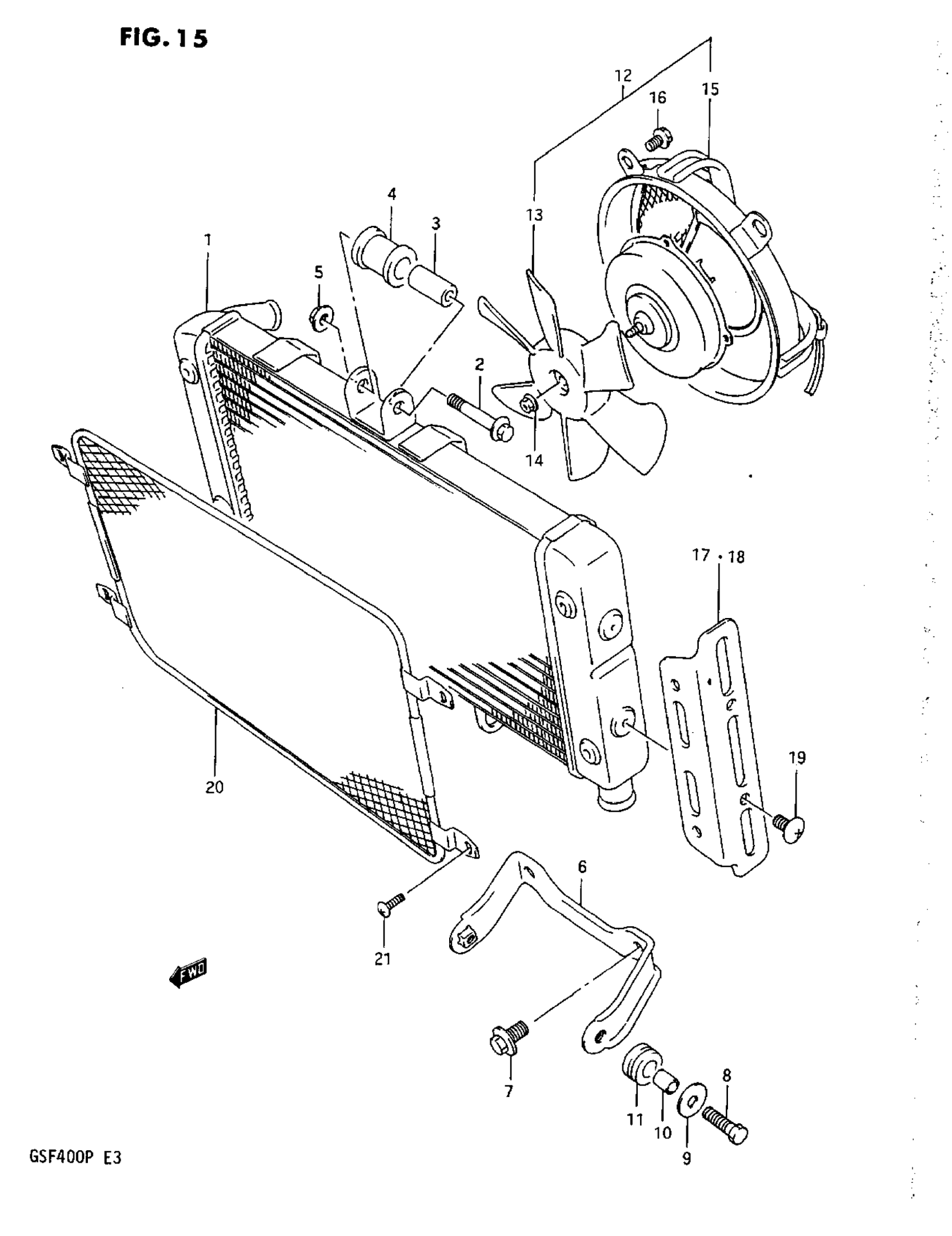

Suzuki GSF400 (1993) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-10D00

Unavailable

2

BOLT This part replaces 01517-06455.

01550-0645A

$2.41

3

NO DESCRIPTION AVAILABLE This part replaces 09180-06216.

09180-06313

Unavailable

4

CUSHION

09320-12051

Unavailable

5

NUT This part replaces 08316-16064.

08316-1006B

$2.50

6

BRACKET, RADIATOR LOWER

17741-10D00

Unavailable

7

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

8

BOLT This part replaces 01517-06204.

01550-0620A

$1.97

9

WASHER This part replaces 09160-06063.

09160-06054

$1.62

10

SPACER This part replaces 09180-06213.

09180-06290

$2.35

11

CUSHION

09320-10042

$3.12

12

FAN ASSY, RADIATOR

17780-10D10

Unavailable

13

FAN ASSY

17820-10D00

Unavailable

14

NUT This part replaces 08316-26066.

08316-1006B

$2.50

15

NO DESCRIPTION AVAILABLE This part replaces 17770-10D10.

17770-10D20

Unavailable

16

BOLT This part replaces 01517-06108.

01550-06107

$2.80

17

COVER, RADIATOR RH

17761-10D01

Unavailable

18

COVER, RADIATOR LH

17762-10D01

Unavailable

19

SCREW (6X12)

09139-06027

$2.16

20

NET, RADIATOR | MODEL M/N This part replaces 17790-10D01.

17790-10D02

Unavailable

20

NET, RADIATOR | MODEL P

17790-10D02

Unavailable

21

SCREW (4X12)

09125-04024

Unavailable
